Dr-1A: Checking Fault Codes

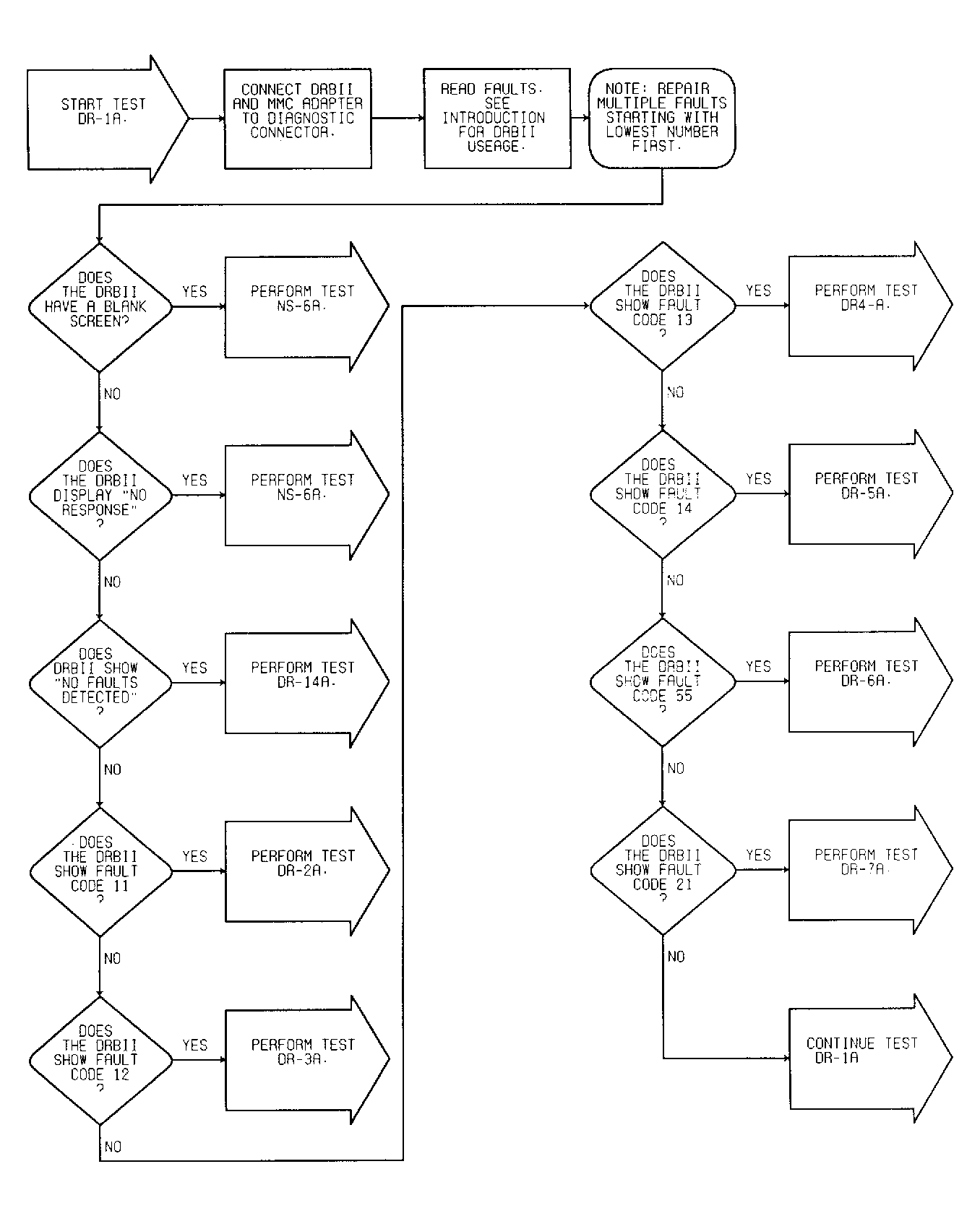

Fig 1: Test DR-1A Flow Chart (1 Of 2) Checking Fault Codes

G92F25986

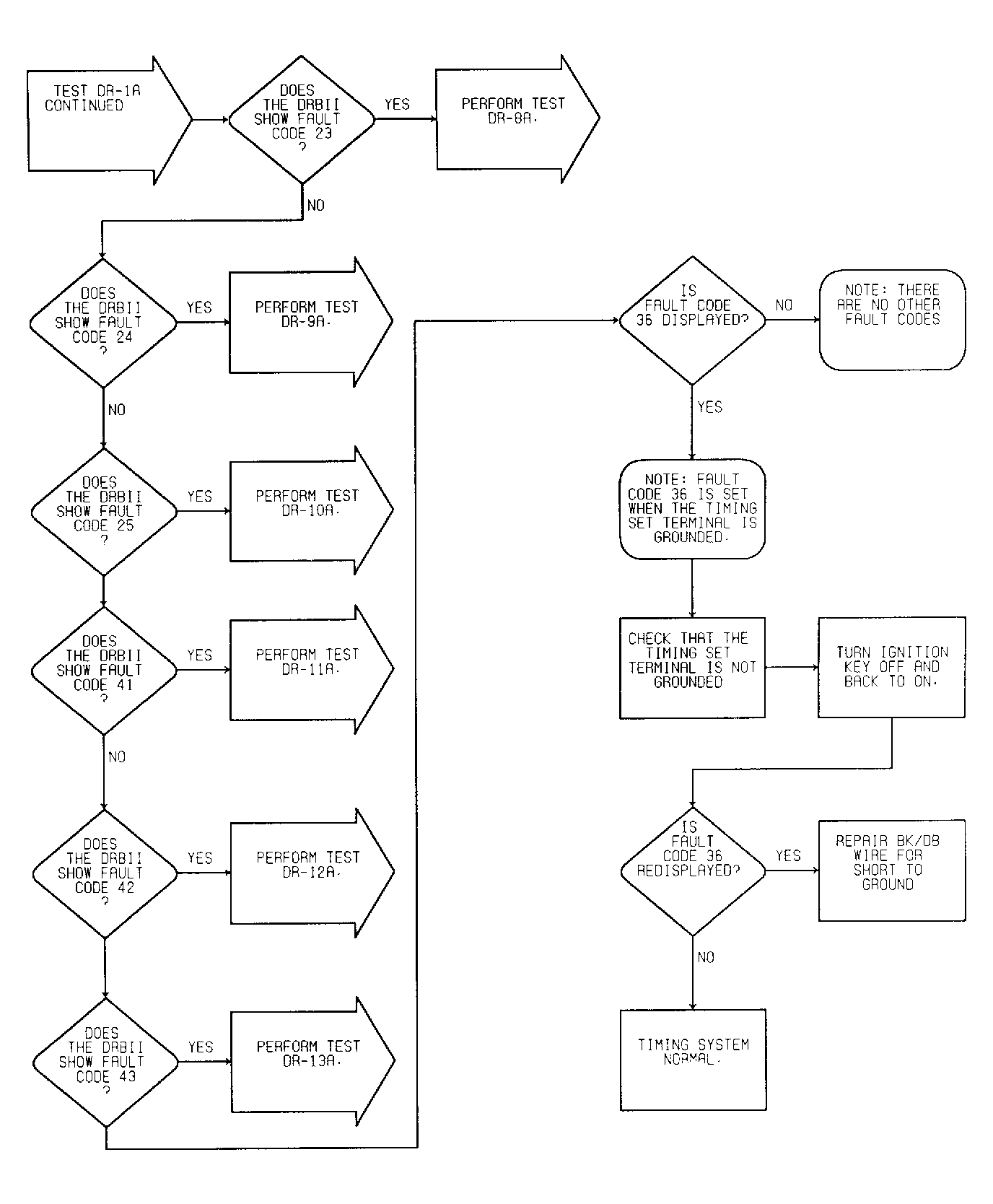

Fig 2: Test DR-1A Flow Chart (2 Of 2) Checking Fault Codes

G92G25987
