Dr-15A: No Fault Code Sensor Tests

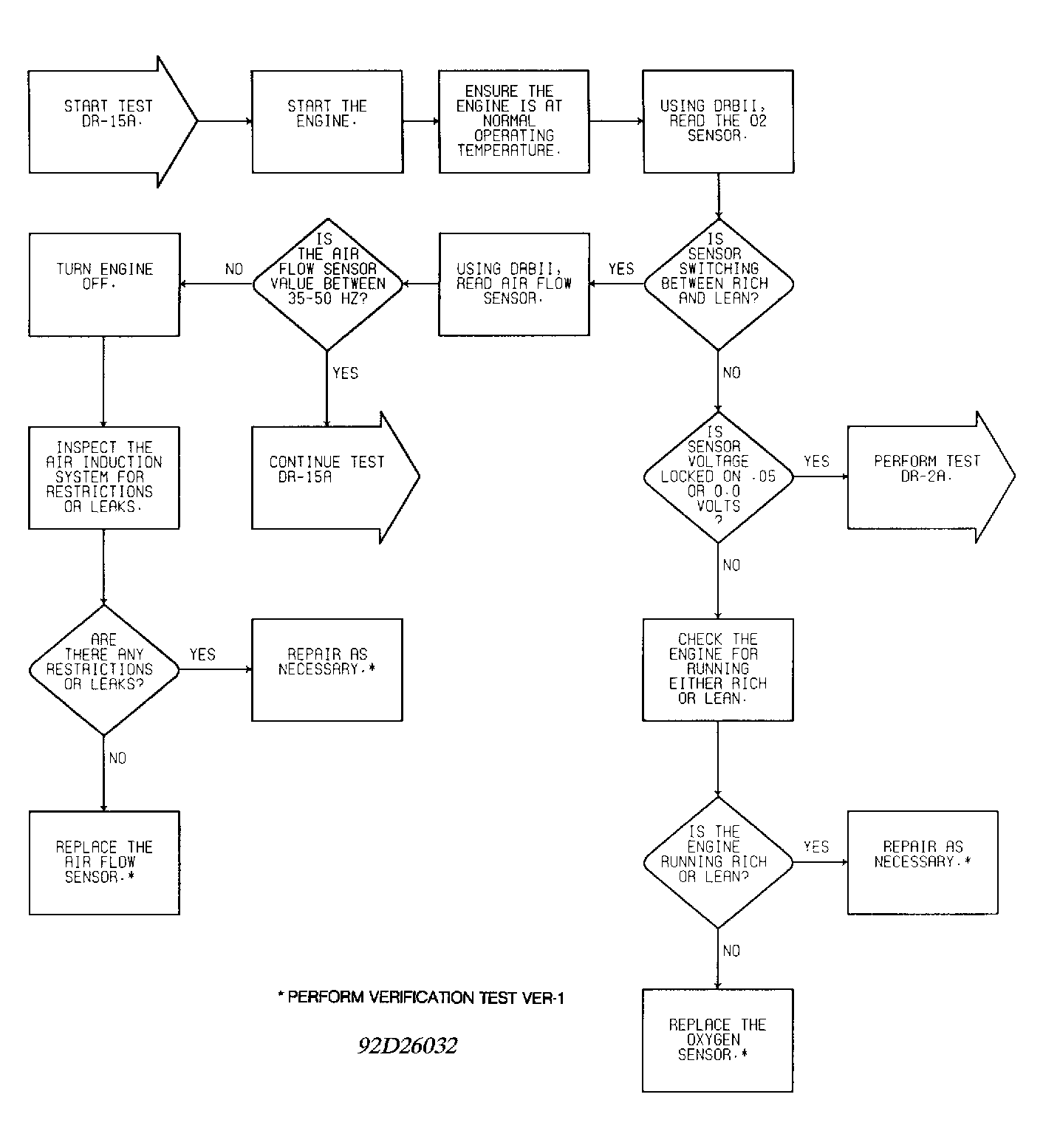

Fig 1: Test DR-15A Flow Chart (1 Of 3) No Fault Code Sensor Tests
G92D26032

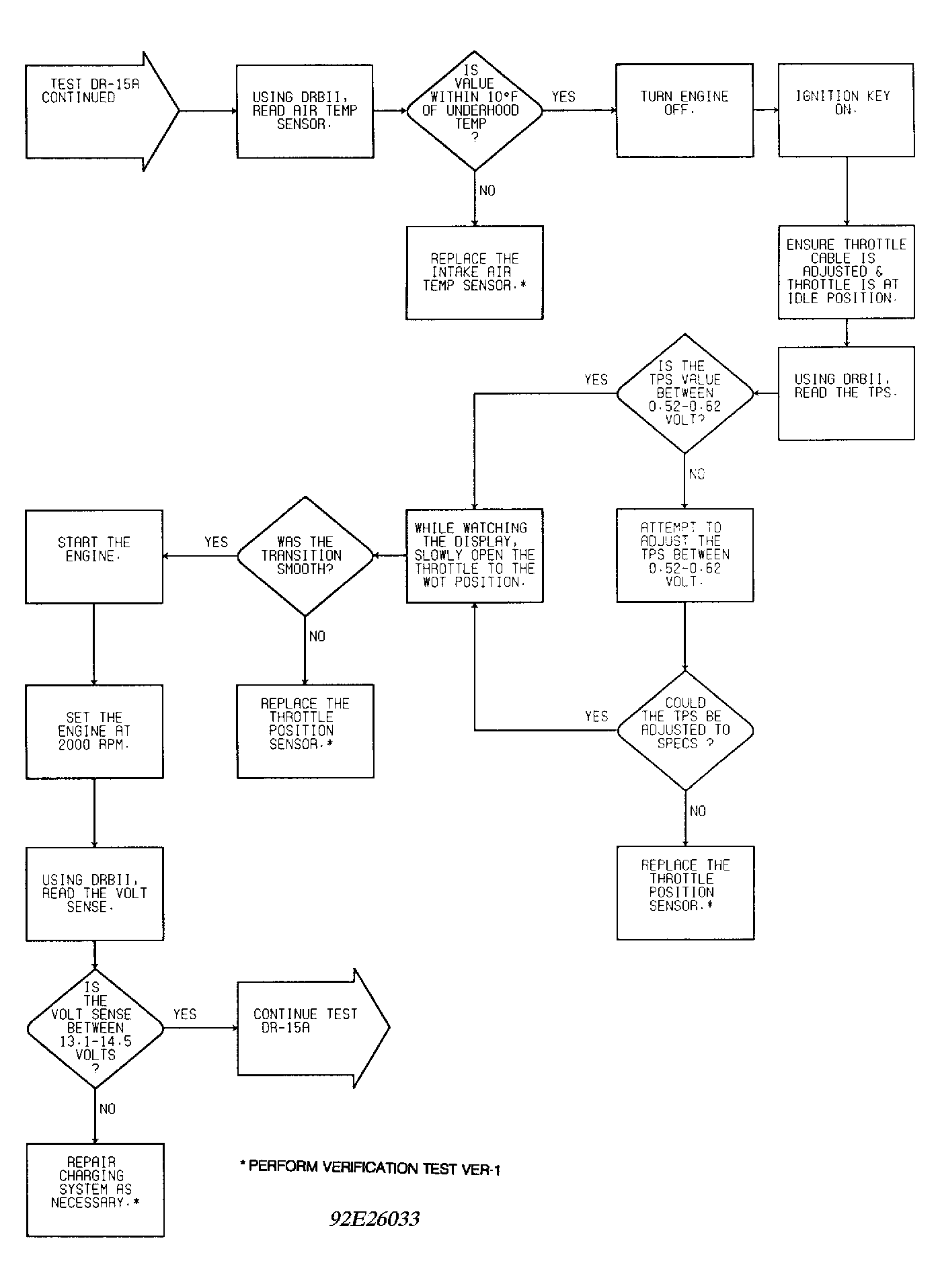

Fig 2: Test DR-15A Flow Chart (2 Of 3) No Fault Code Sensor Tests
G92E26033

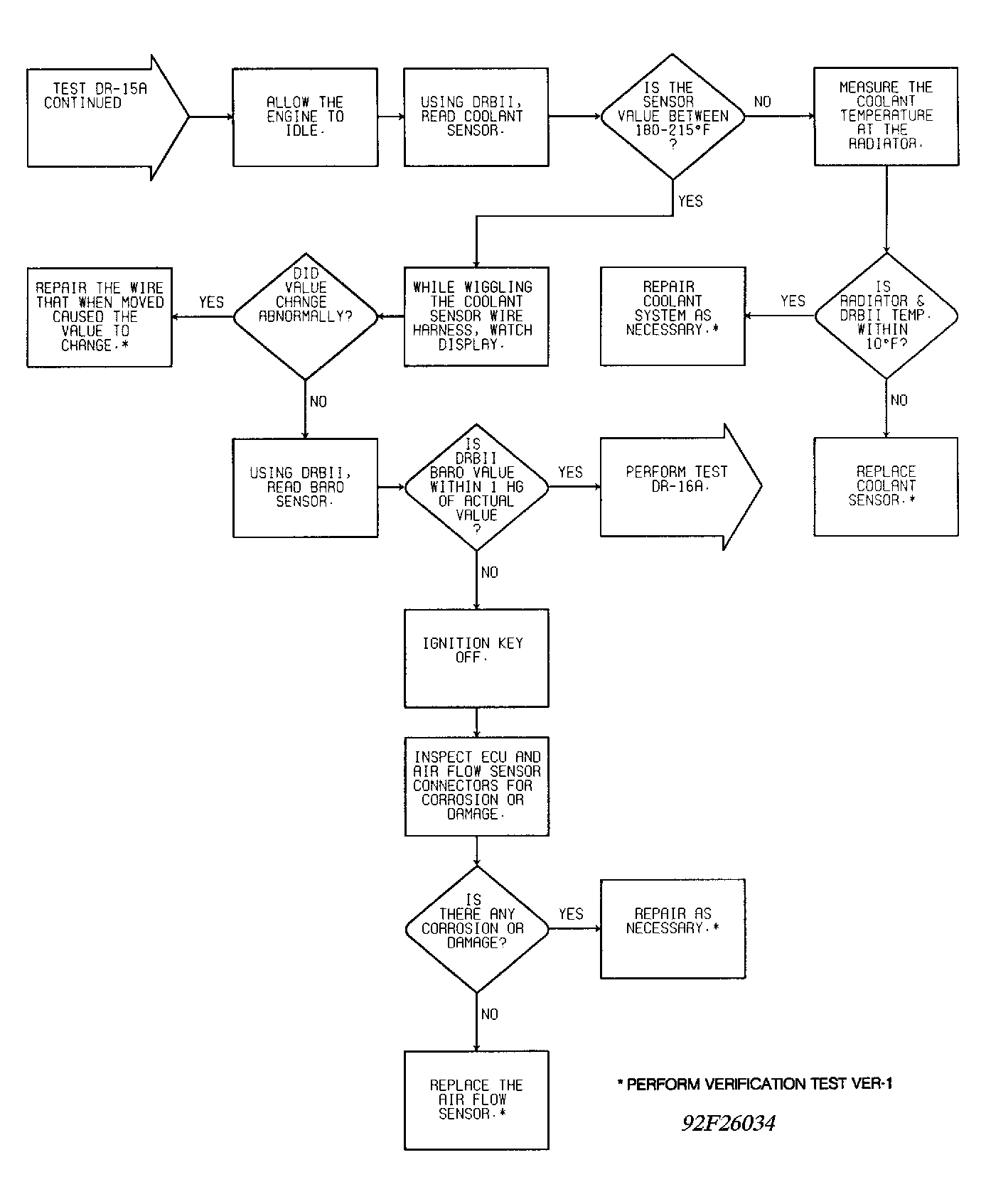

Fig 3: Test DR-15A Flow Chart (3 Of 3) No Fault Code Sensor Tests
G92F26034
