Dr-16A: Testing Fuel Injector Circuits
Dr-16A: Testing Fuel Injector Circuits

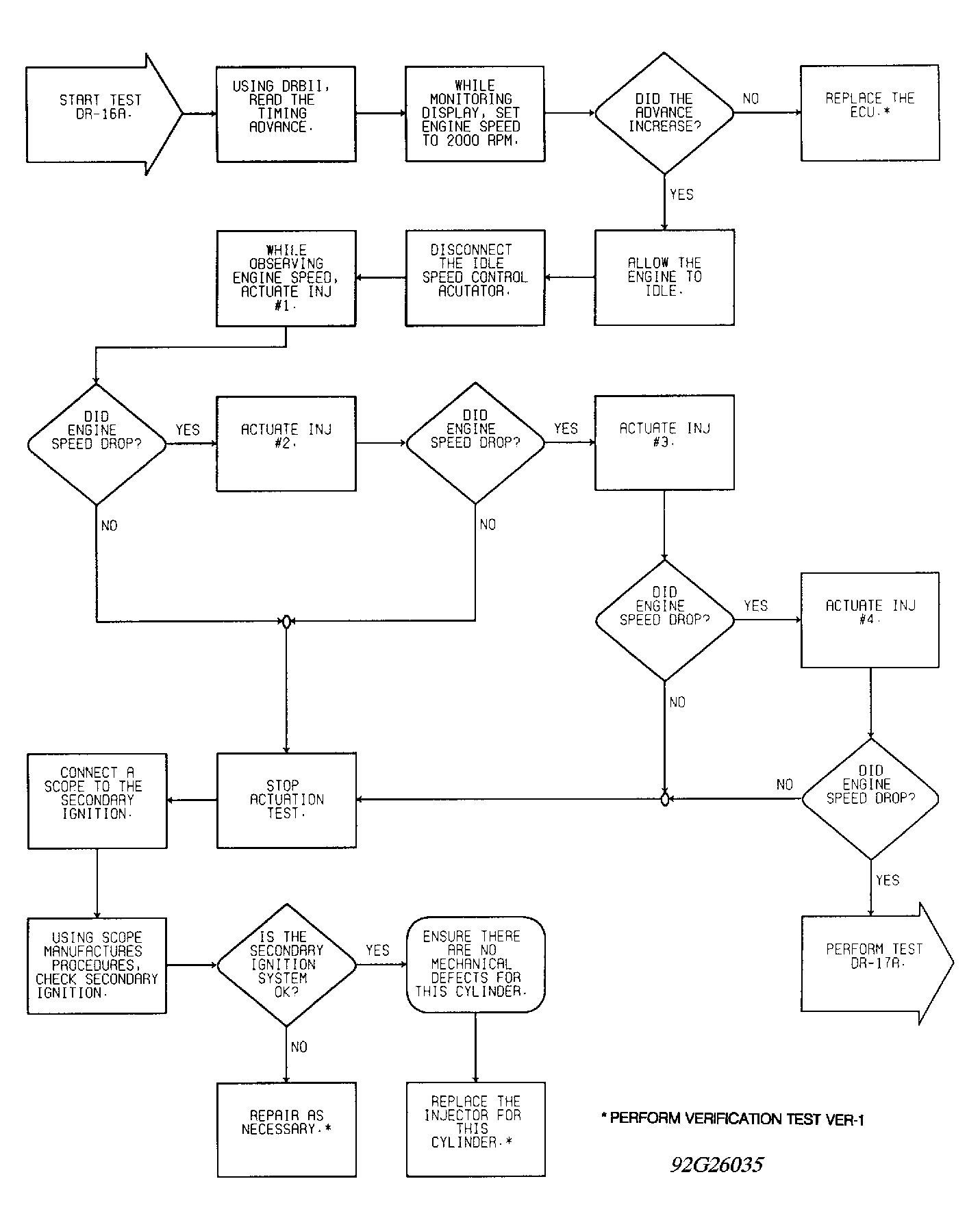

Fig 1: Test DR-16A Flow Chart Testing Fuel Injector Circuits
