LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
1992
>>
Expo Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Door Locks
>>
Component Tests
>>
Door Lock Control Unit
Door Lock Control Unit

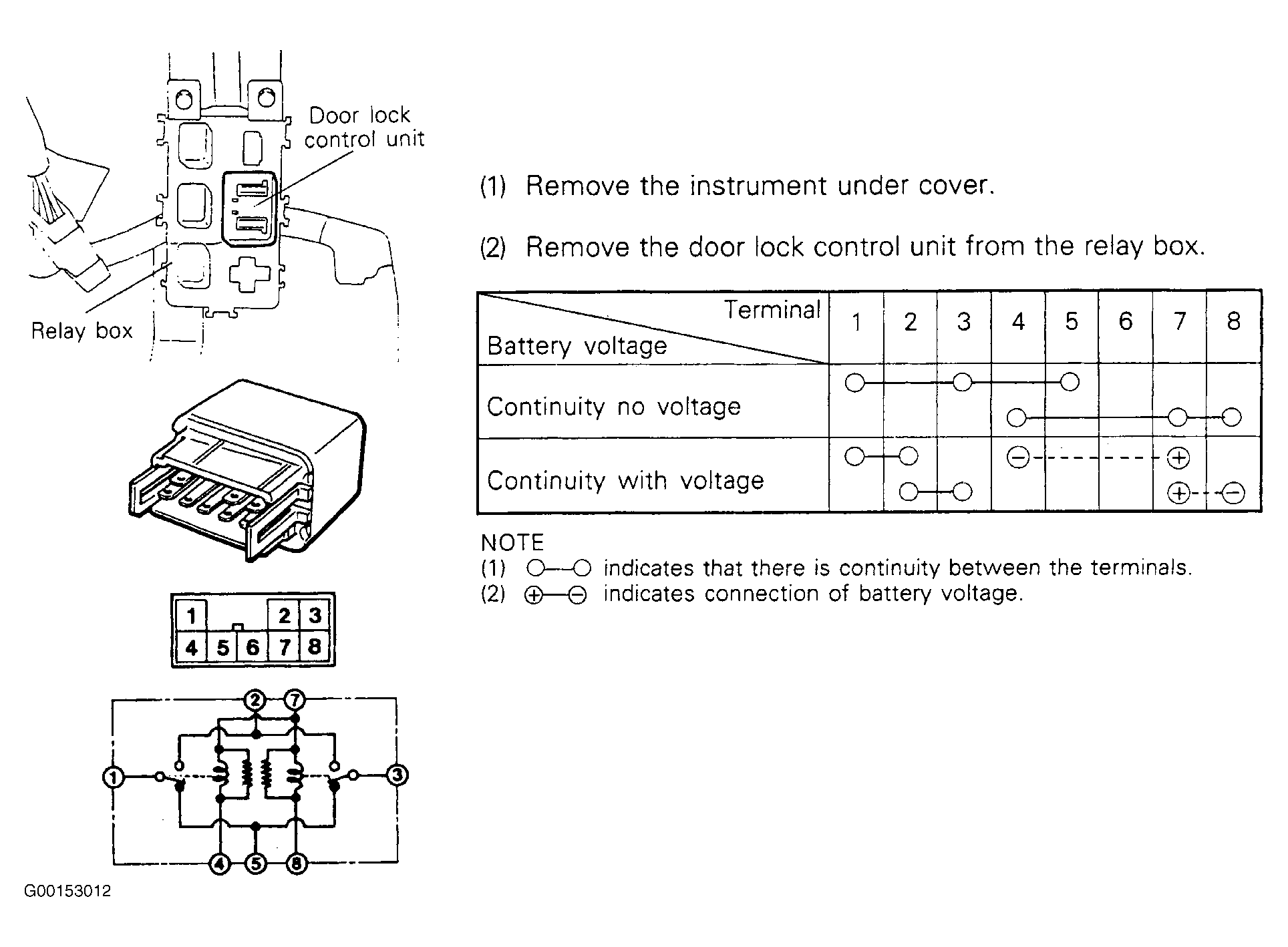

Fig 1: Testing Door Lock Control Unit Continuity
Courtesy of MITSUBISHI MOTORS OF AMERICA, INC.
Courtesy of MITSUBISHI MOTORS OF AMERICA, INC.
