Wiring Diagrams

Fig 1: ABS Wiring Diagram (Diamante)

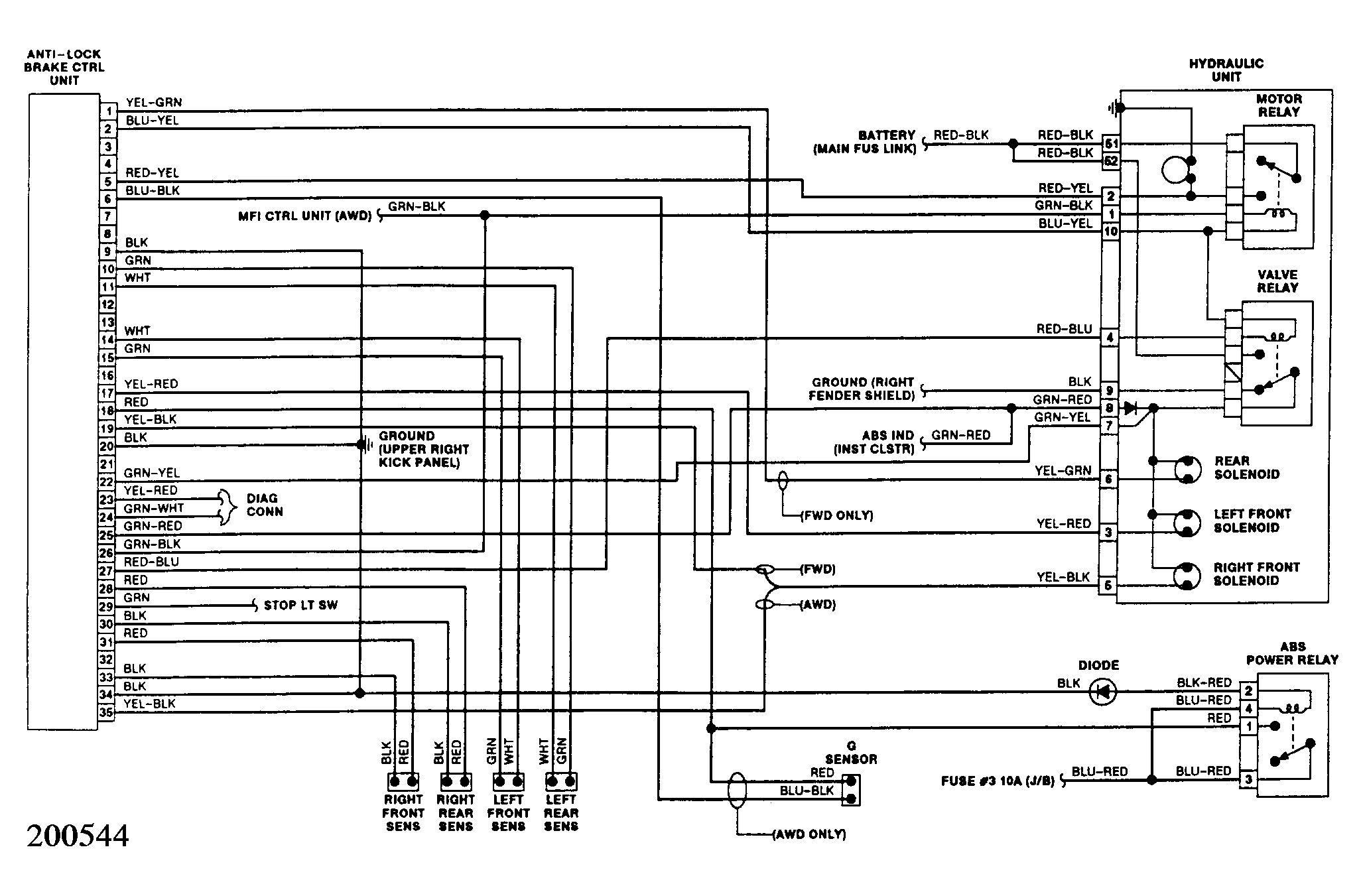

Fig 2: ABS Wiring Diagram (Eclipse)

Fig 3: ABS Wiring Diagram (Expo, Summit Wagon & Colt Vista)

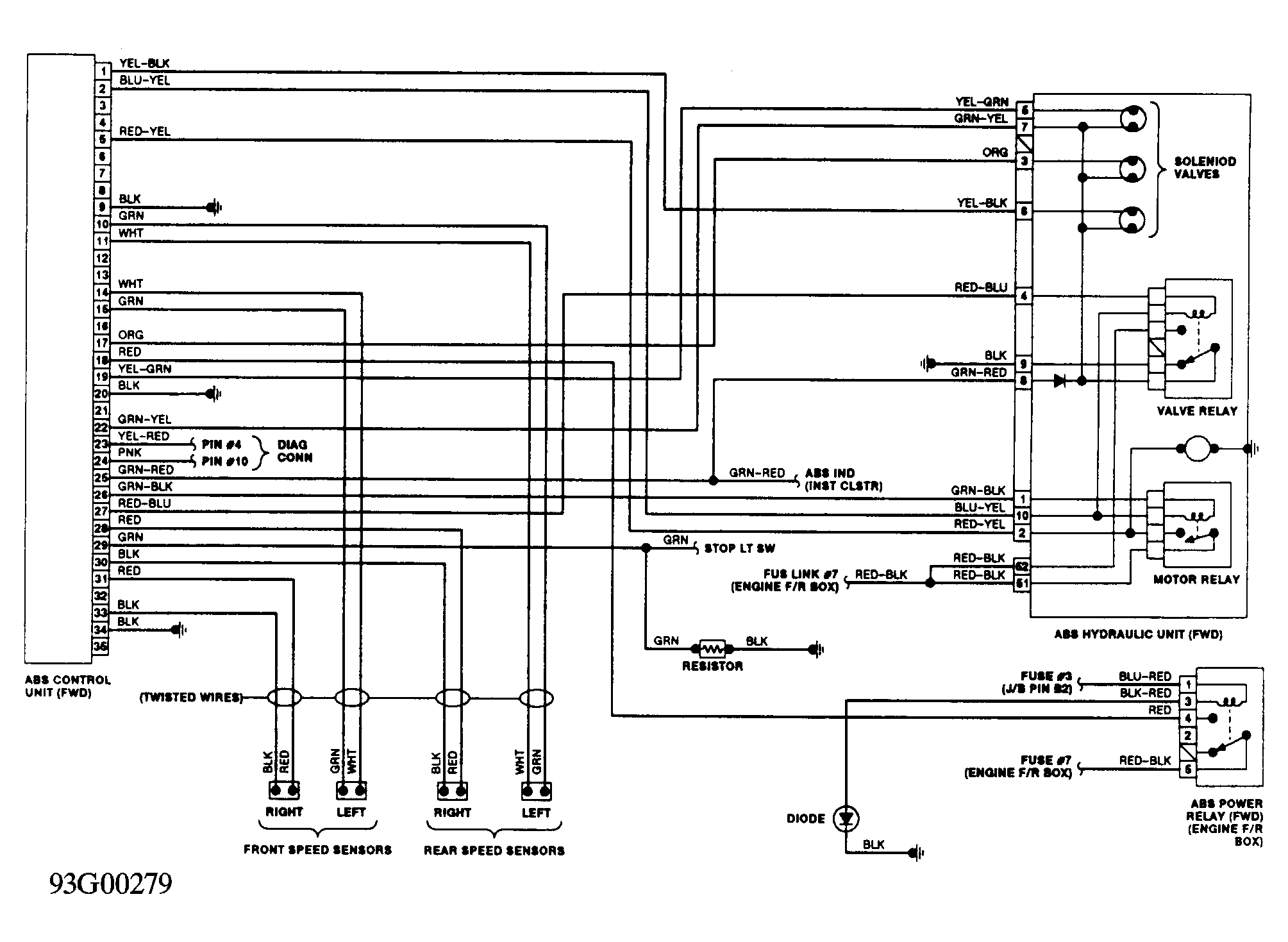

Fig 4: ABS Wiring Diagram (Galant AWD)

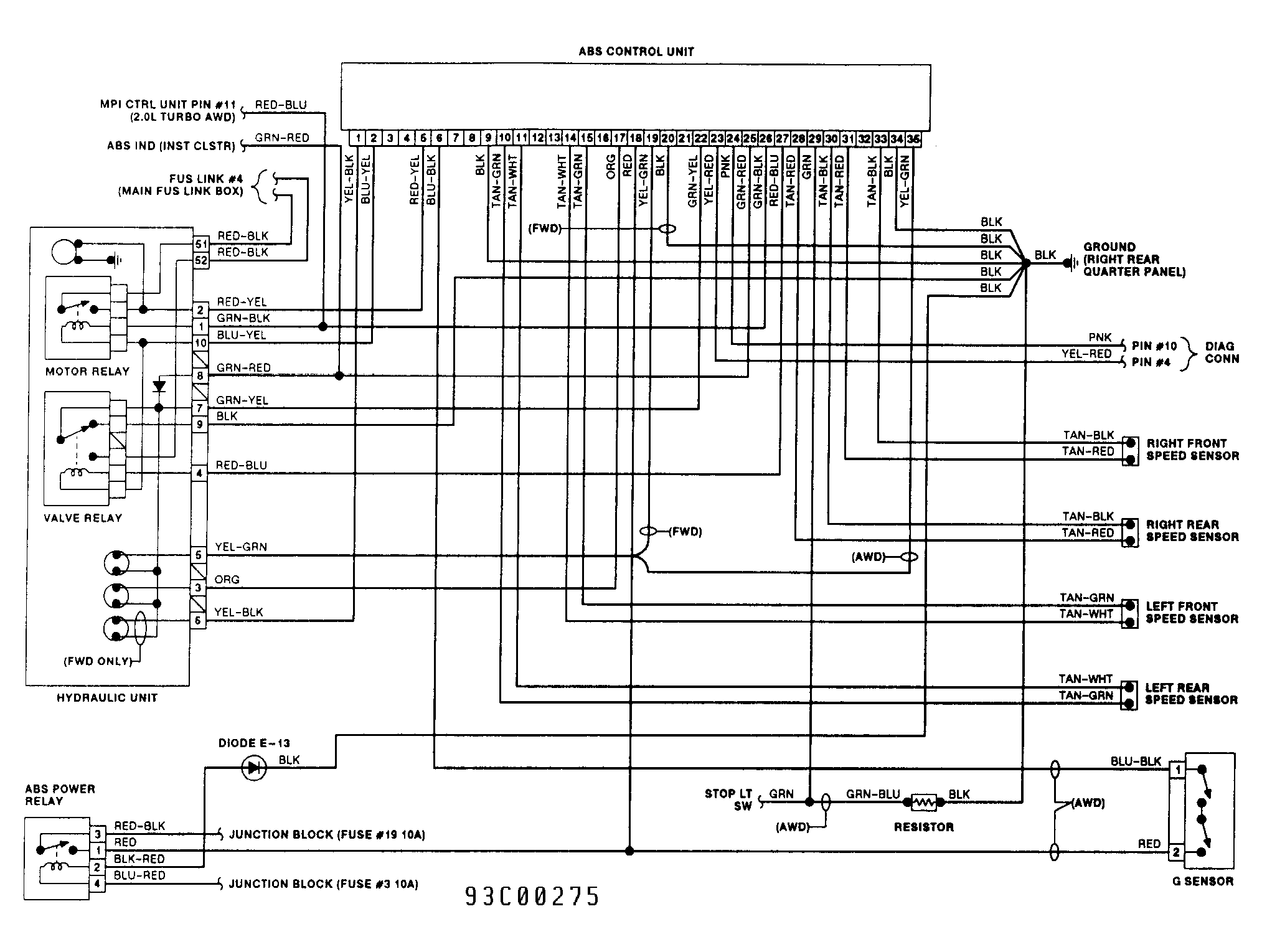

Fig 5: ABS Wiring Diagram (Galant FWD)

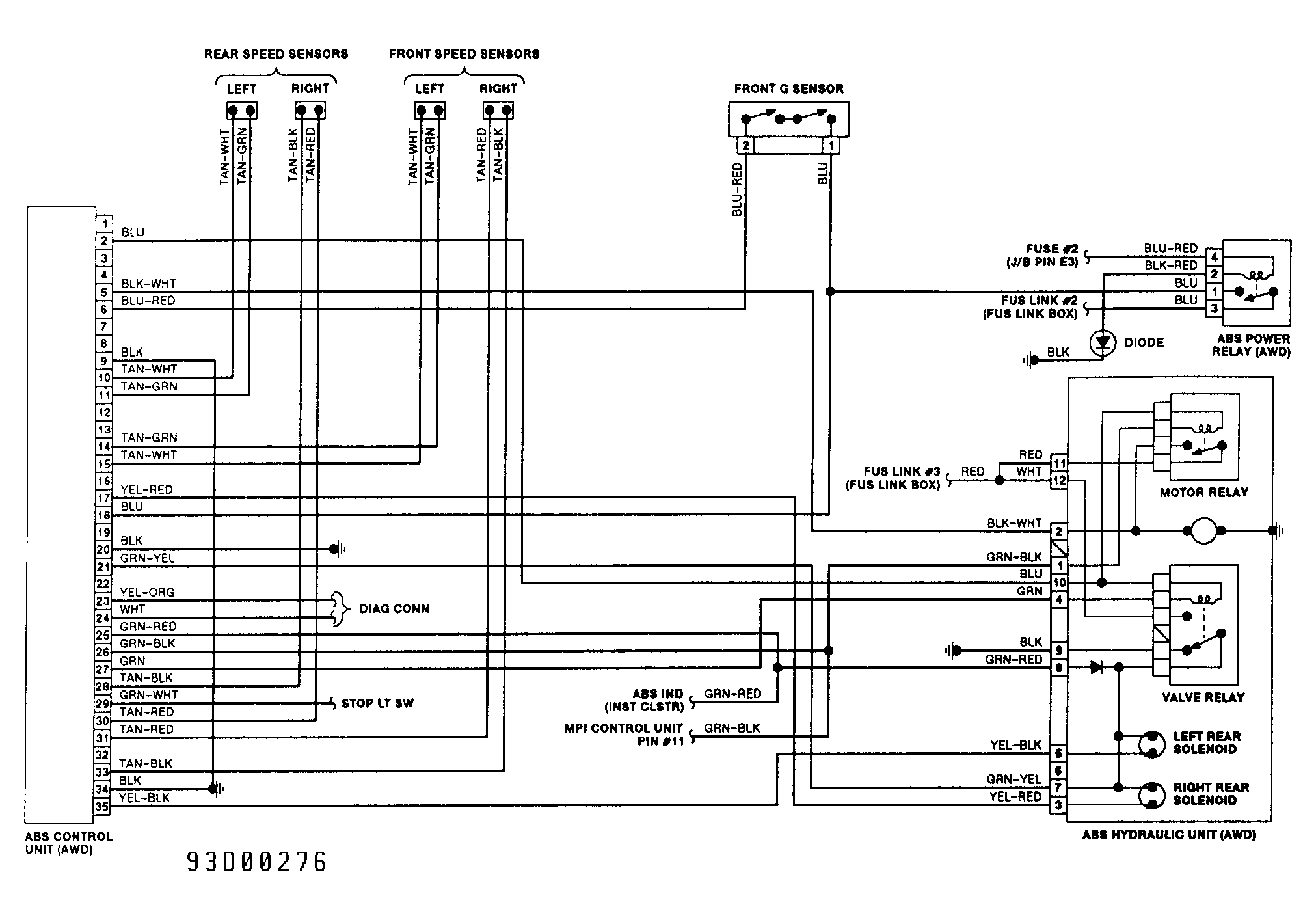

Fig 6: ABS Wiring Diagram (Stealth AWD & 3000GT AWD)

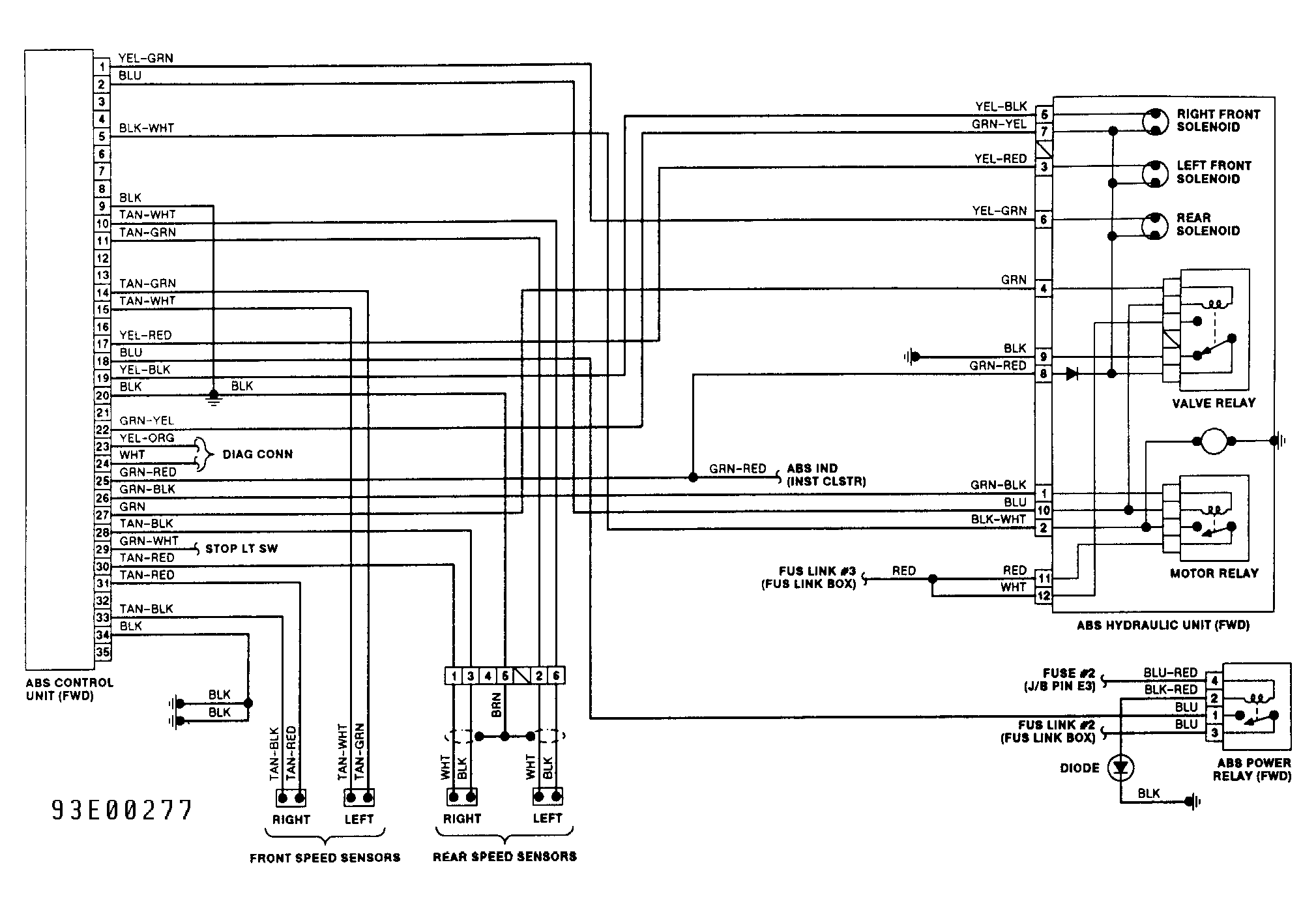

Fig 7: ABS Wiring Diagram (Stealth FWD & 3000GT FWD)
