Body & Frame
>>
Power Mirrors
>>
Component Testing
>>
Electric Remote Control Mirror Switch
Electric Remote Control Mirror Switch

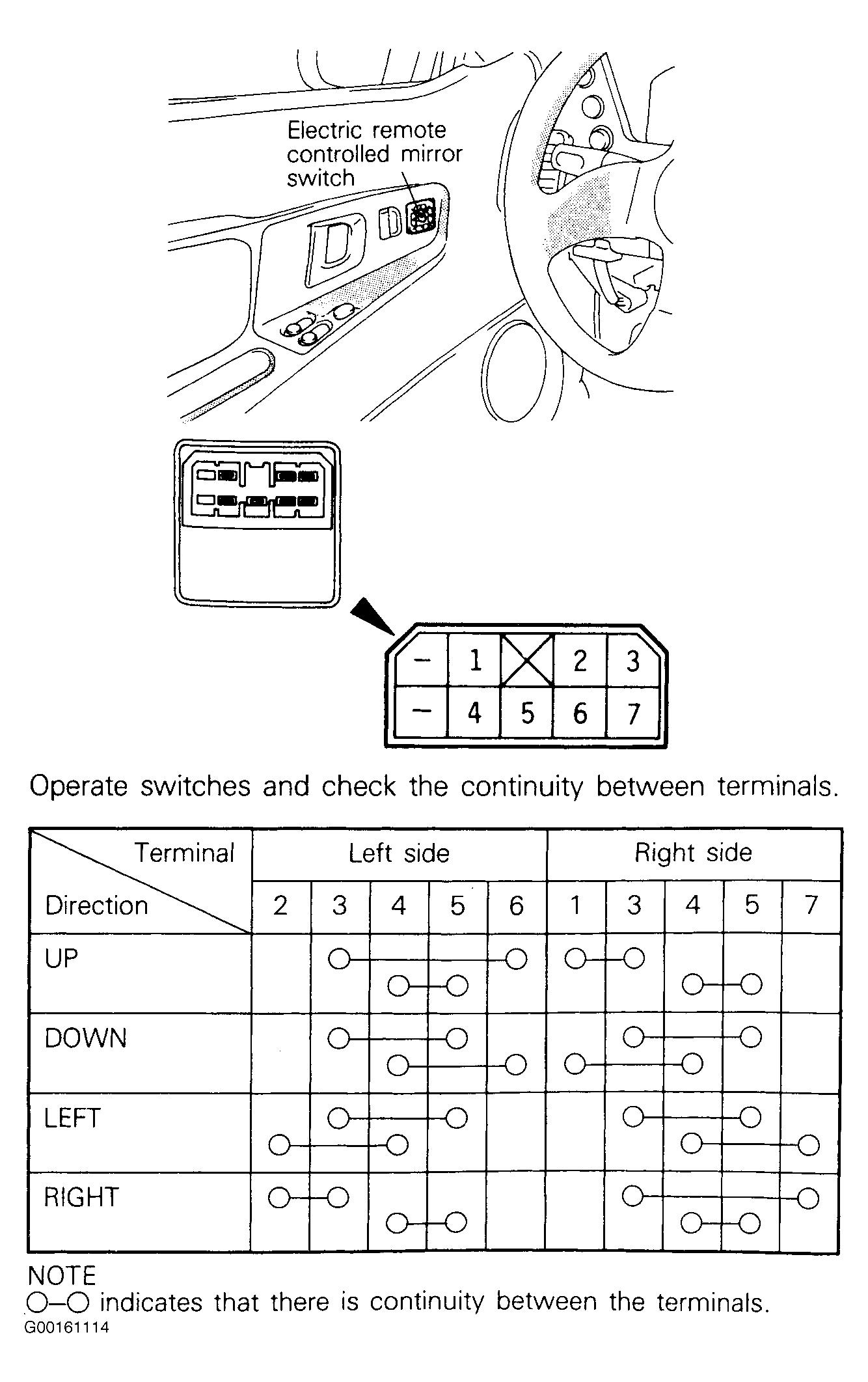

Fig 1: Testing Electric Controlled Mirror Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
