Power Window Unit (Rear)

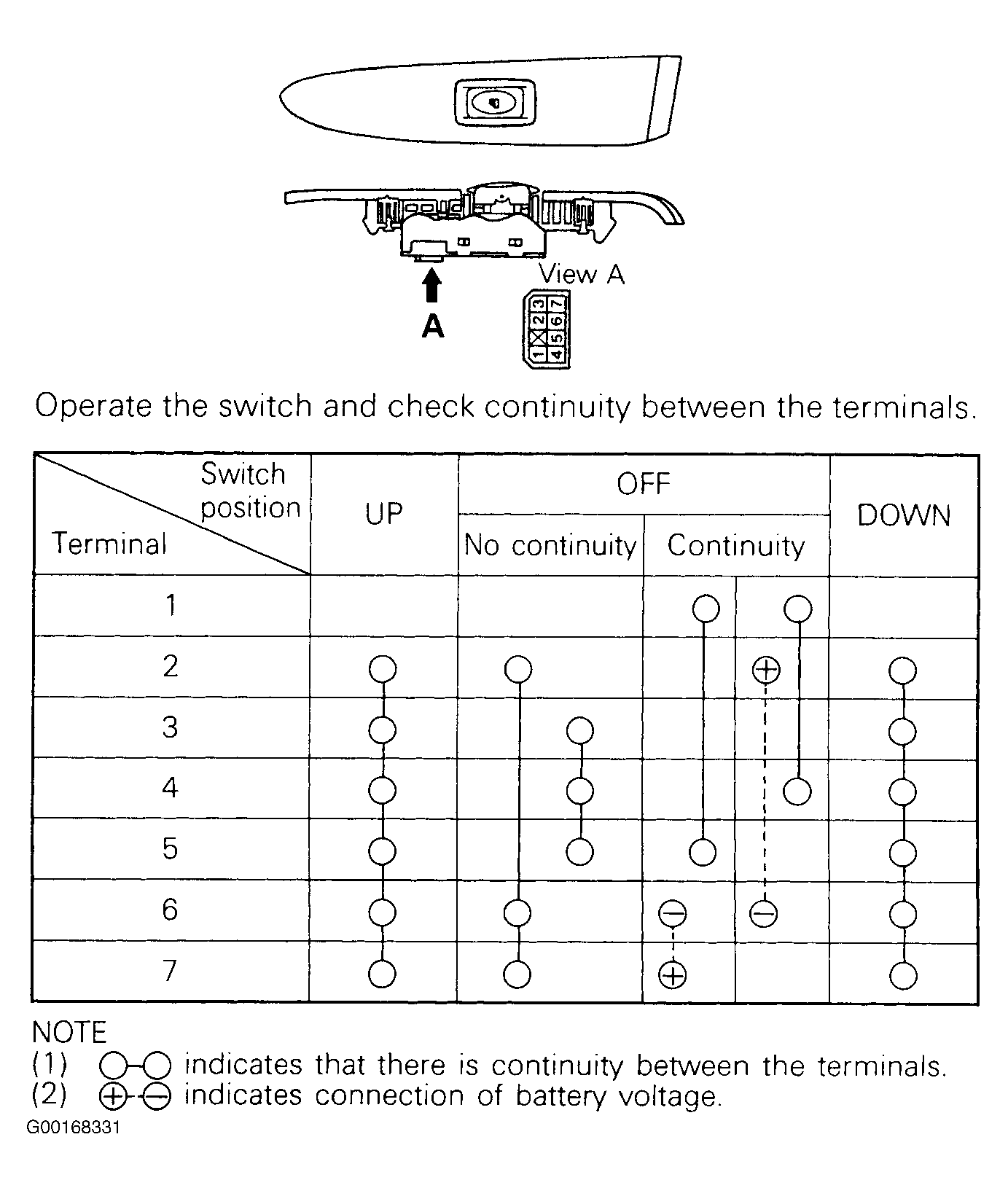

Fig 1: Testing Rear Power Window Unit

G00168331

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
