Remote Control Mirror Assembly
Remote Control Mirror Assembly

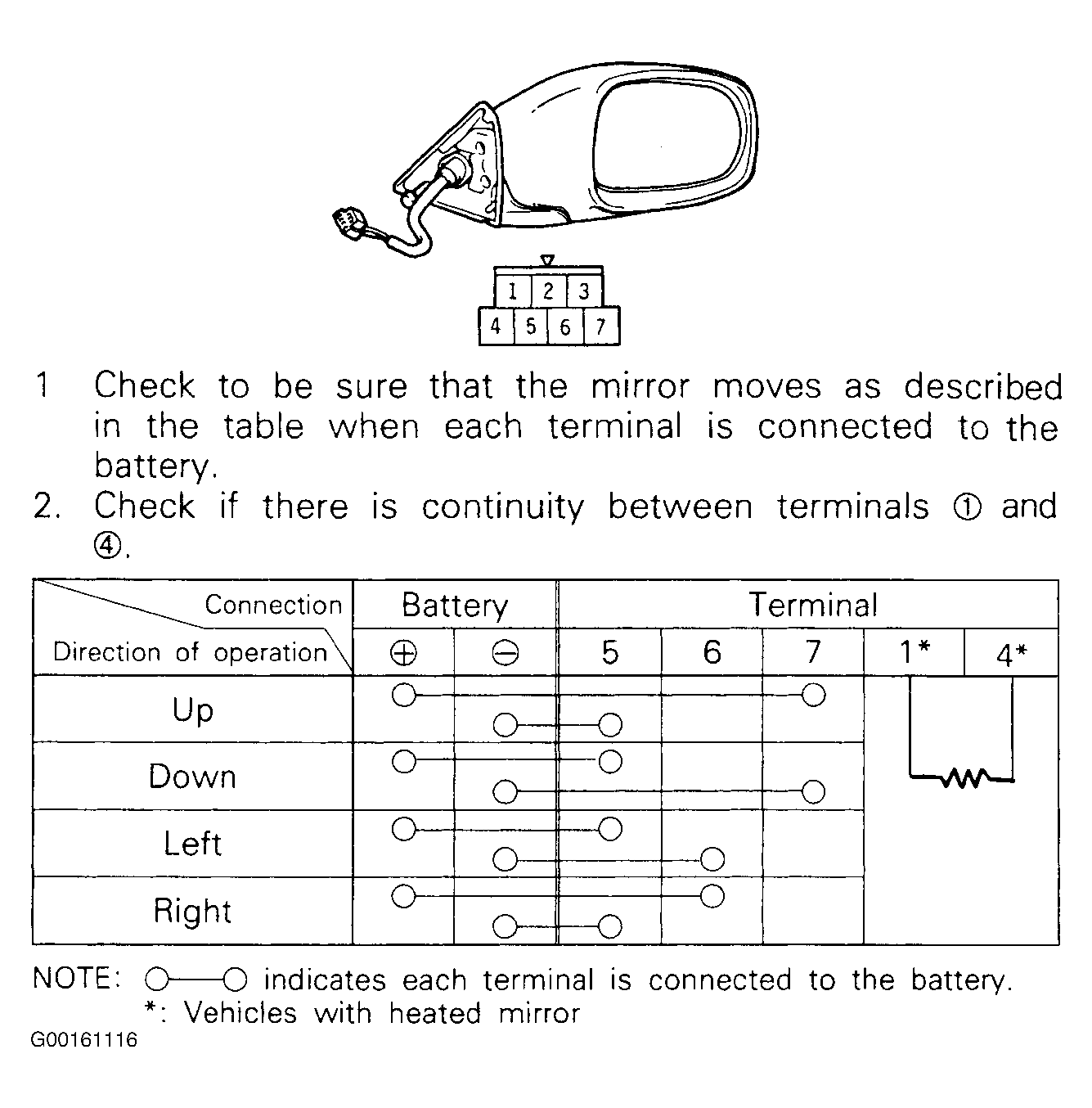

Fig 1: Testing Remote Control Mirror Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
