Dr-2: Code 11, Oxygen Sensor Circuit

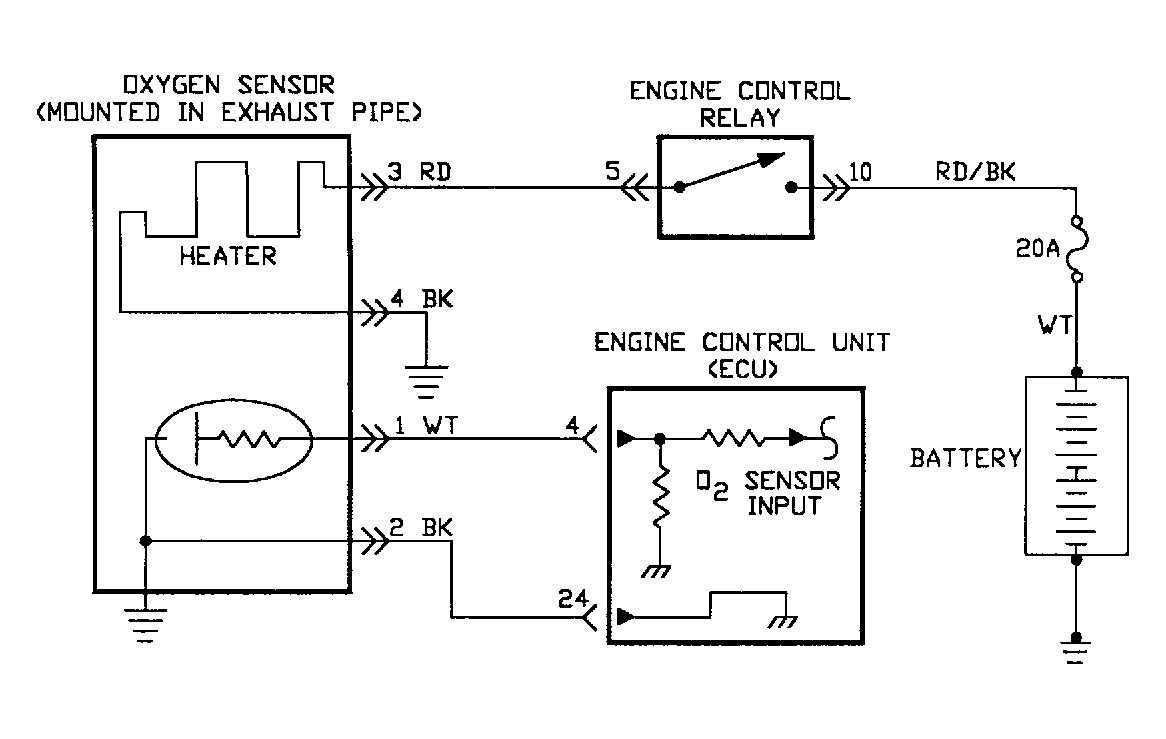

Fig 1: Test DR-2 Schematic - Code 11 - SOHC Oxygen Sensor Circuit

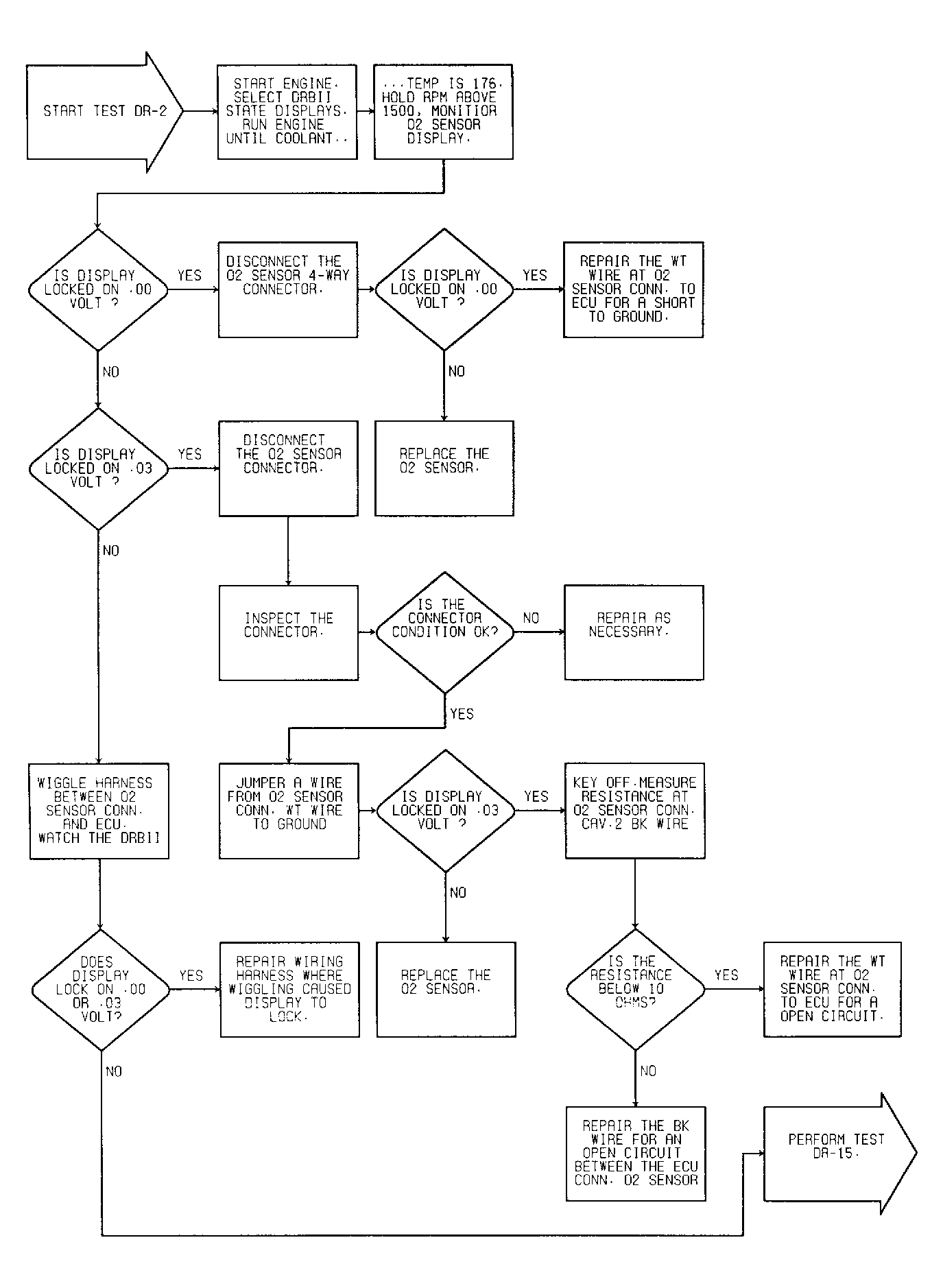

Fig 2: Test DR-2 Flow Chart - Code 11 - SOHC Oxygen Sensor Circuit
