Dr-9: Code 24, Vehicle Speed Sensor Circuit

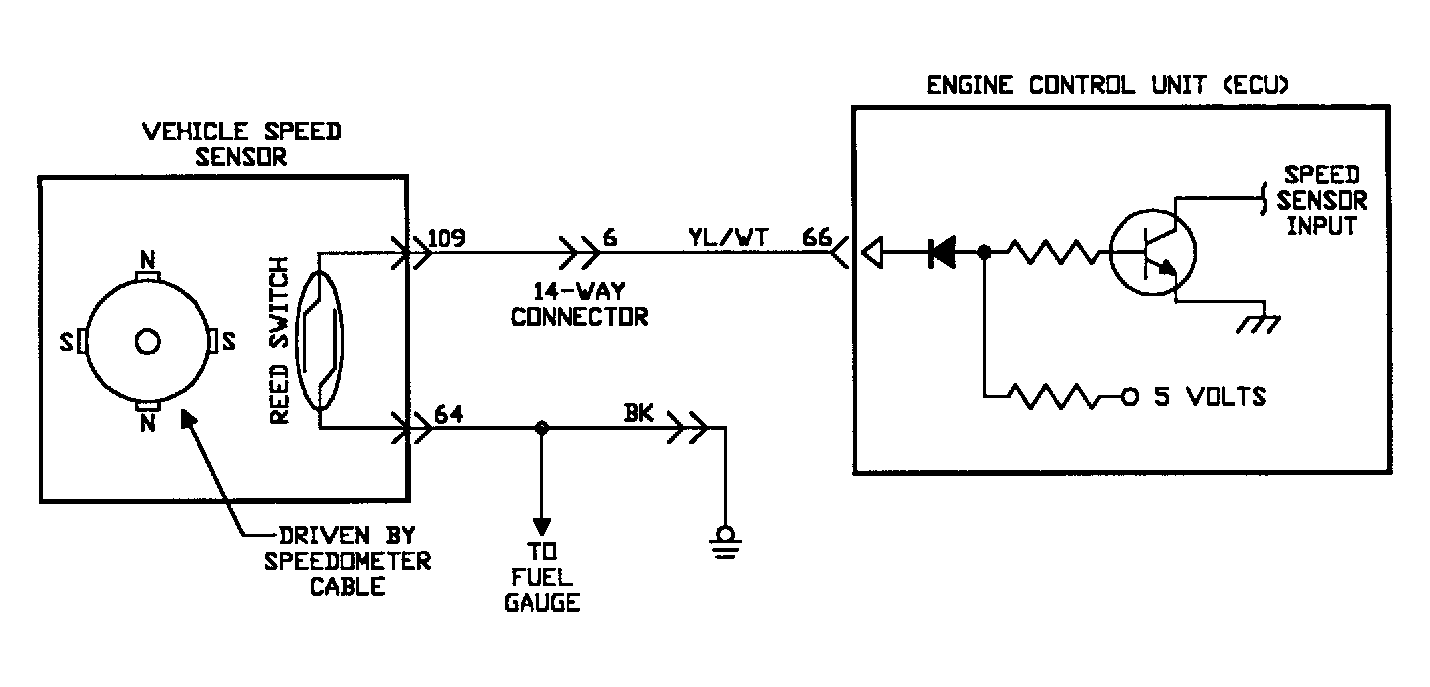

Fig 1: Test DR-9 Schematic - Code 24 - DOHC (1 Of 2) Vehicle Speed Sensor Circuit

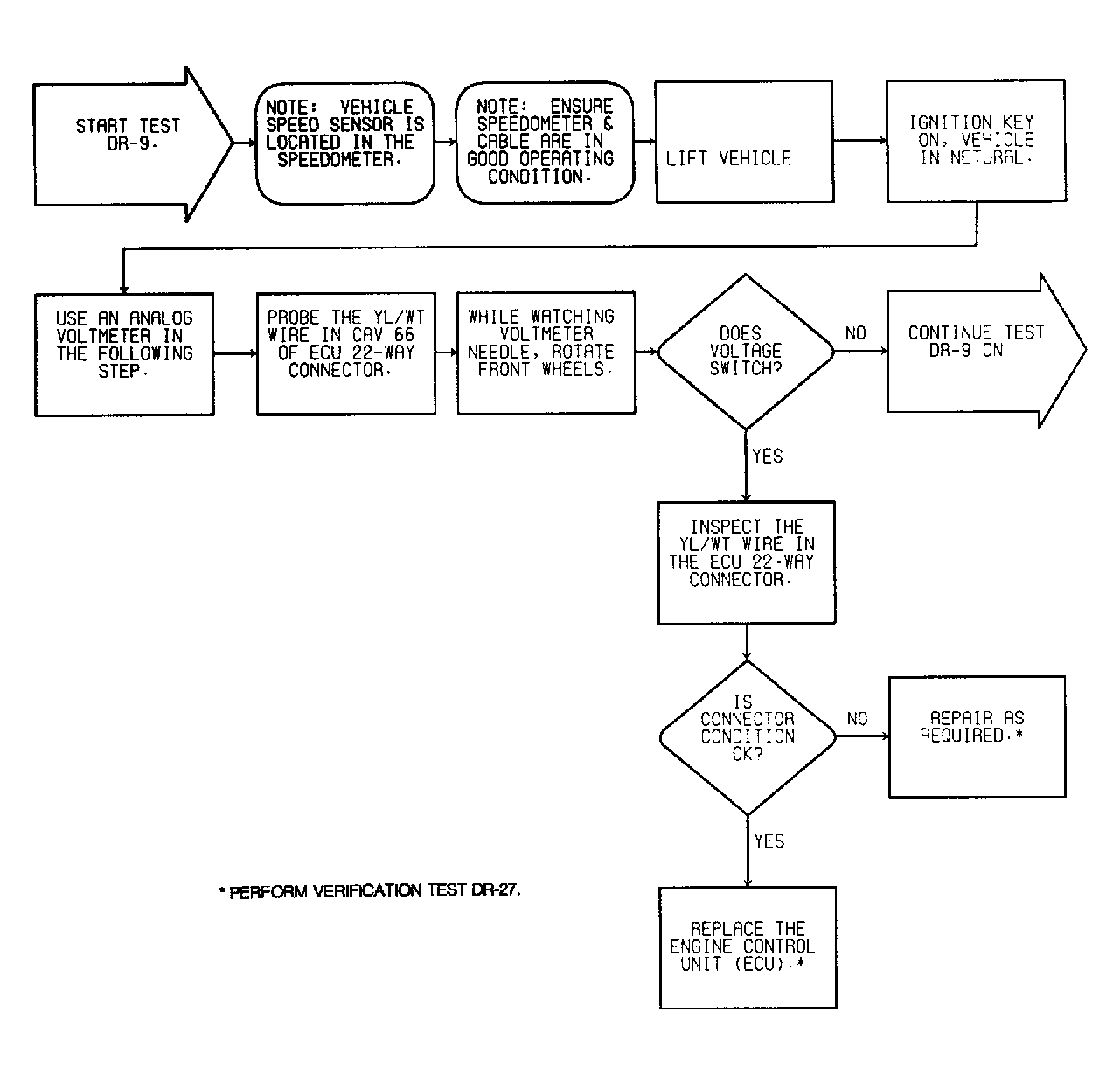

Fig 2: Test DR-9 Flow Chart - Code 24 - DOHC (1 Of 2) Vehicle Speed Sensor Circuit

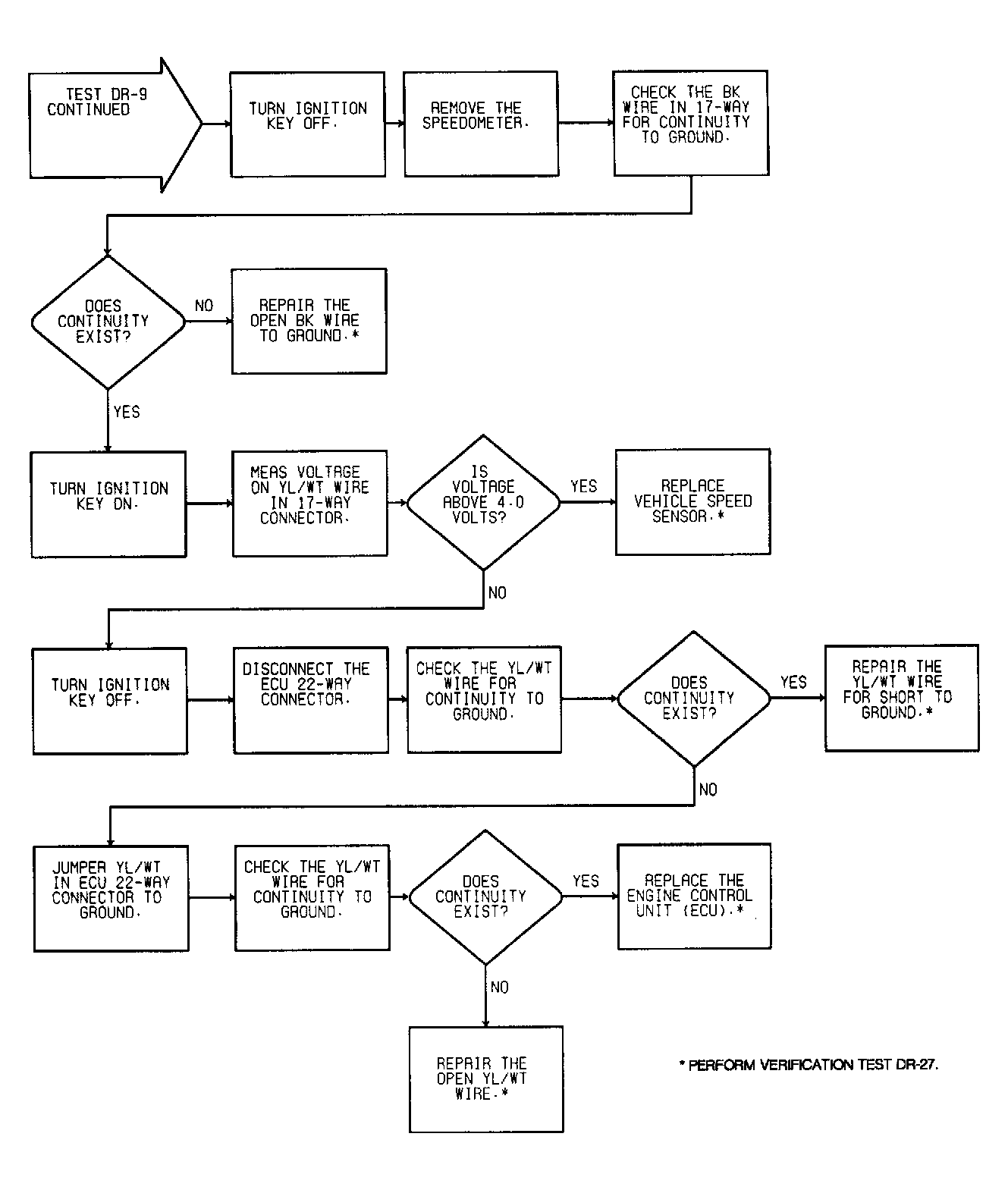

Fig 3: Test DR-9 Flow Chart - Code 24 - DOHC (2 Of 2) Vehicle Speed Sensor Circuit
