Steering System - Manual: Description

Steering gear is a rack and pinion type. Steering gear is connected to steering knuckles by tie rods. A flexible coupling connects steering column to steering gear pinion shaft. See Fig 1 .

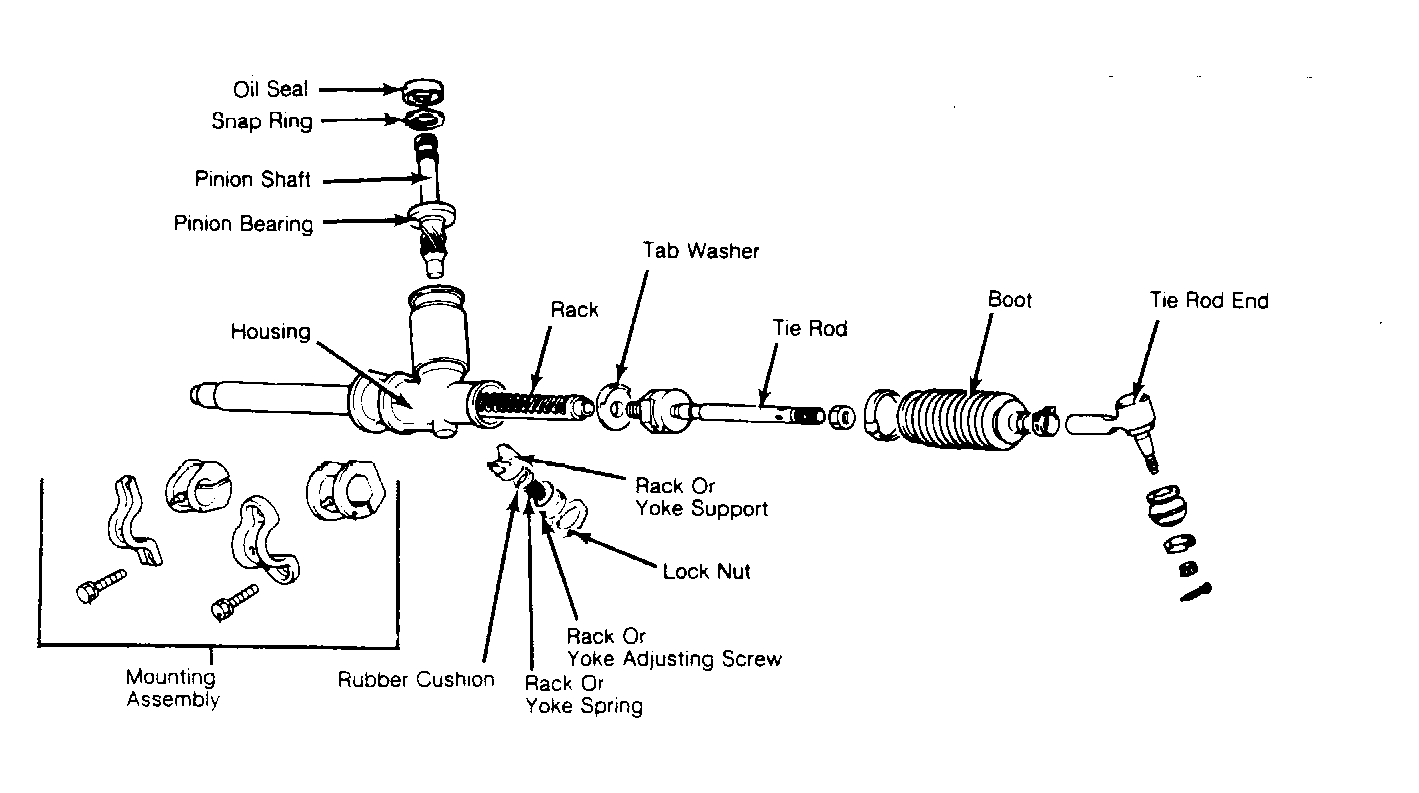

Fig 1: Exploded View of Manual Rack & Pinion Steering Gear (Typical)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
