Throttle Position Sensor

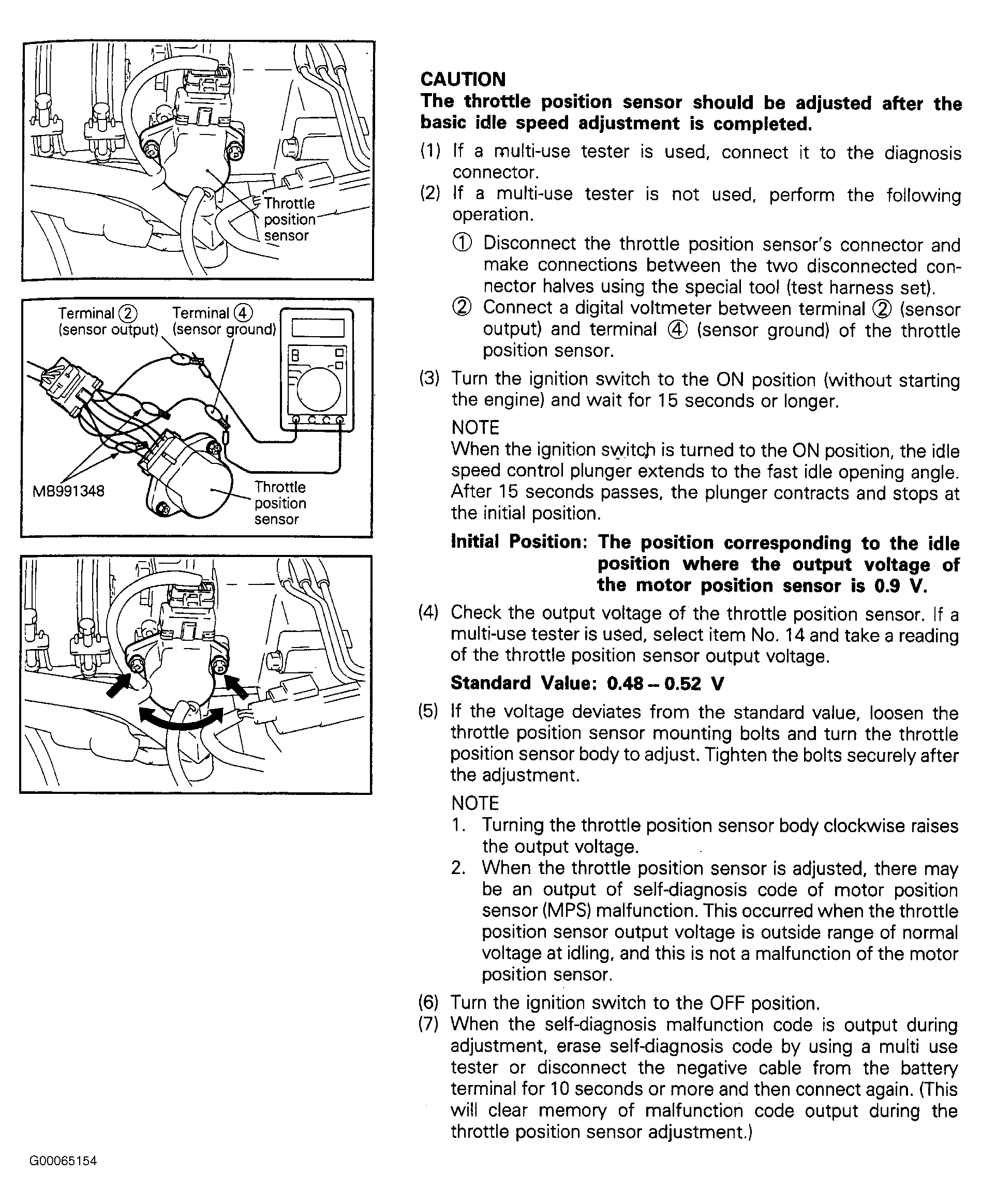

Fig 1: Throttle Position Sensor
G00065154Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
