Sensor Inspection

For intake air temperature sensor inspection, see Fig 1 .

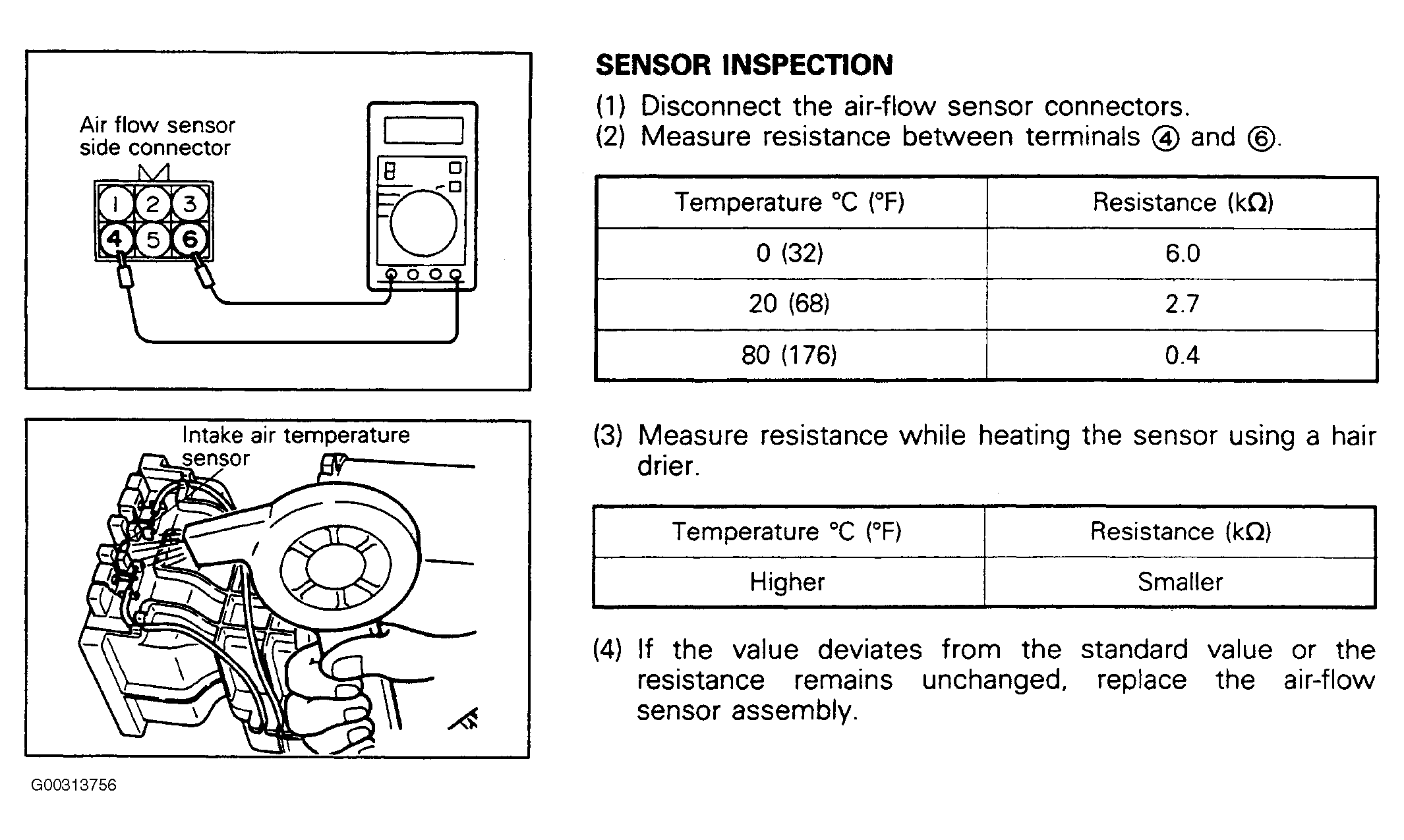

Fig 1: Intake Air Temperature Sensor Inspection

G00313756

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
