NS-3: Code 42 Fuel Pump Circuit

Fig 1: Circuit Diagram NS-3 (1.8L)

G90I20139

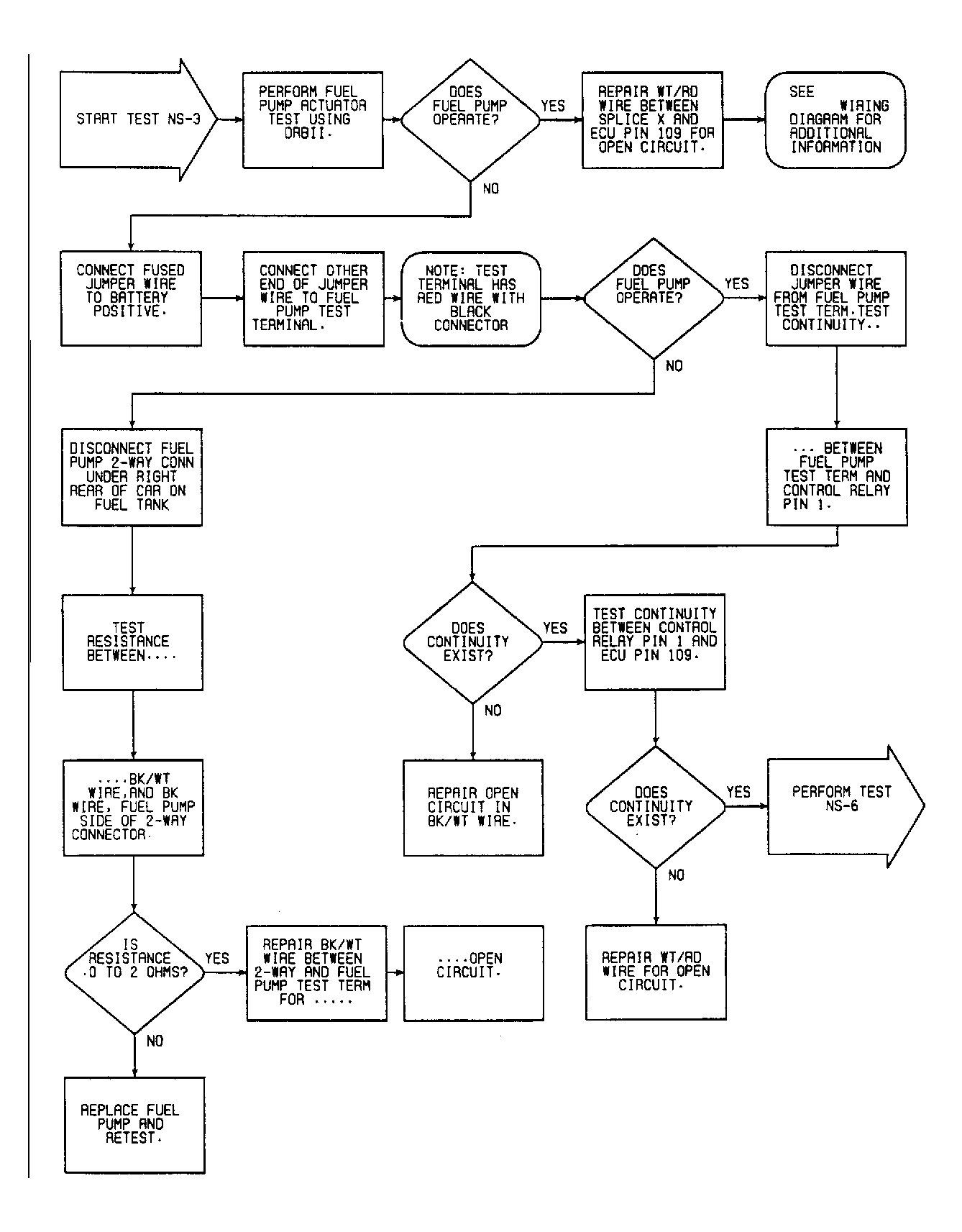

Fig 2: Flow Chart NS-3 (1.8L)

G90G02083
