Dr-5: Code 14 Throttle Position Sensor Circuit
Dr-5: Code 14 Throttle Position Sensor Circuit

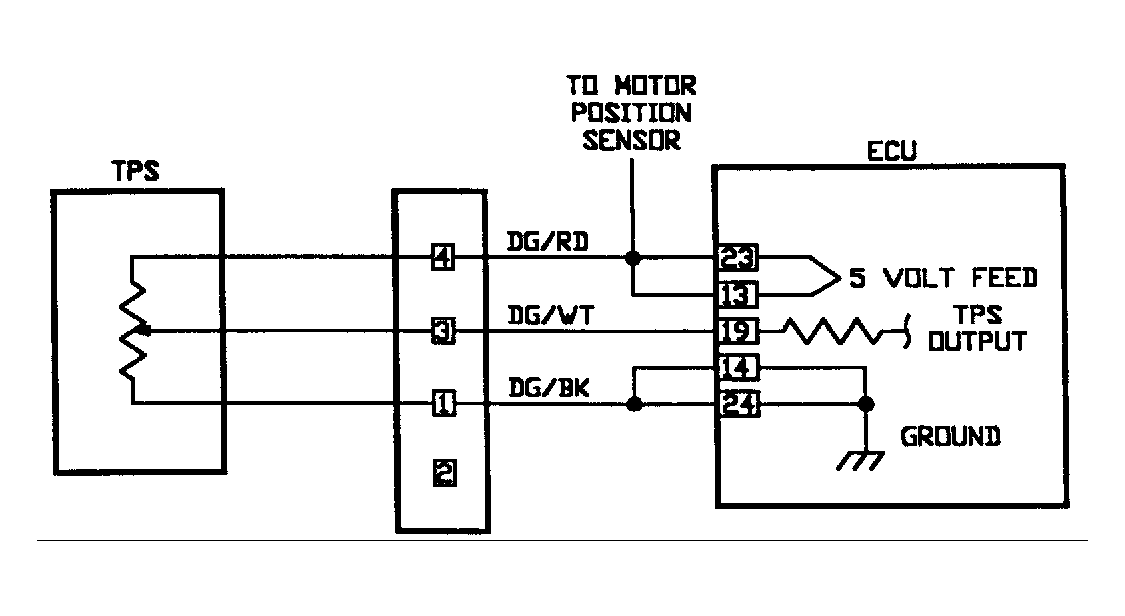

Fig 1: Circuit Diagram DR-5 (1.5L)

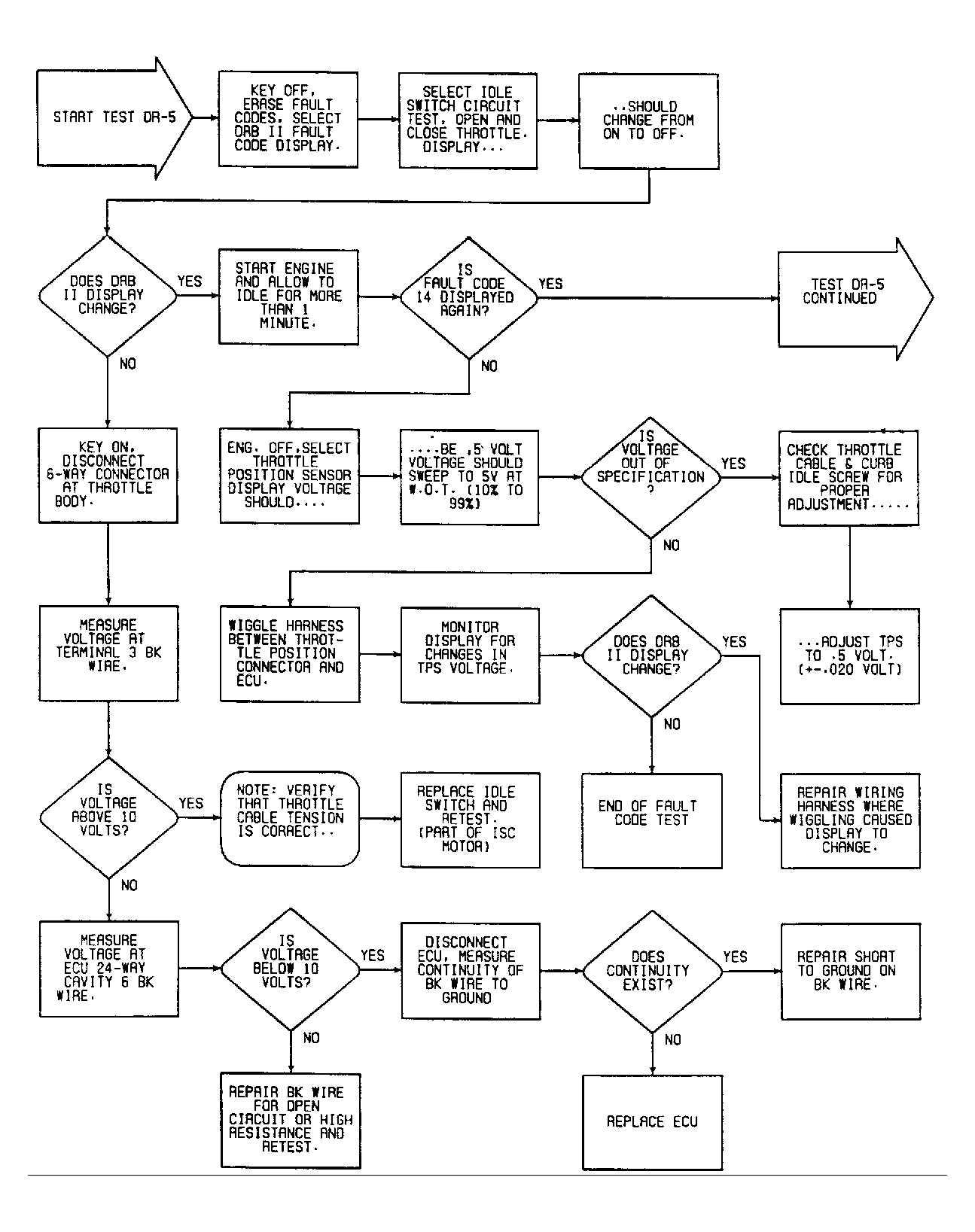

Fig 2: Flow Chart DR-5 (1.5L) (1 of 2)

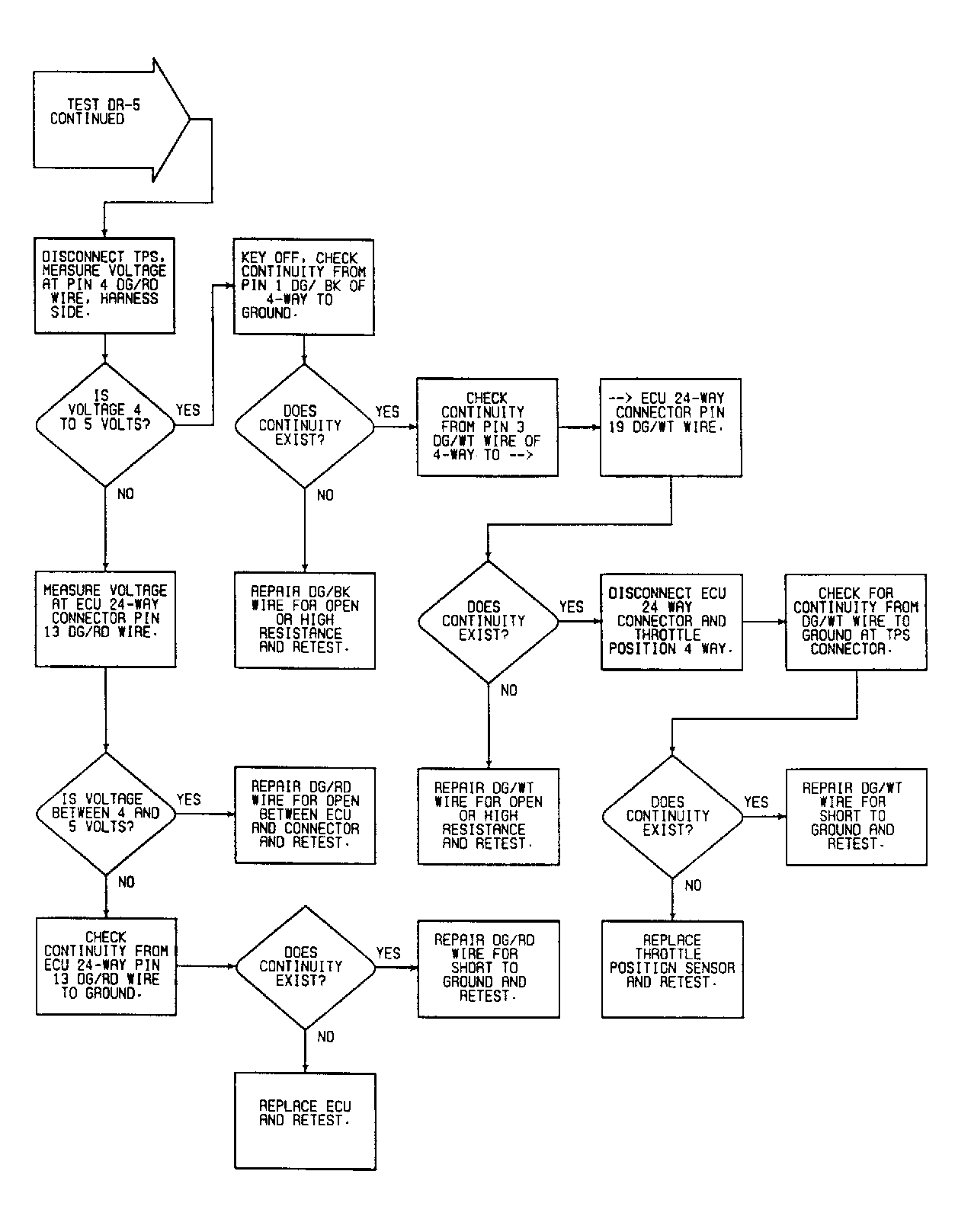

Fig 3: Flow Chart DR-5 (1.5L) (2 of 2)
