Eclipse 1.8L & Galant (VIN V)

Connect 6-volt DC source across terminals No. 1 and 2 of ISC motor connector. See Fig 1 . Reverse leads of 6-volt source. If motor does not operate in both directions, replace ISC motor assembly.

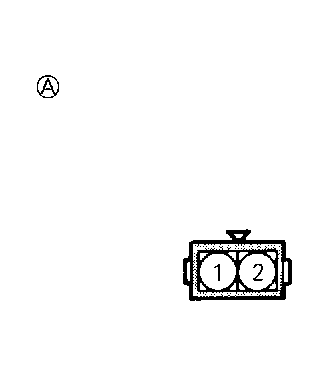

Fig 1: ISC Motor Connector Terminal ID (SOHC)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
