Wiring Diagrams

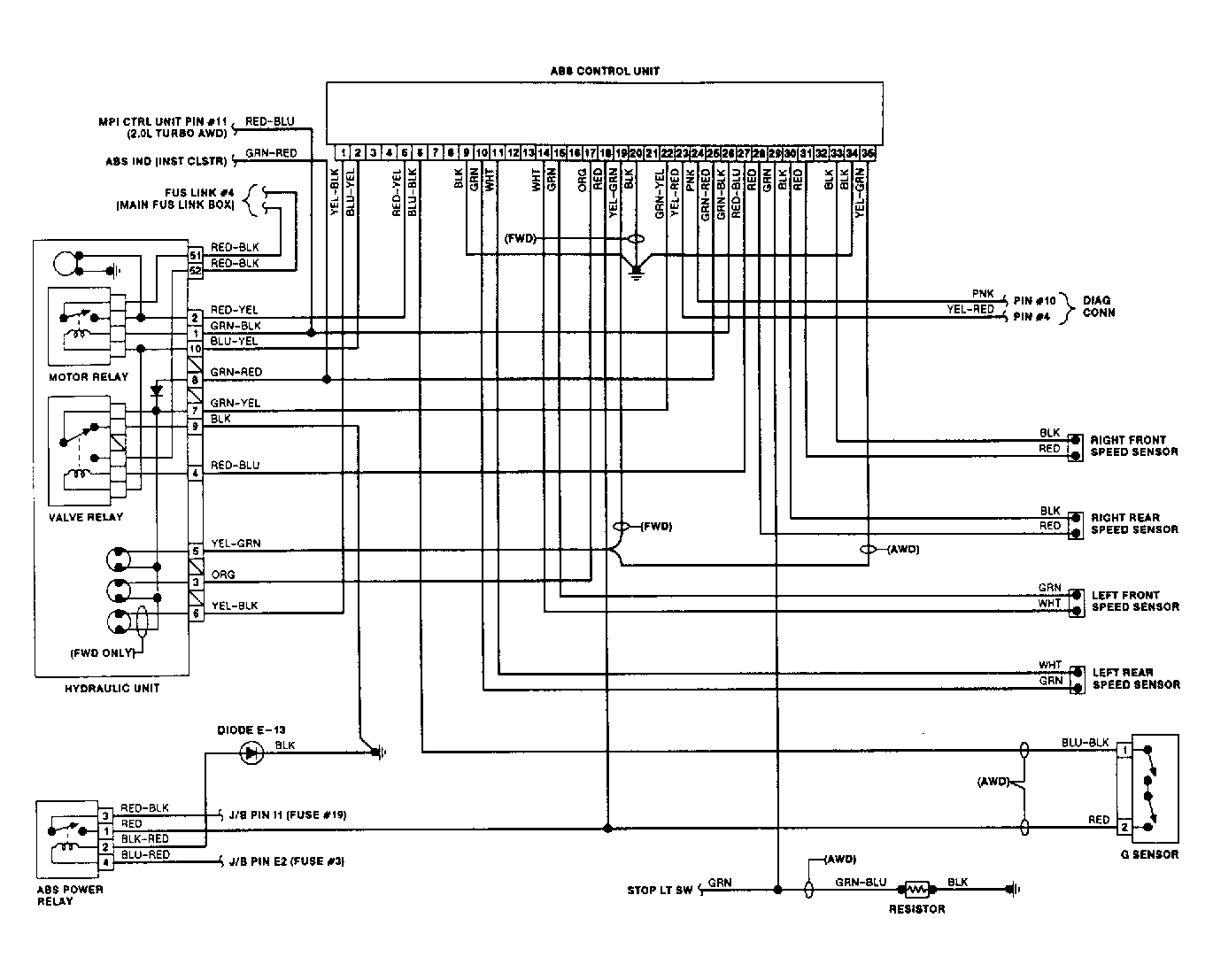

Fig 1: Anti-Lock Brake System Wiring Diagram (Eclipse)
G92A00729

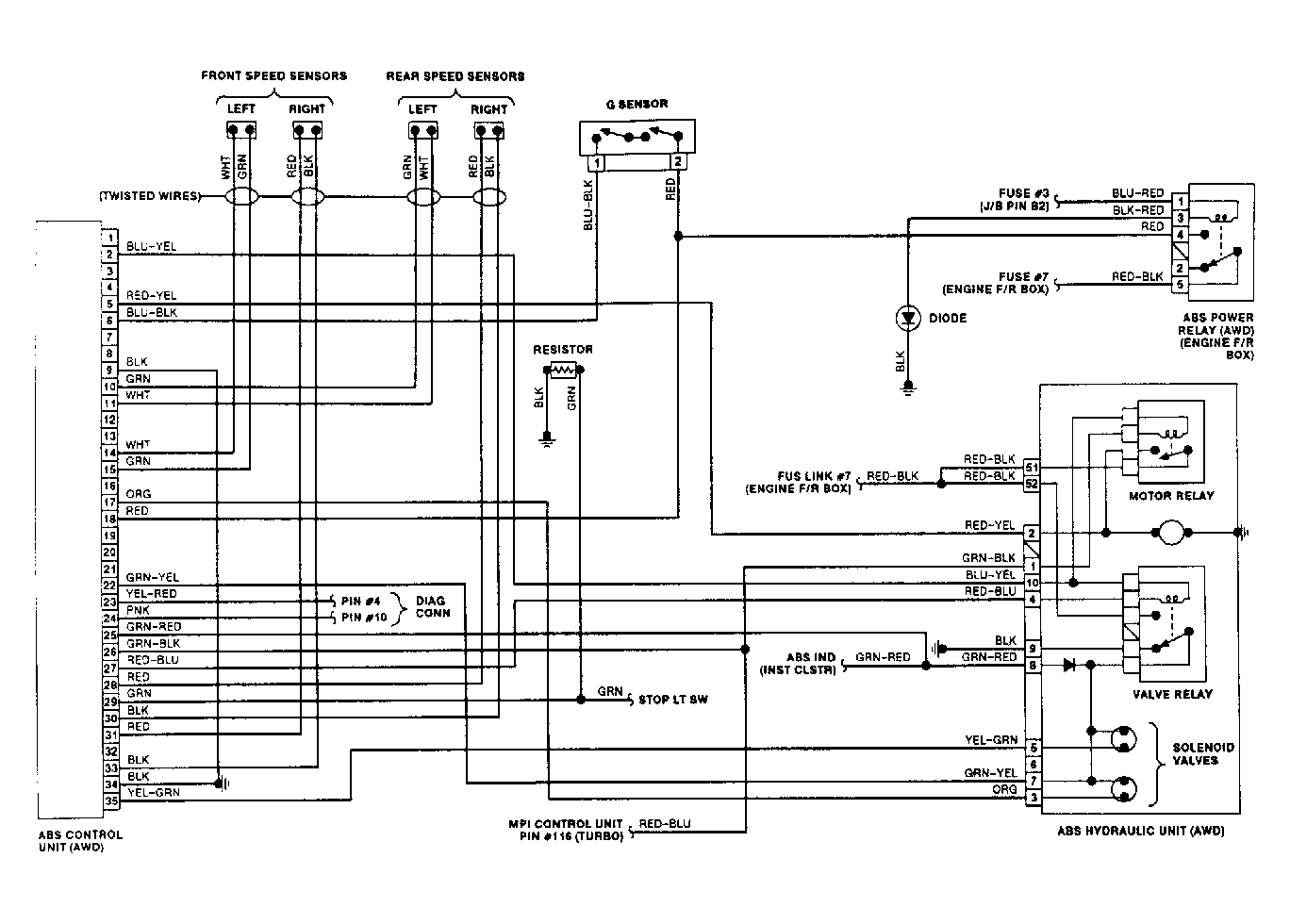

Fig 2: Anti-Lock Brake System Wiring Diagram (Stealth & 3000GT AWD)
G92F00732

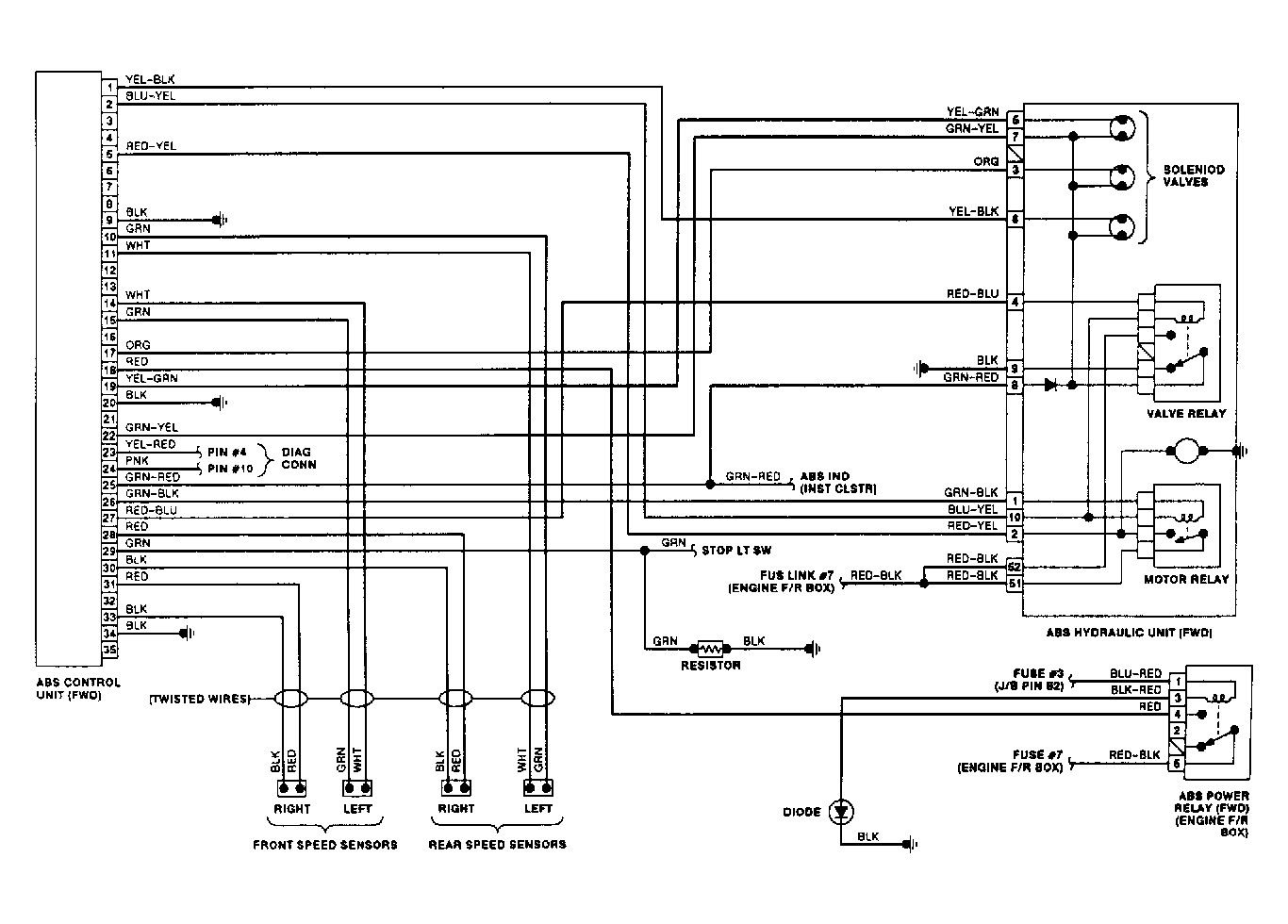

Fig 3: Anti-Lock Brake System Wiring Diagram (Stealth & 3000GT FWD)
G92I01372
