NS-5: Code 22 Crank Angle Sensor

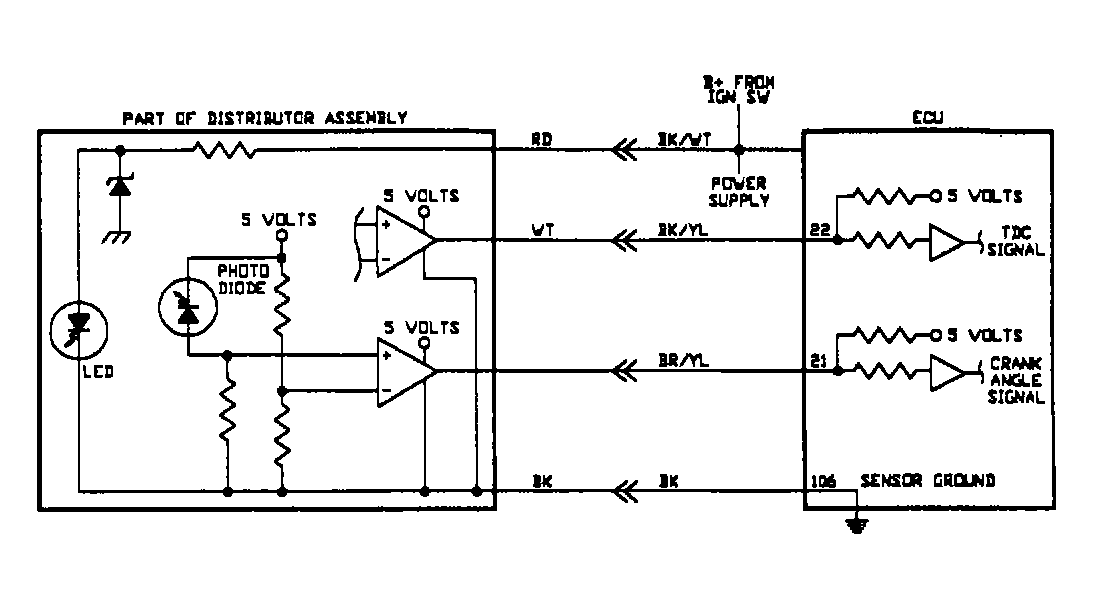

Fig 1: Circuit Diagram NS-5 (1.8L)

G90C20141

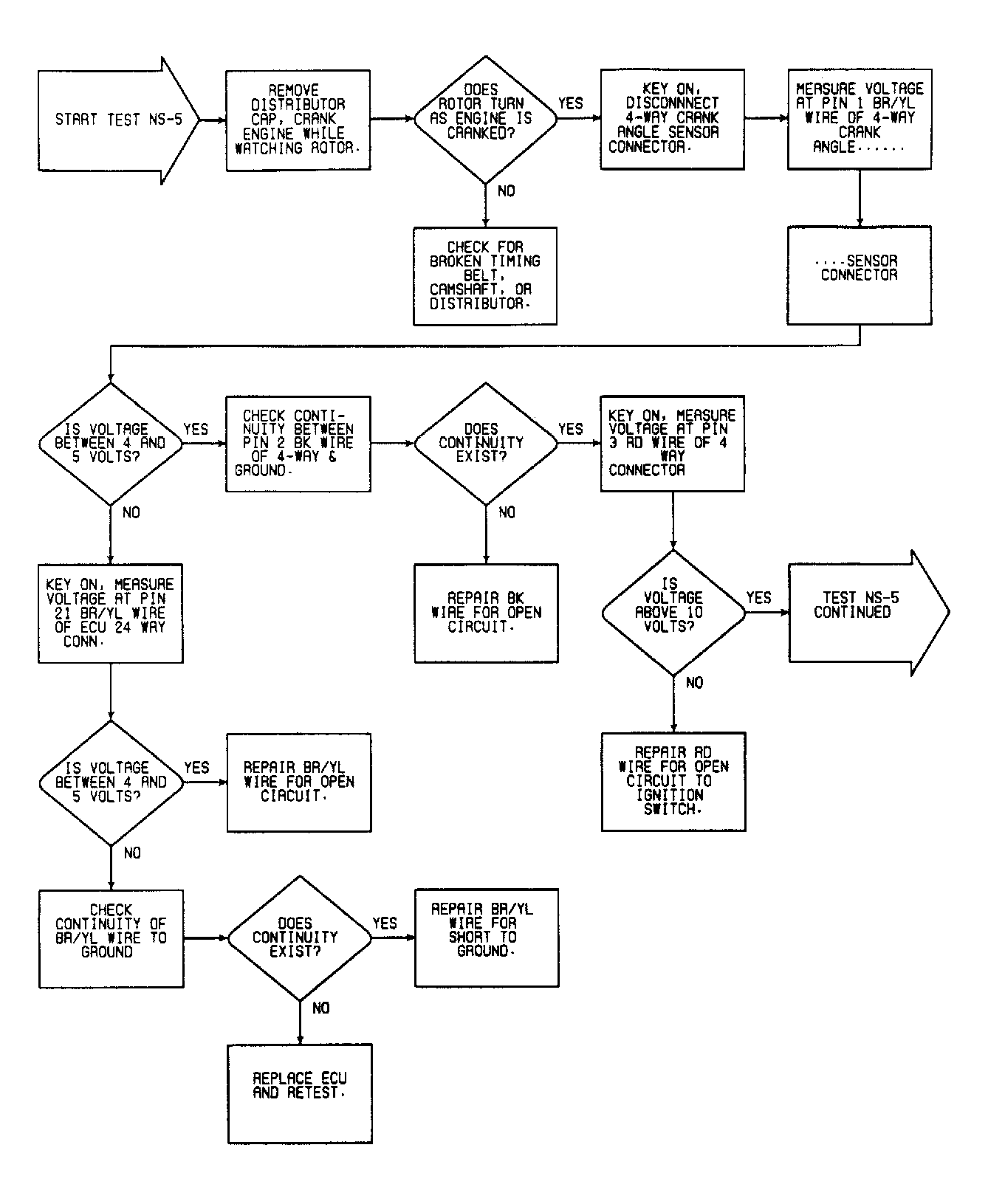

Fig 2: Flow Chart NS-5 (1.8L) (1 of 2)

G90B02085

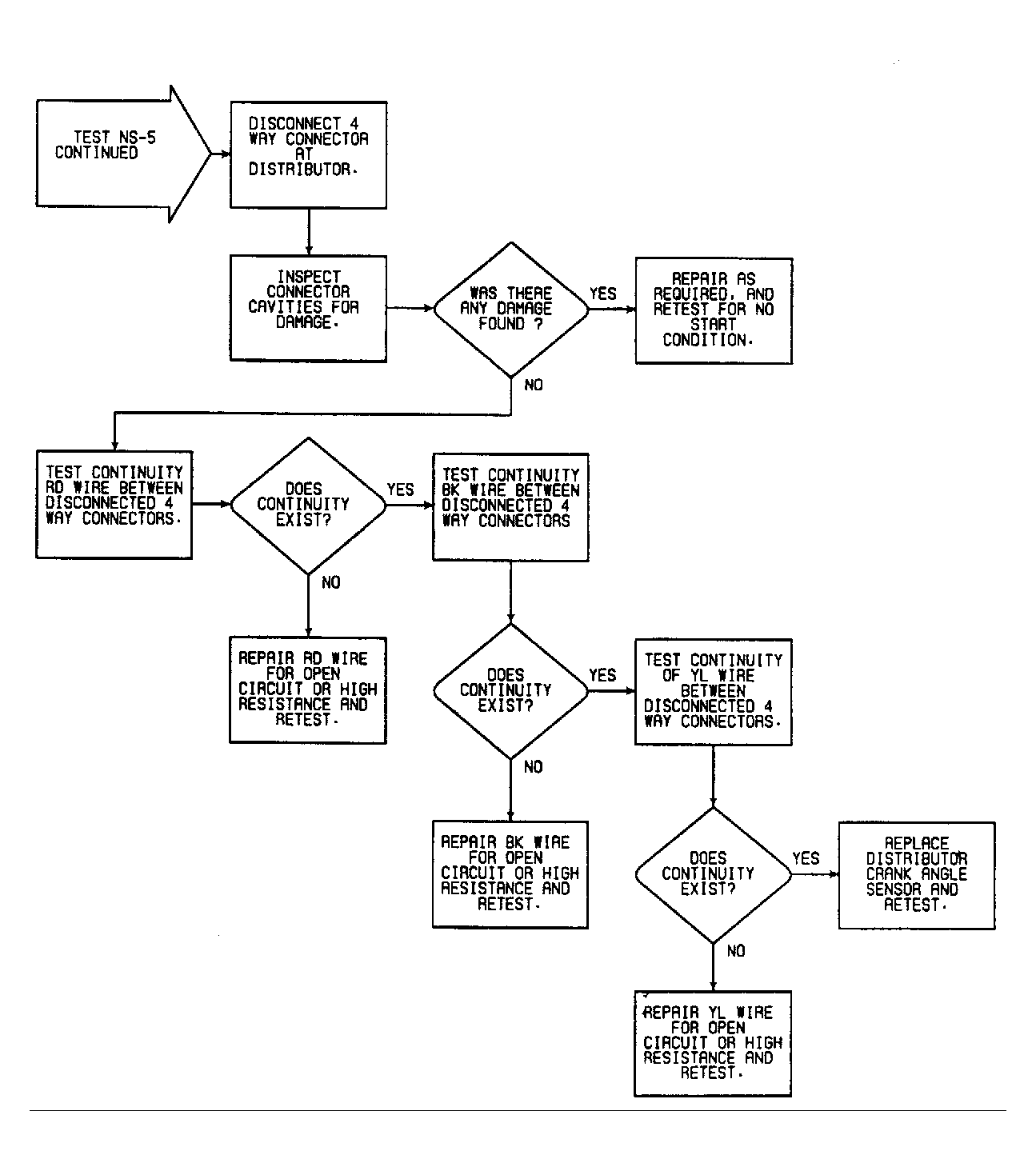

Fig 3: Flow Chart NS-5 (1.8L) (2 of 2)

G90D02086
