Dr-2: Code 11 Oxygen Sensor Circuit

Fig 1: Circuit Diagram DR-2 (1.8L)

G90E20143

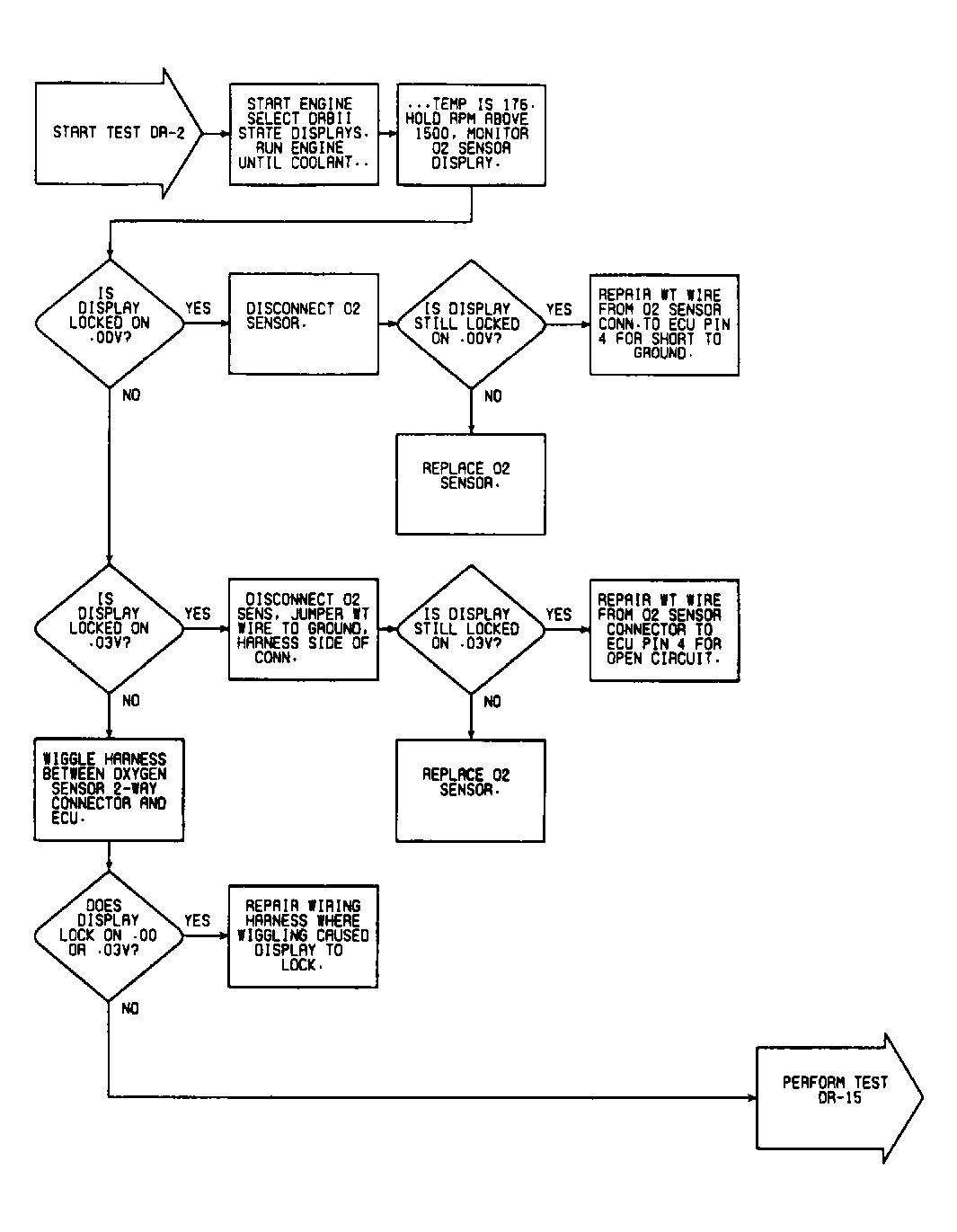

Fig 2: Flow Chart DR-2 (1.8L)

G90B02090
