NS-4: Testing Fuel Pump Circuit

Fig 1: Circuit Diagram NS-4 (1.6L)

G90G15400

Fig 2: Circuit Diagram NS-4 (1.6L)

G90H15401

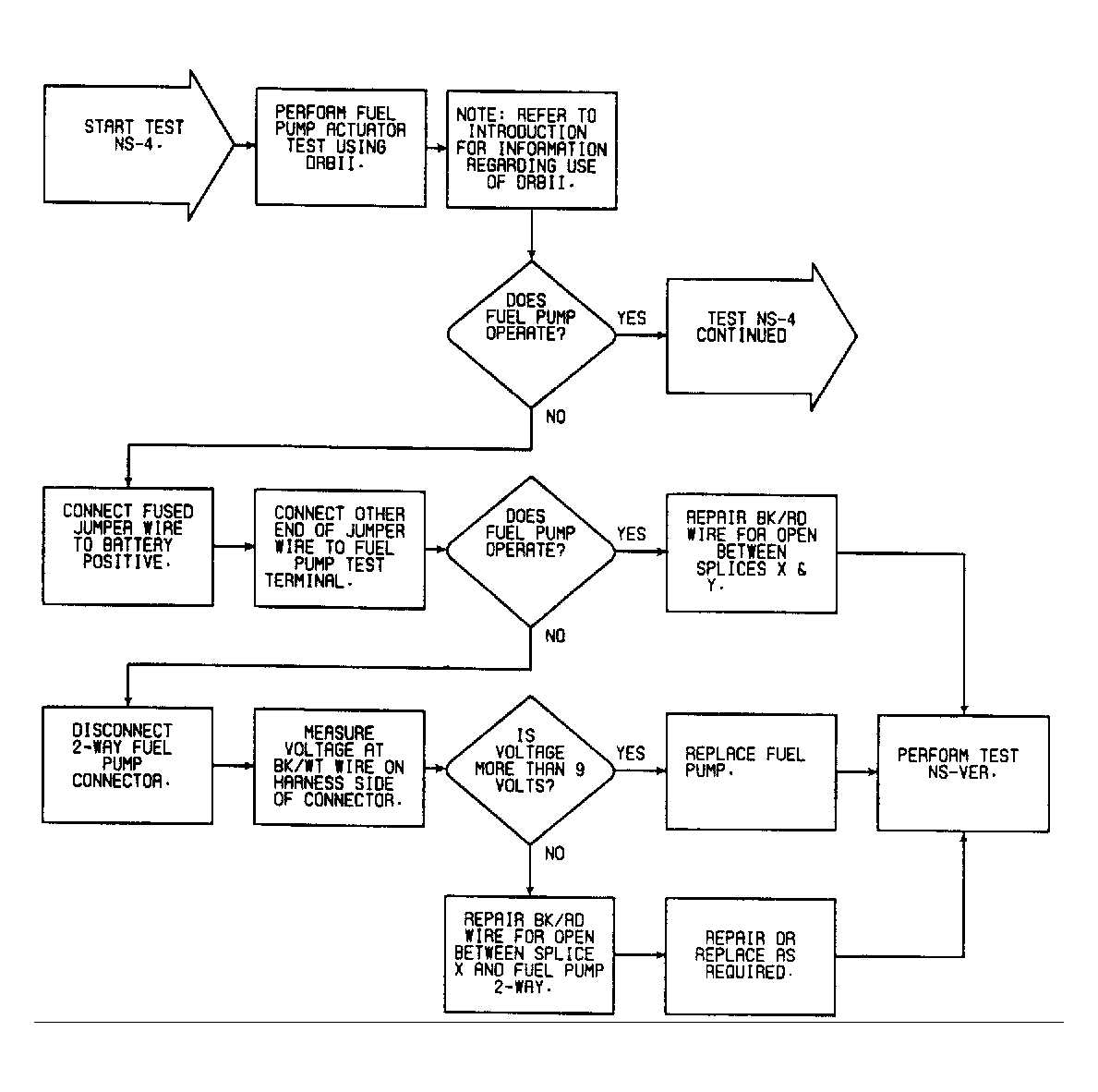

Fig 3: Flow Chart NS-4 (1.6L) (1 of 2)

G90G19923

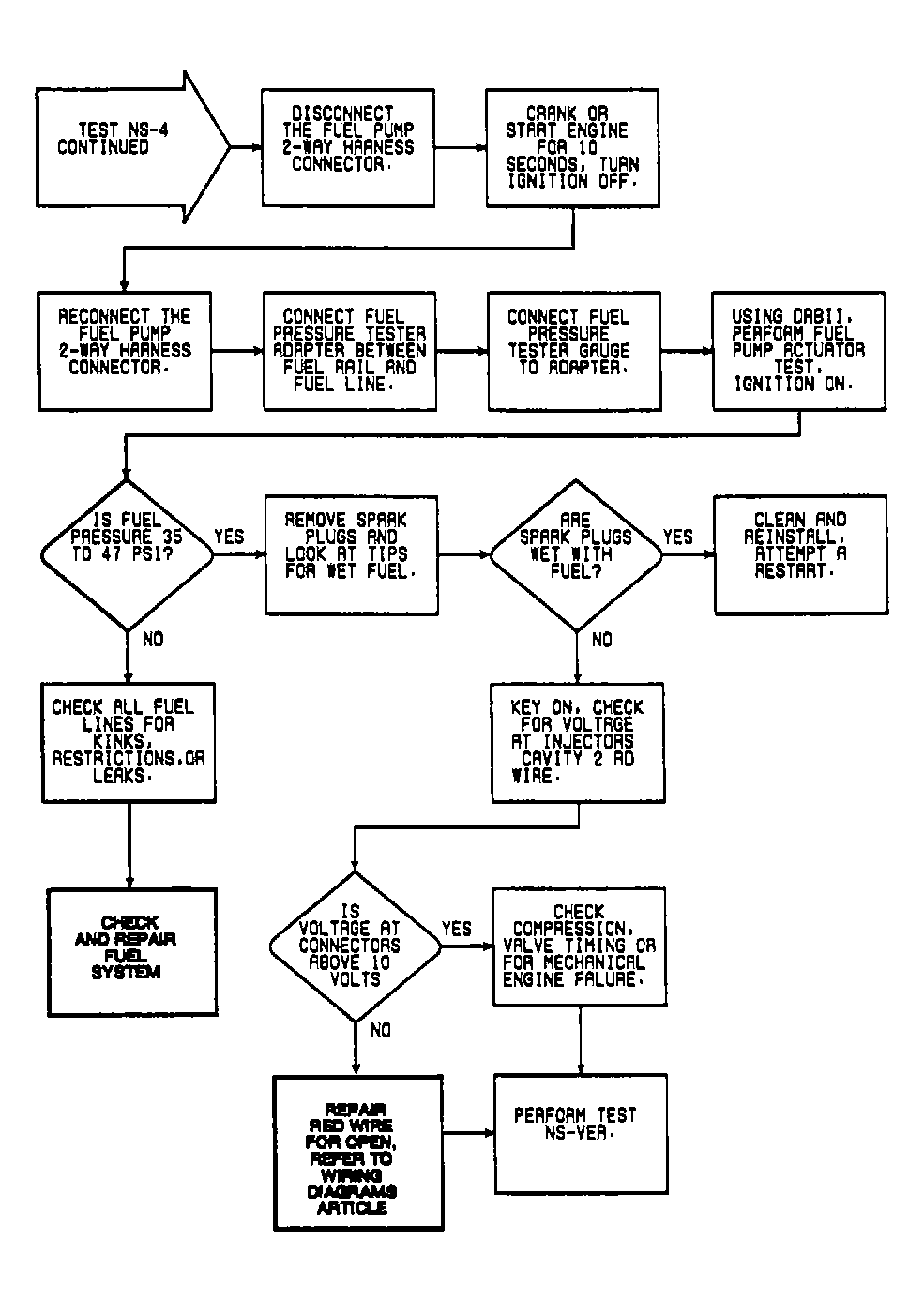

Fig 4: Flow Chart NS-4 (1.6L) (2 of 2)

G90H19924
