Dr-14: Code 43 EGR Temperature Sensor Circuit

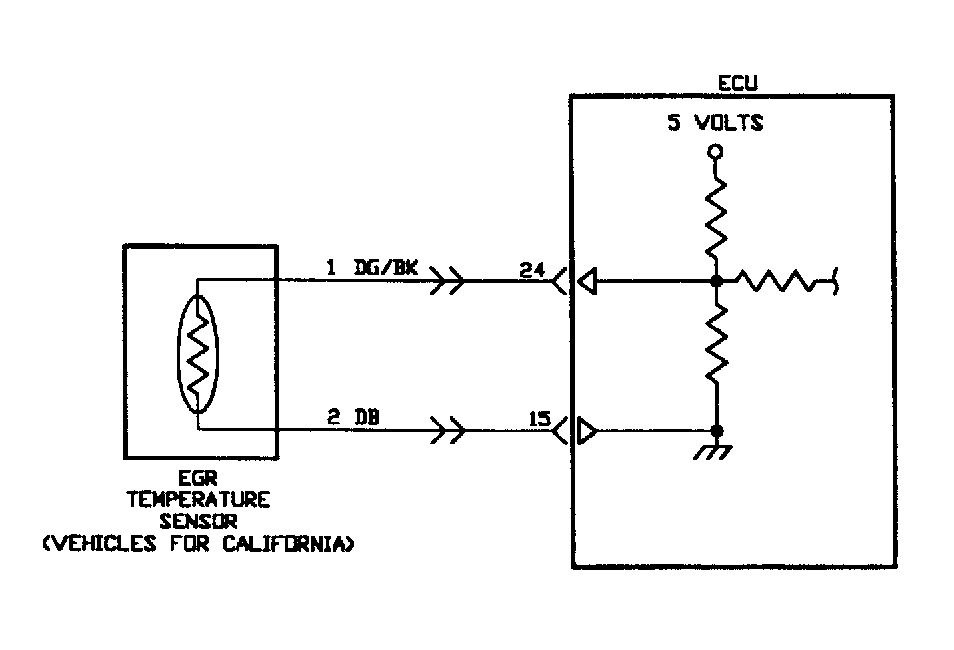

Fig 1: Circuit Diagram DR-14 (1.6L)

G90E15416

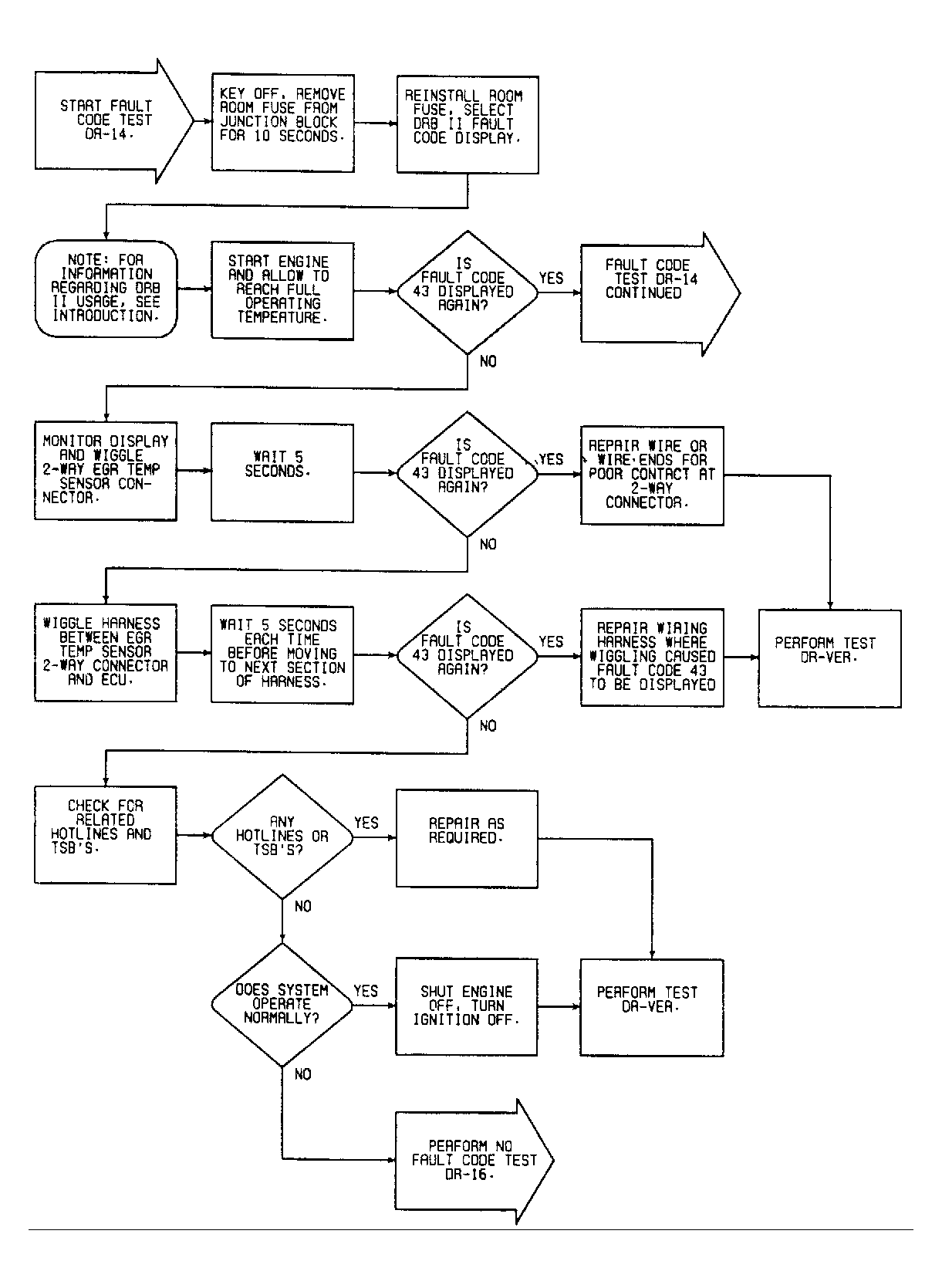

Fig 2: Flow Chart DR-14 (1.6L) (1 of 2)

G90H19957

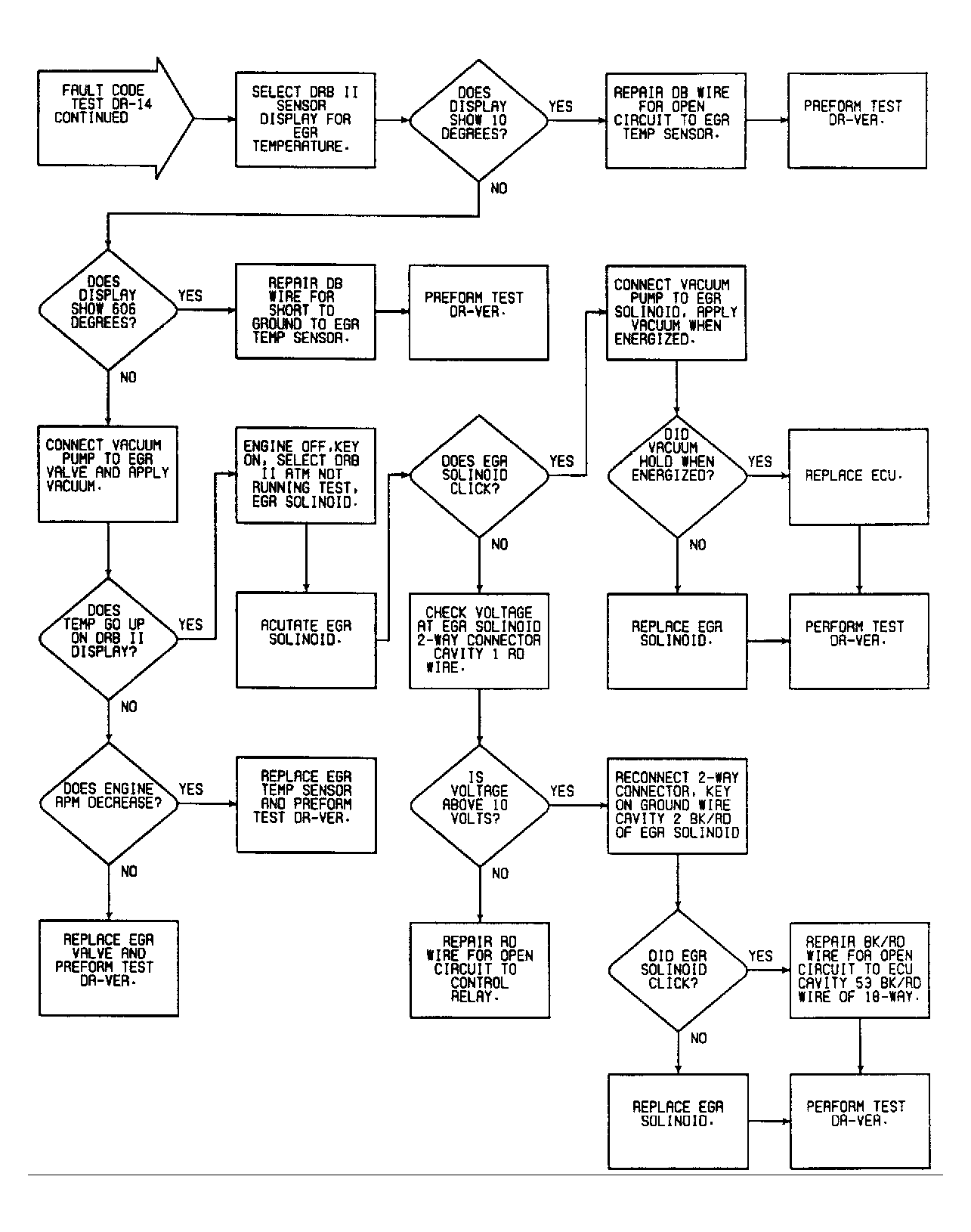

Fig 3: Flow Chart DR-14 (1.6L) (2 of 2)

G90I19958
