NS-3: Testing Fuel Pump Circuit

Fig 1: Circuit Diagram NS-3 (1.5L)

G90A15370

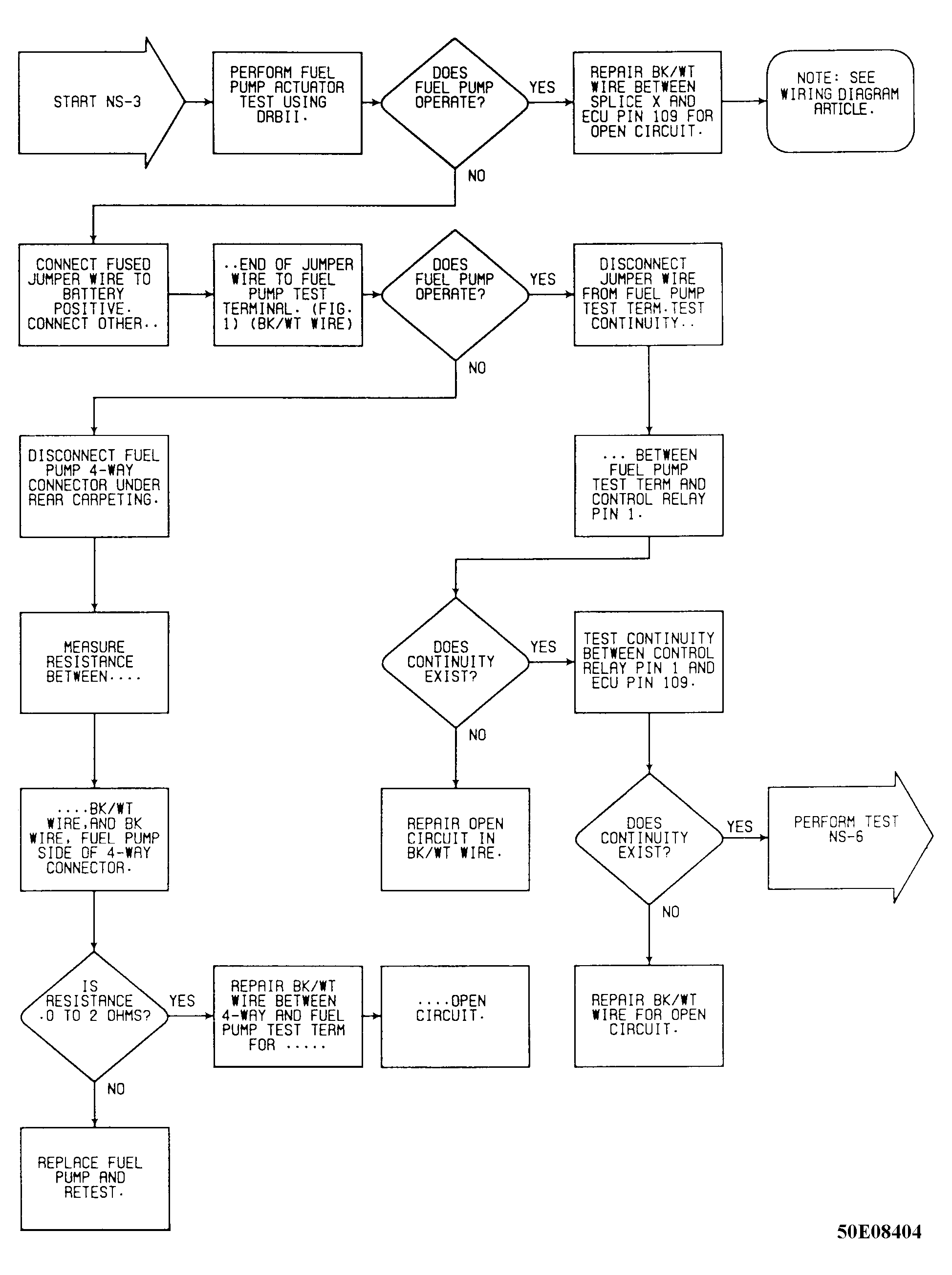

Fig 2: Flow Chart NS-3 (1.5L)

G50E08404
