Dr-1A: Checking Fault Codes

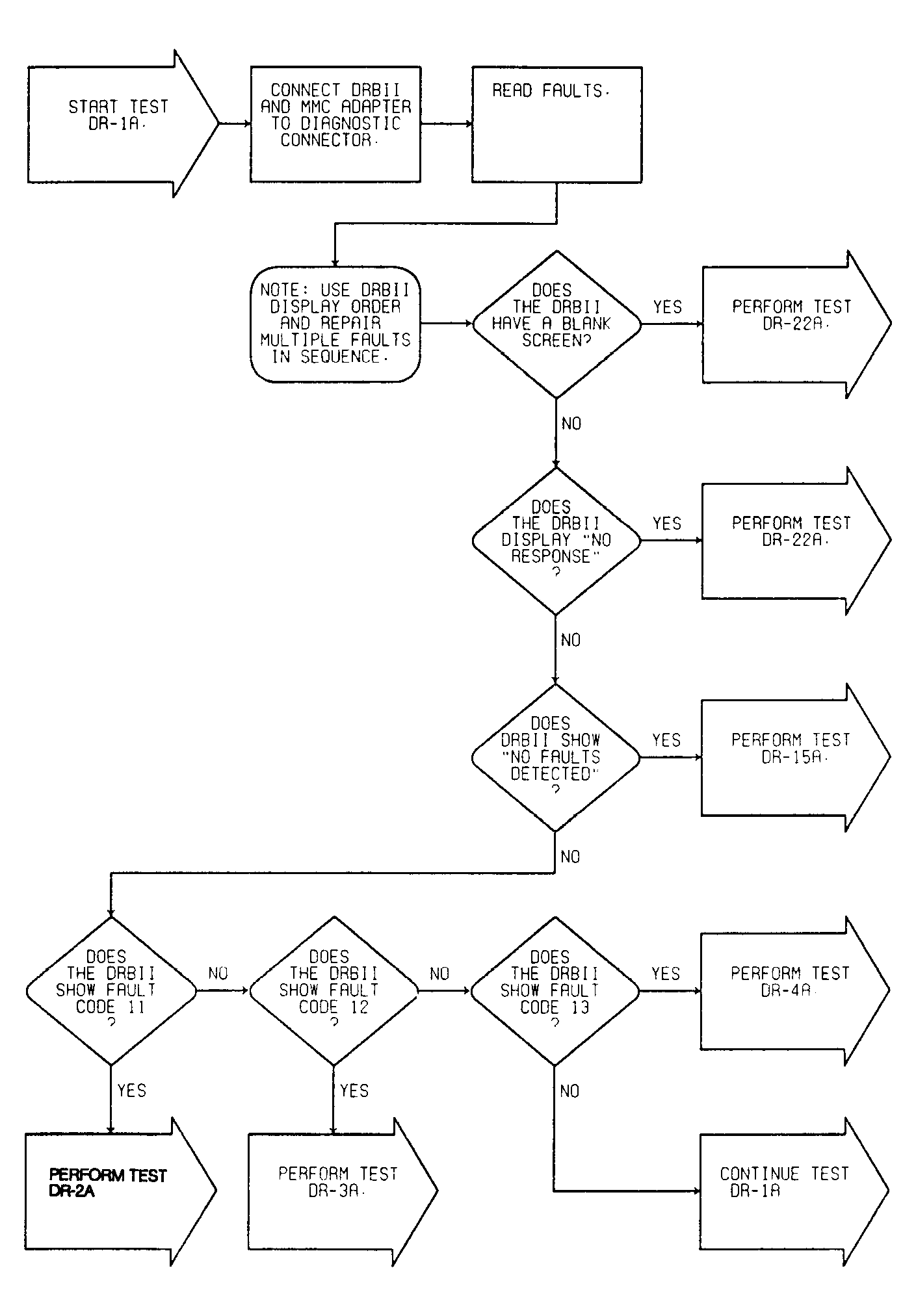

Fig 1: Driveability Test DR-1A: Diagnostic Flow Chart (1 of 2)

G91A11106

Fig 2: Test DR-1A

GB0044633

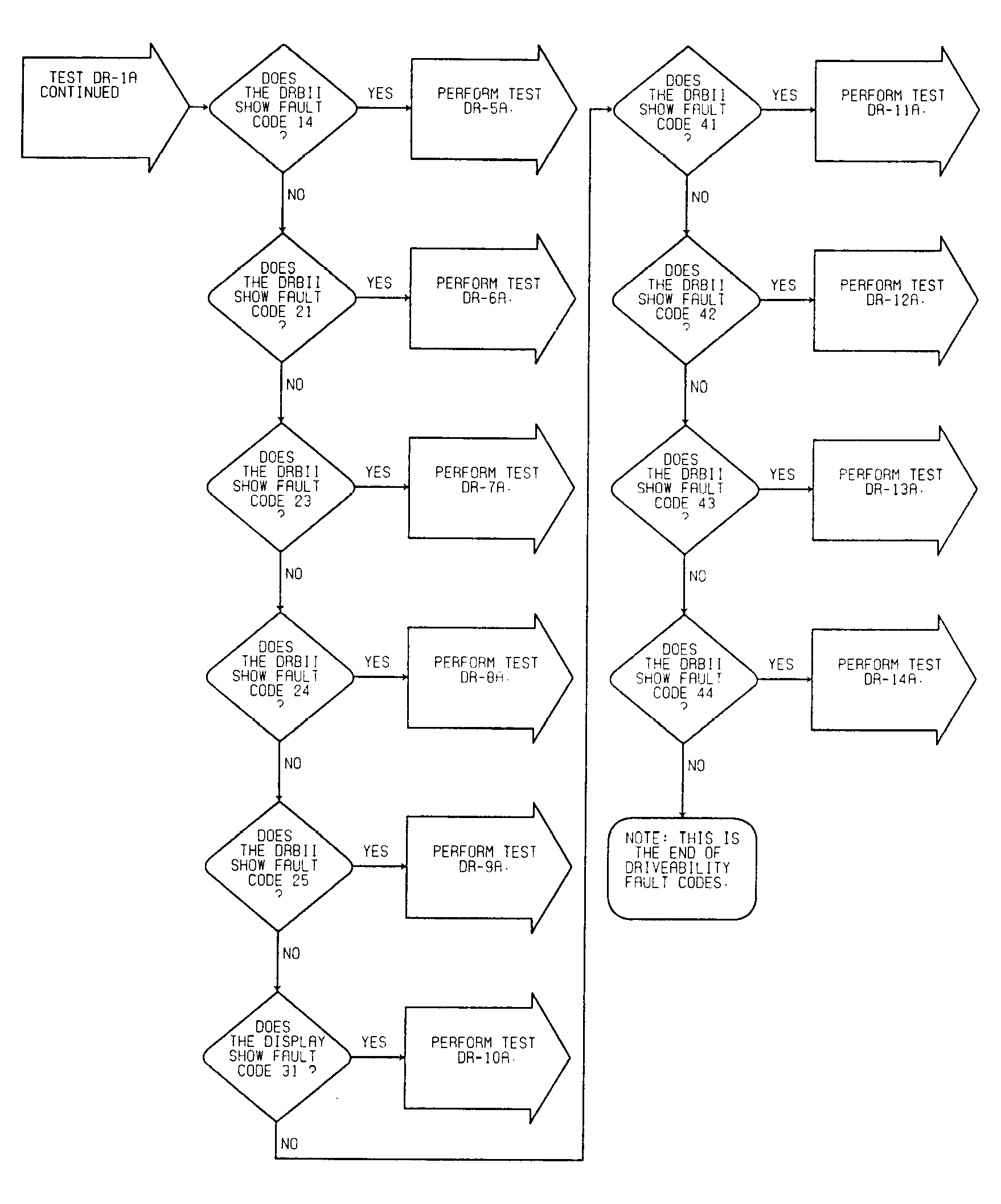

Fig 3: Driveability Test DR-1A: Diagnostic Flow Chart (2 of 2)

G91B11107

Fig 4: Test DR-1A Continued

GB0044634
