Dr-18A: Testing Fuel Pressure

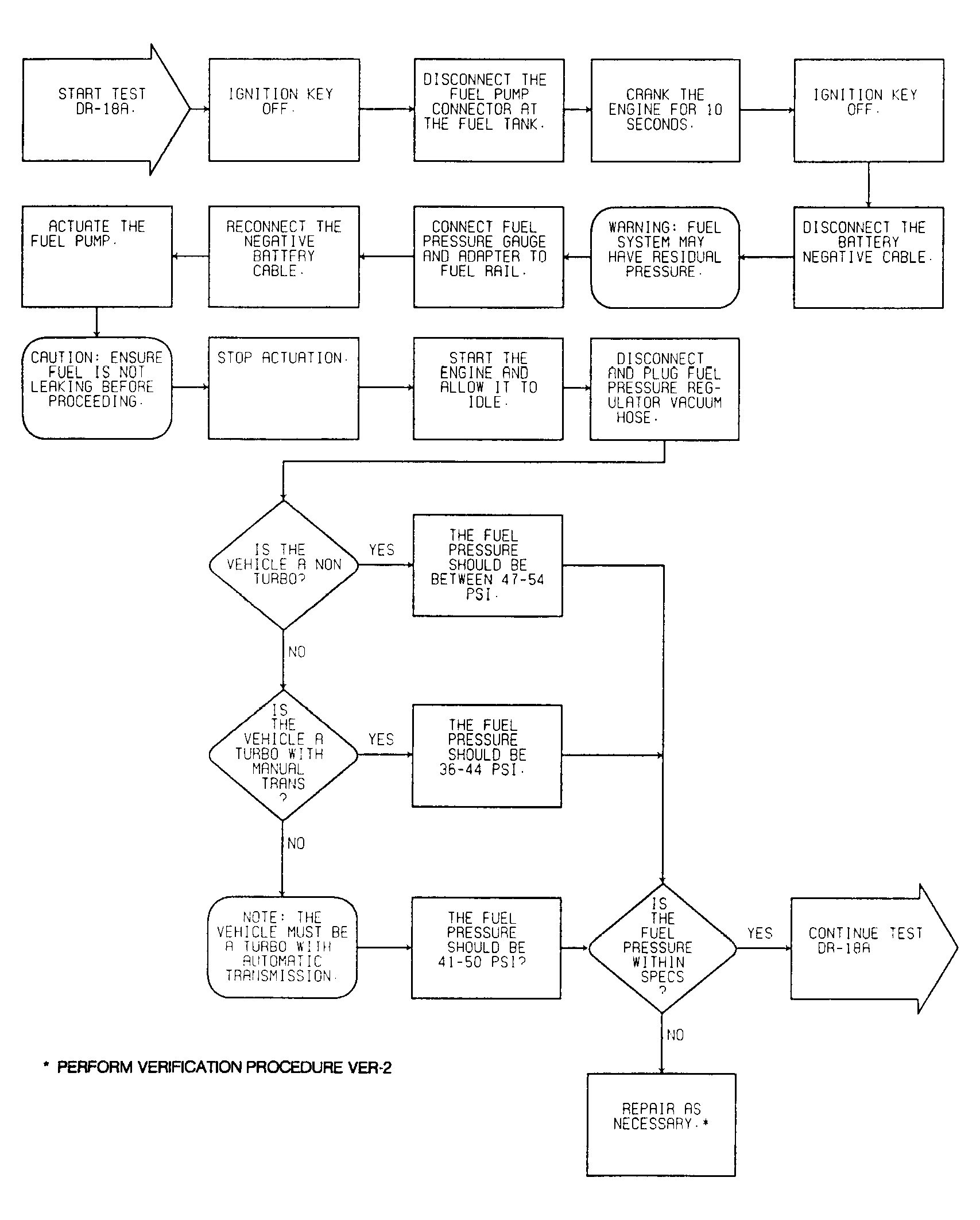

Fig 1: Driveability Test DR-18A: Diagnostic Flow Chart (1 of 2)
G91G11144
Fig 2: Test DR-18A
GB0044671

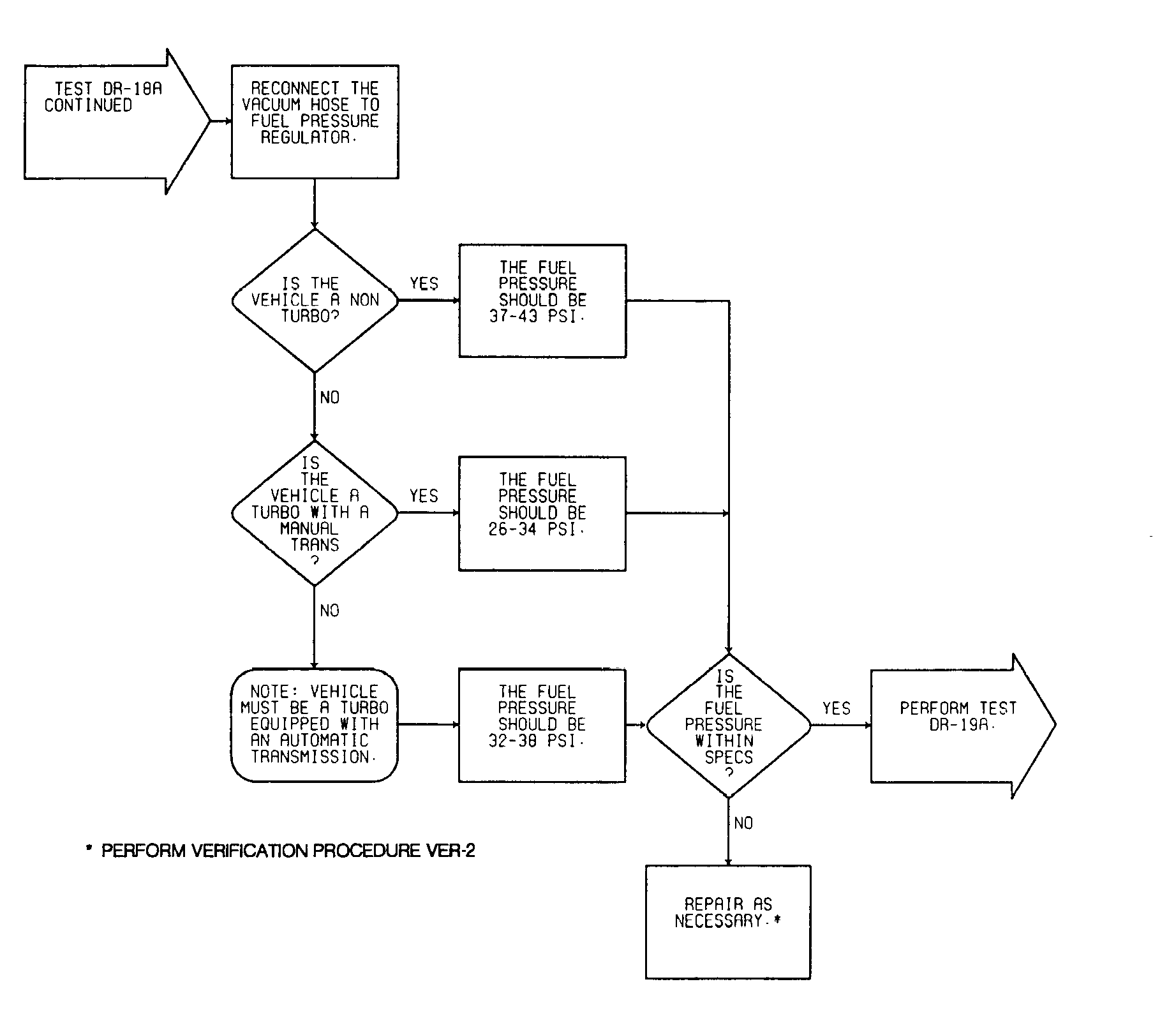

Fig 3: Driveability Test DR-18A: Diagnostic Flow Chart (2 of 2)
G91H11145
Fig 4: Test DR-18A Continued
GB0044672
