NS-5A: Repairing Fuel System
NS-5A: Repairing Fuel System

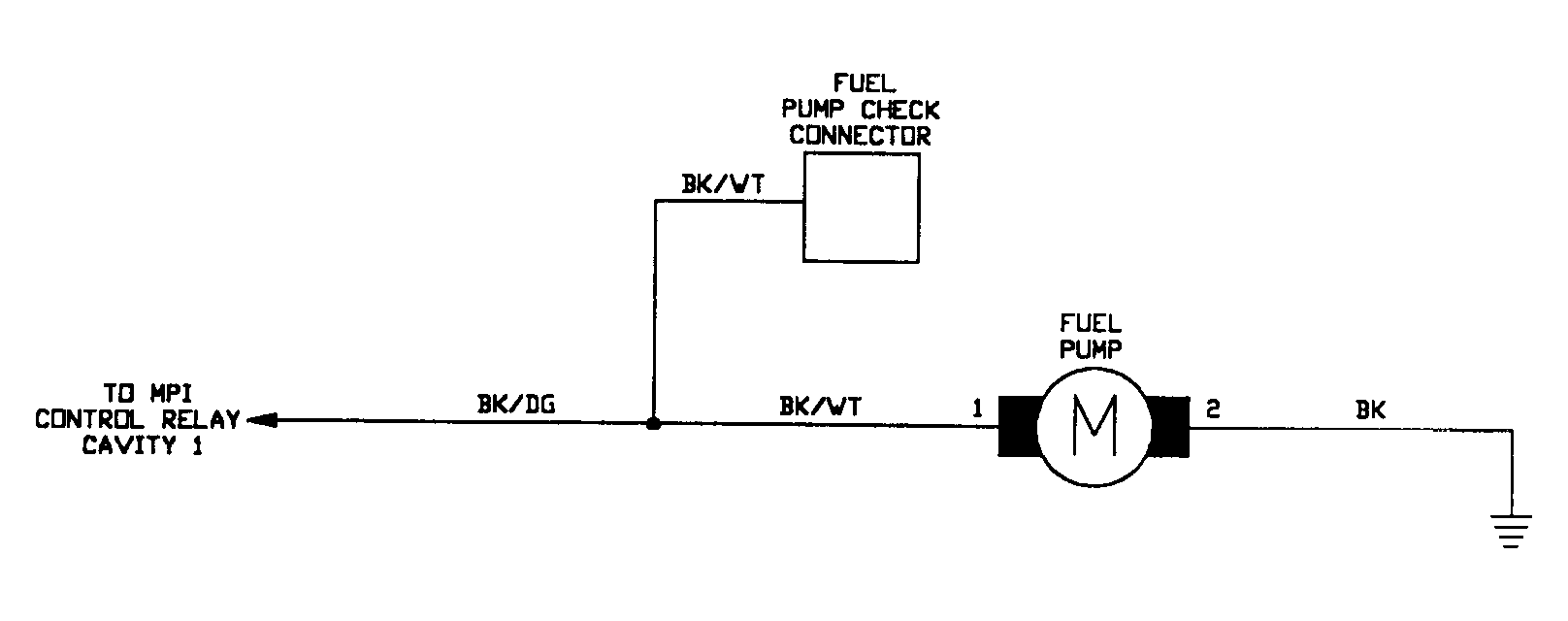

Fig 1: No Start Test NS-5A: Circuit Diagram

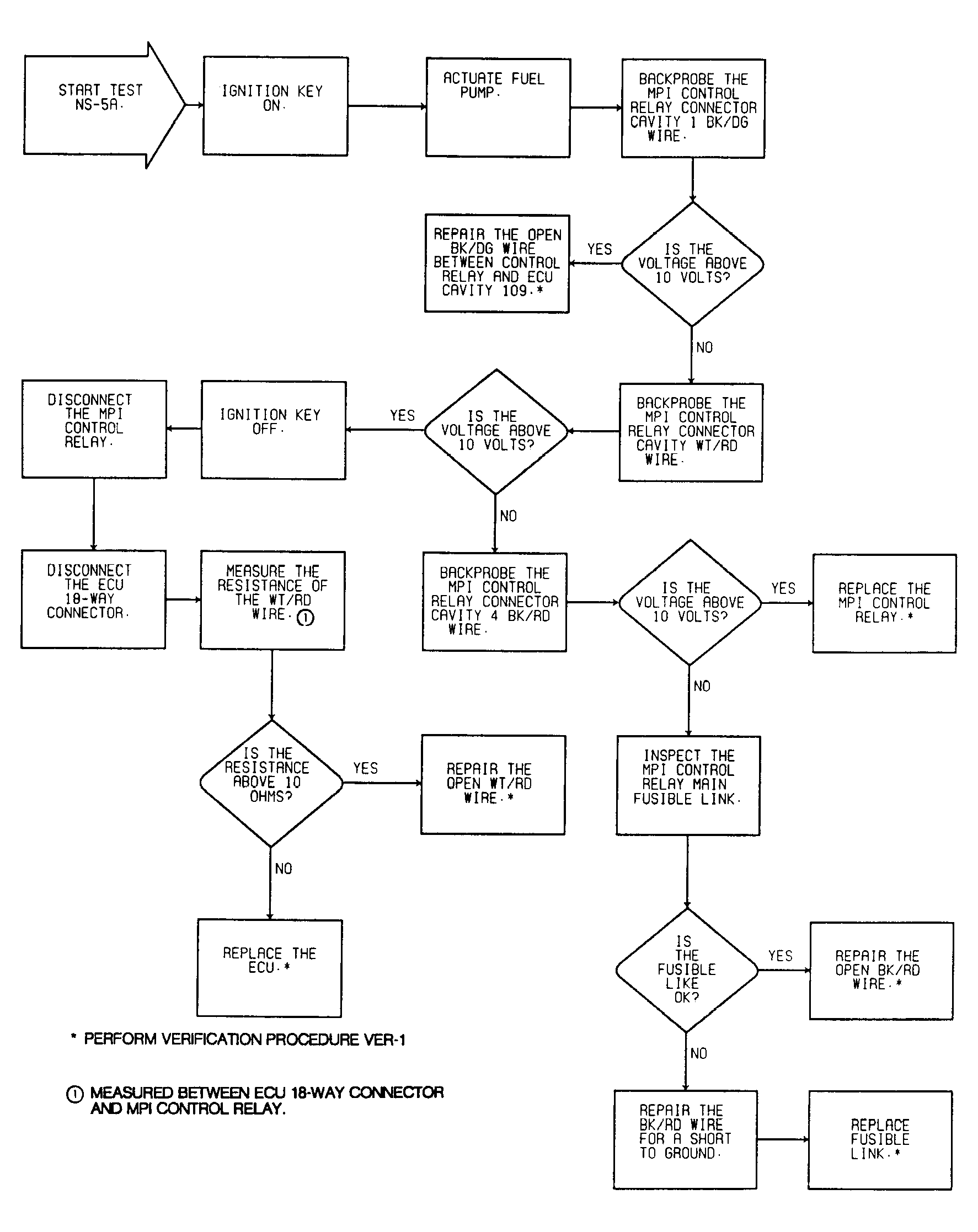

Fig 2: No Start Test NS-5A: Diagnostic Flow Chart
