Dr-2A: Testing Oxygen Sensor

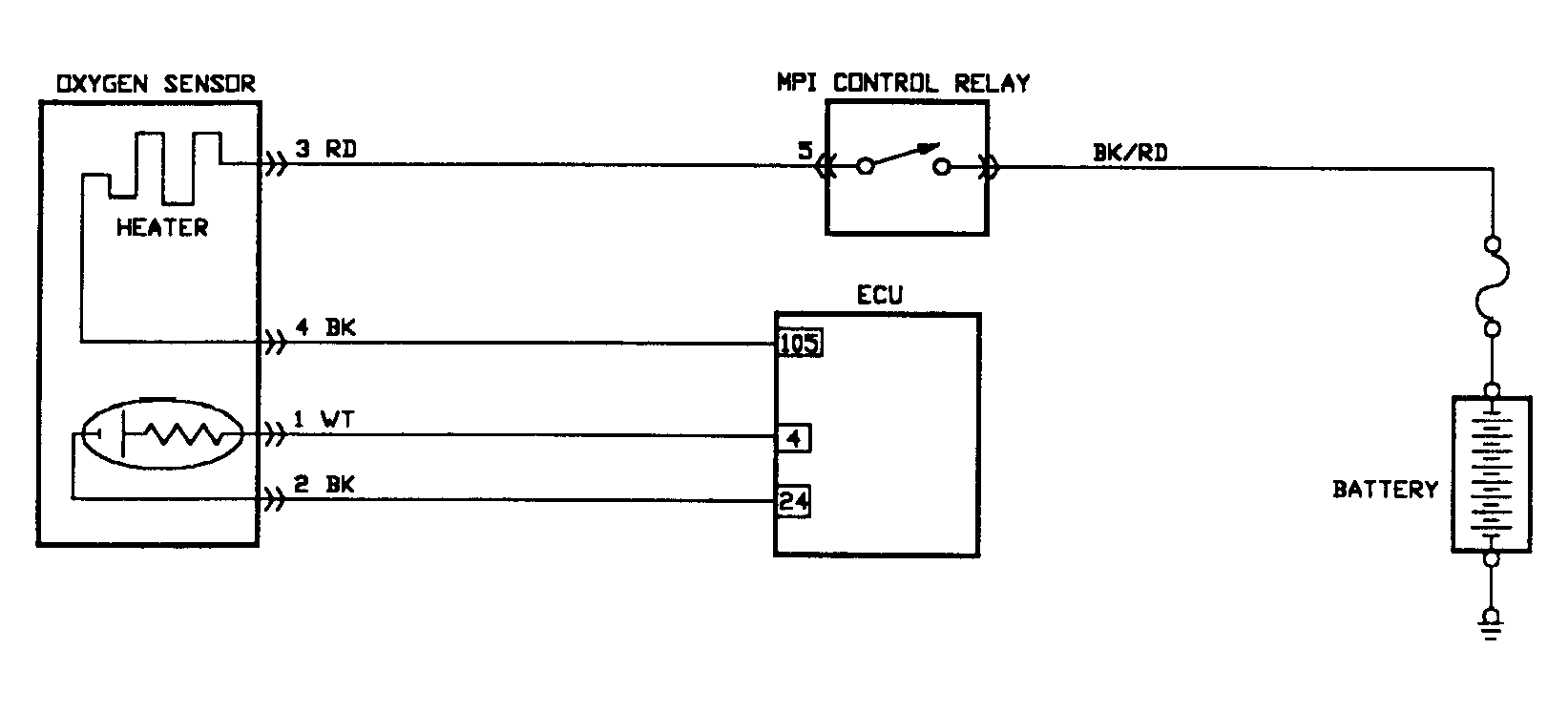

Fig 1: Driveability Test DR-2A: Circuit Diagram

G91D10697

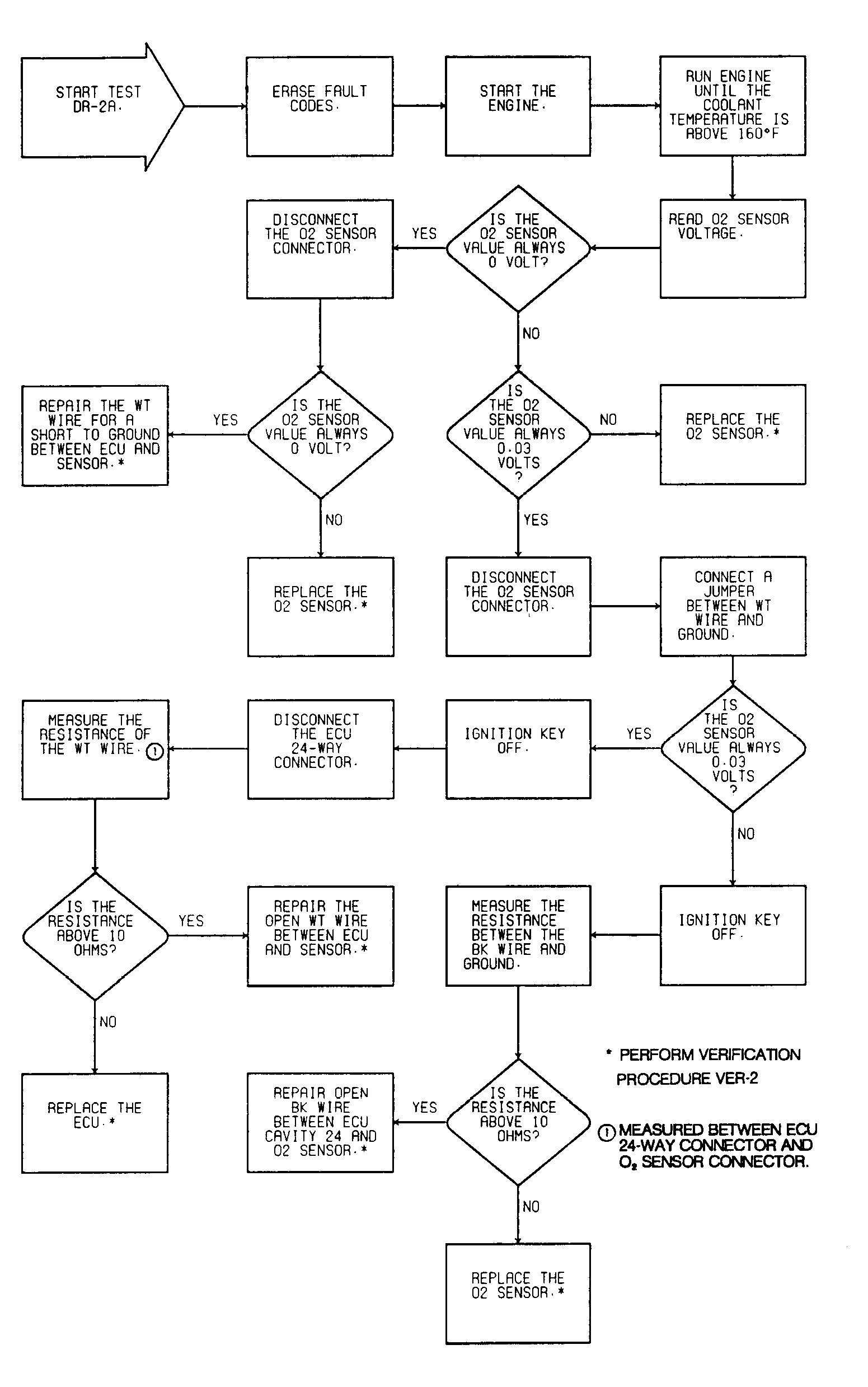

Fig 2: Driveability Test DR-2A: Diagnostic Flow Chart

G91G10724
