Dr-19A: Testing EGR System
Dr-19A: Testing EGR System

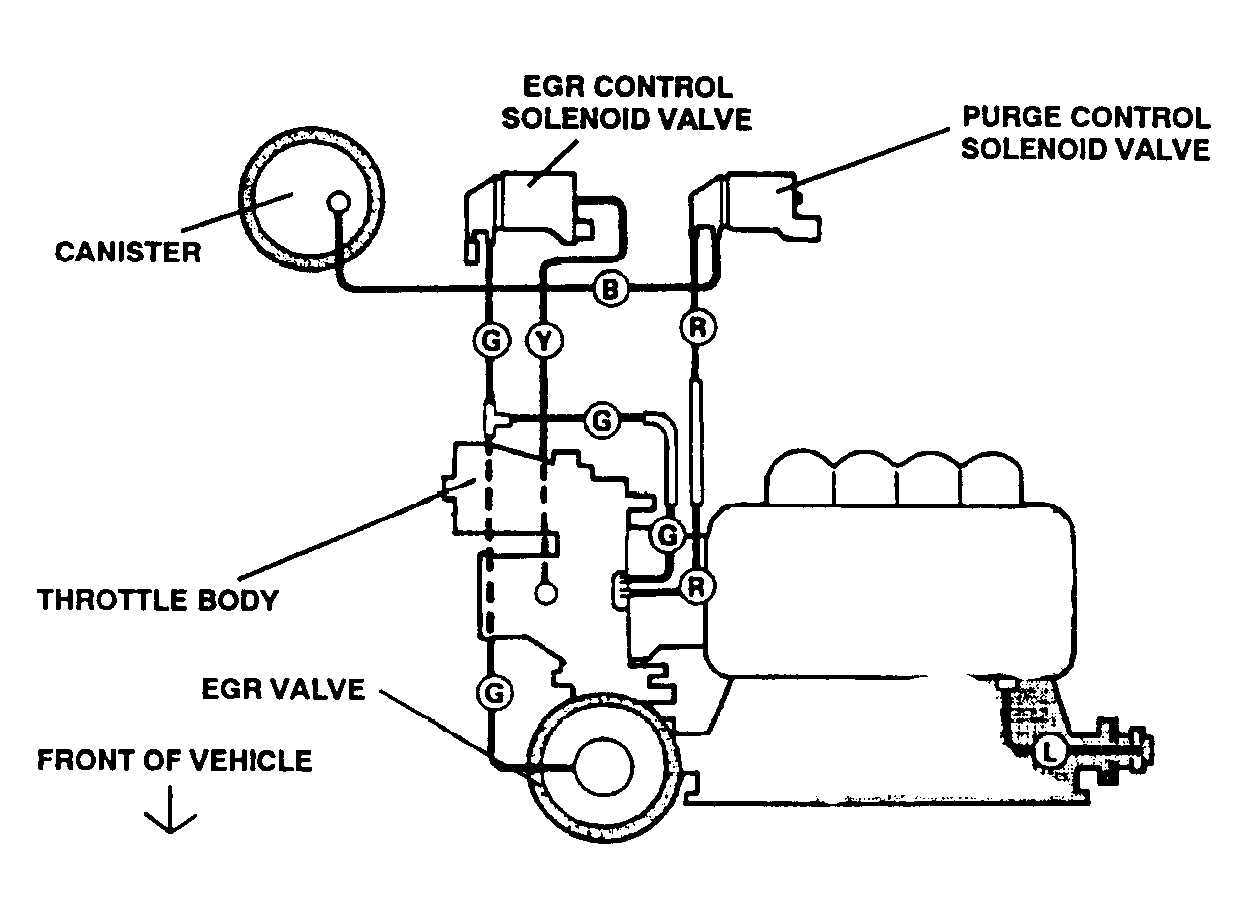

Fig 1: Driveability Test DR-19A: Circuit Diagram

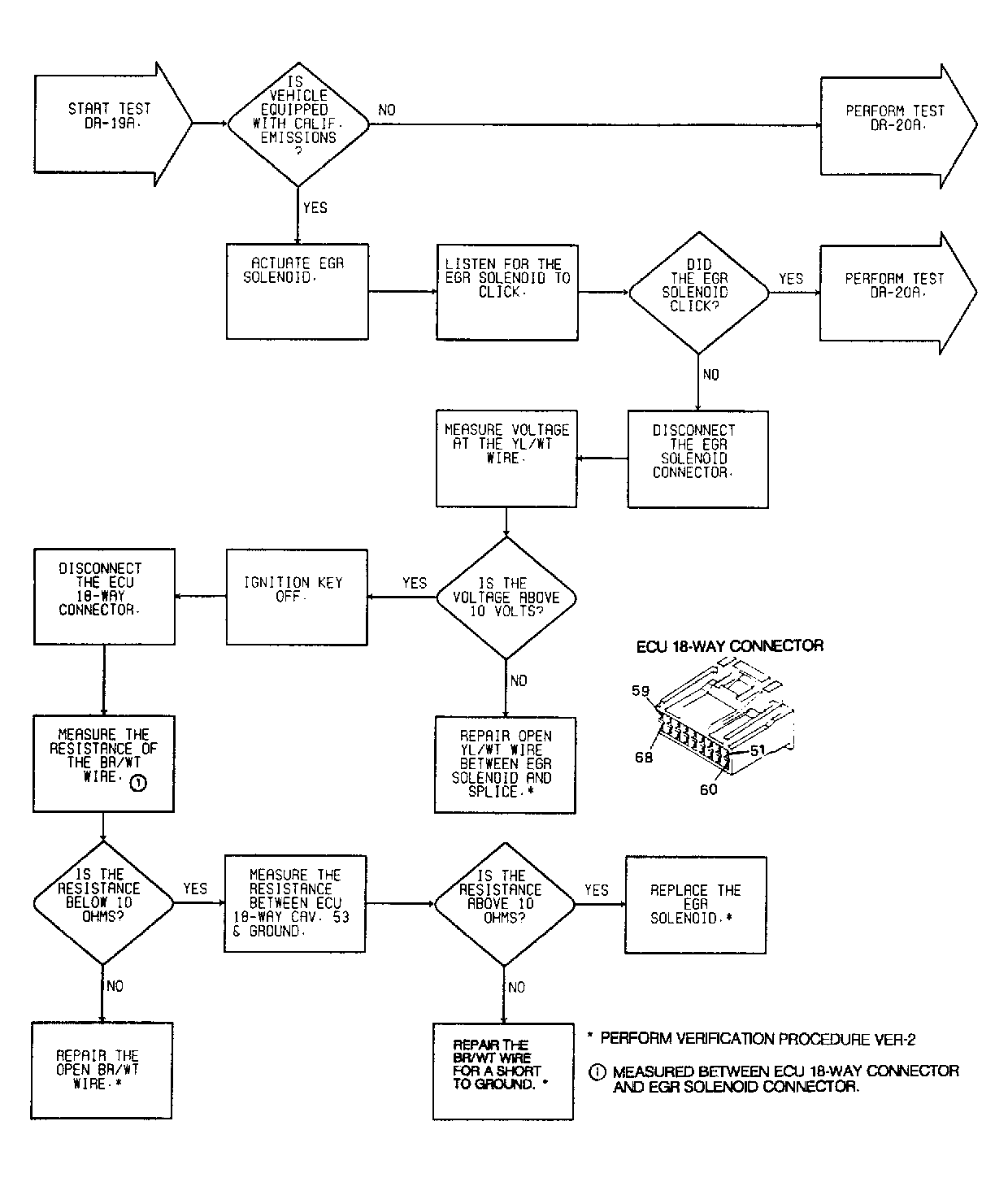

Fig 2: Driveability Test DR-19A: Diagnostic Flow Chart
