Removal (Stealth & 3000GT Front)
- Disconnect negative battery cable. Drain engine oil and coolant. Remove radiator. Disconnect exhaust pipe. Remove air intake hose, air hoses and air pipe. Remove alternator and belt. Remove oil dipstick guide.

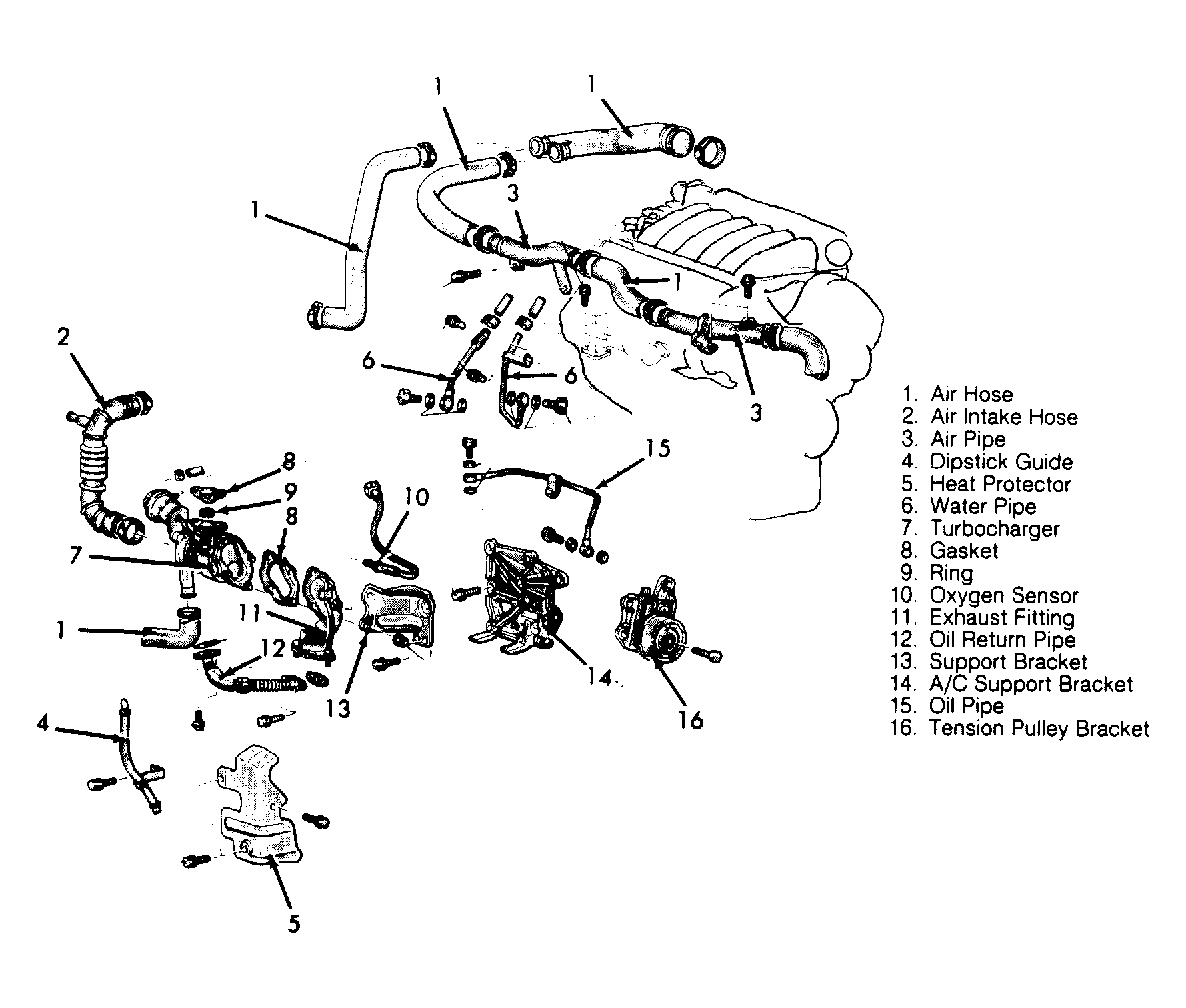

- Remove heat protector. Disconnect oxygen sensor electrical connector. Remove oil return pipe. Remove turbocharger support bracket and remove turbocharger from exhaust manifold. See Fig 1 .
