Wiring Diagrams

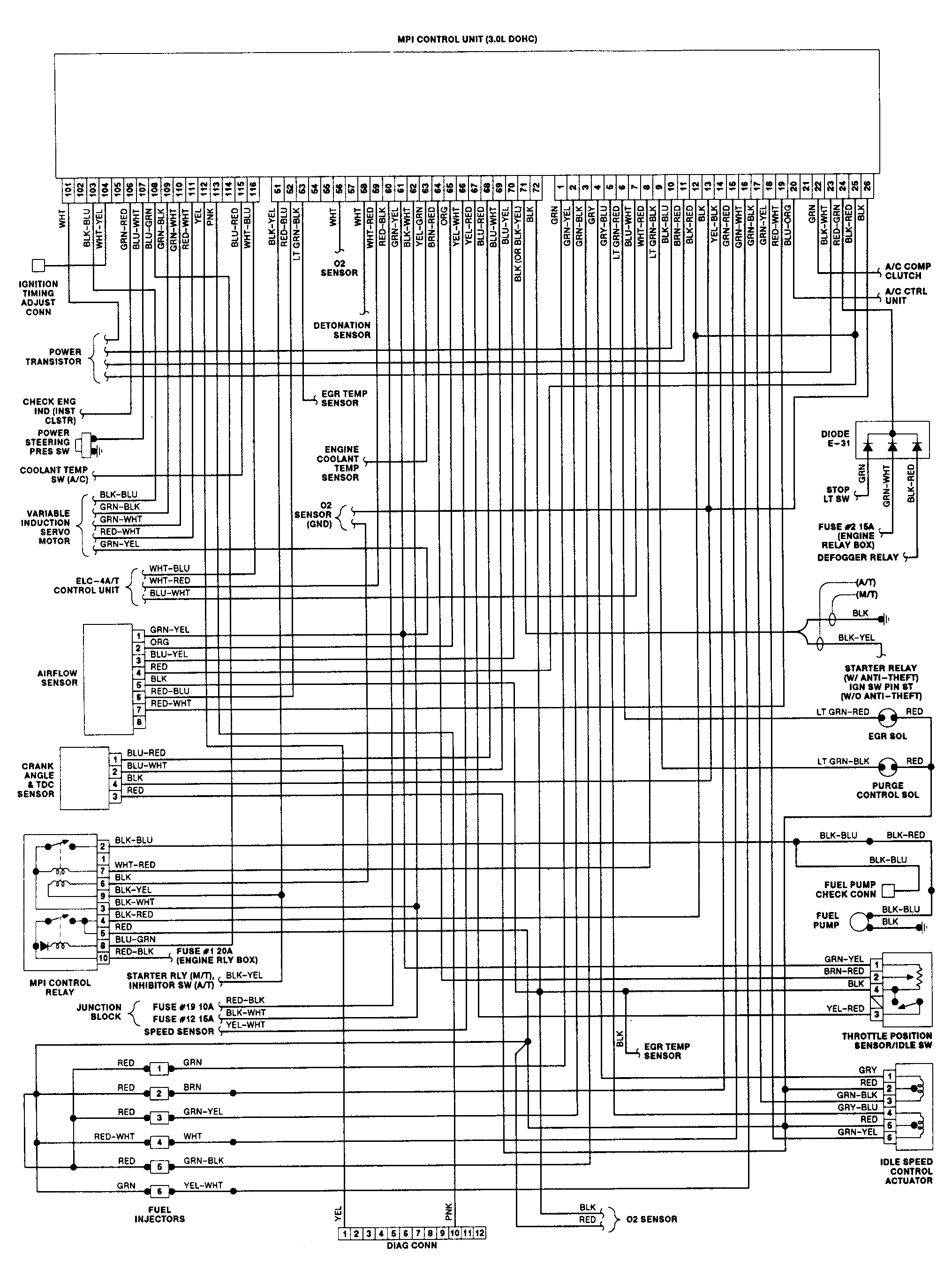

Fig 1: Wiring Diagram (3000GT 3.0L - DOHC - 1 Of 2)
G91B17625

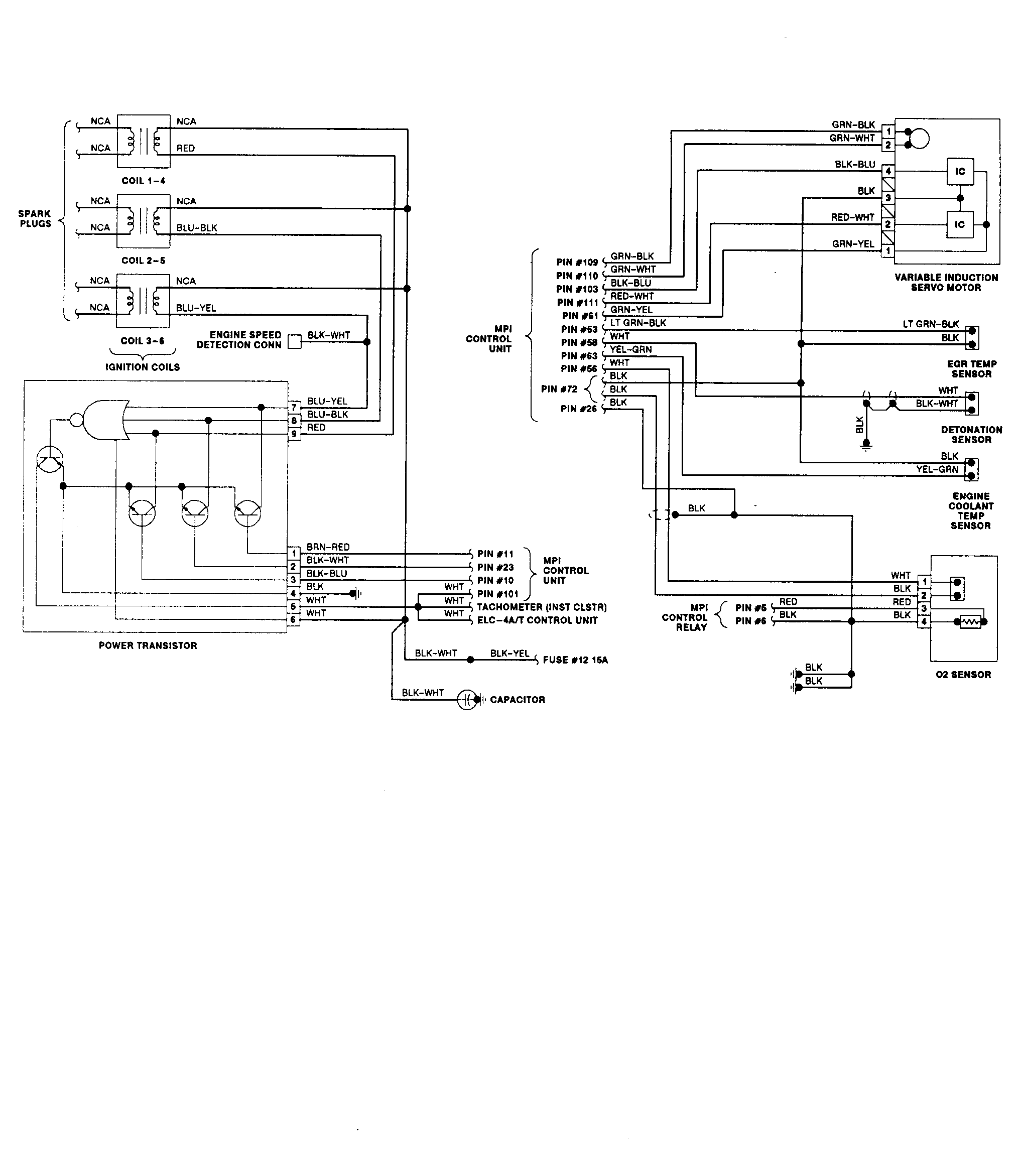

Fig 2: Wiring Diagram (3000GT 3.0L - DOHC - 2 Of 2)
G91C17626

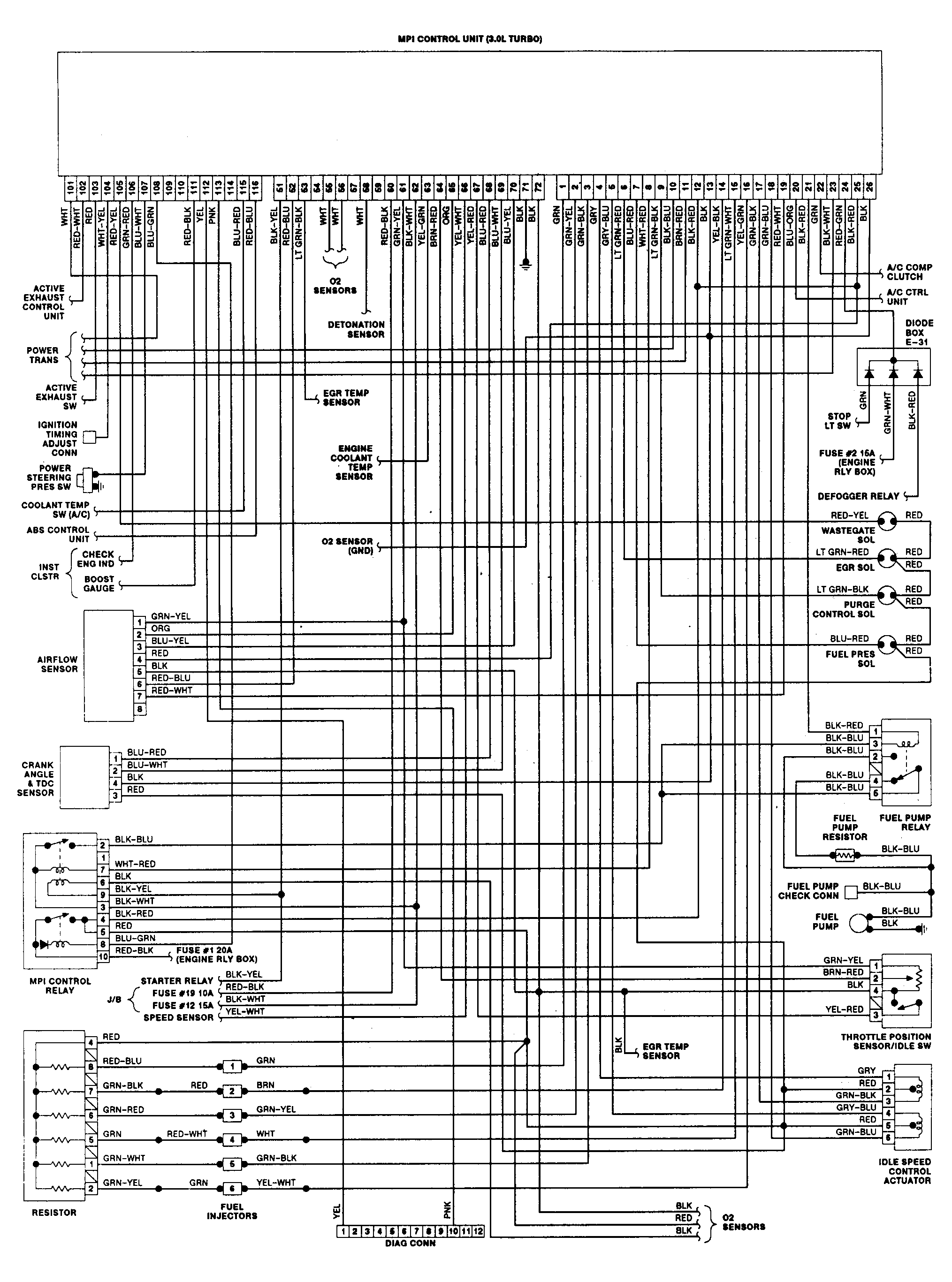

Fig 3: Wiring Diagram (3000GT 3.0L - Turbo - 1 Of 2)
G91H17670

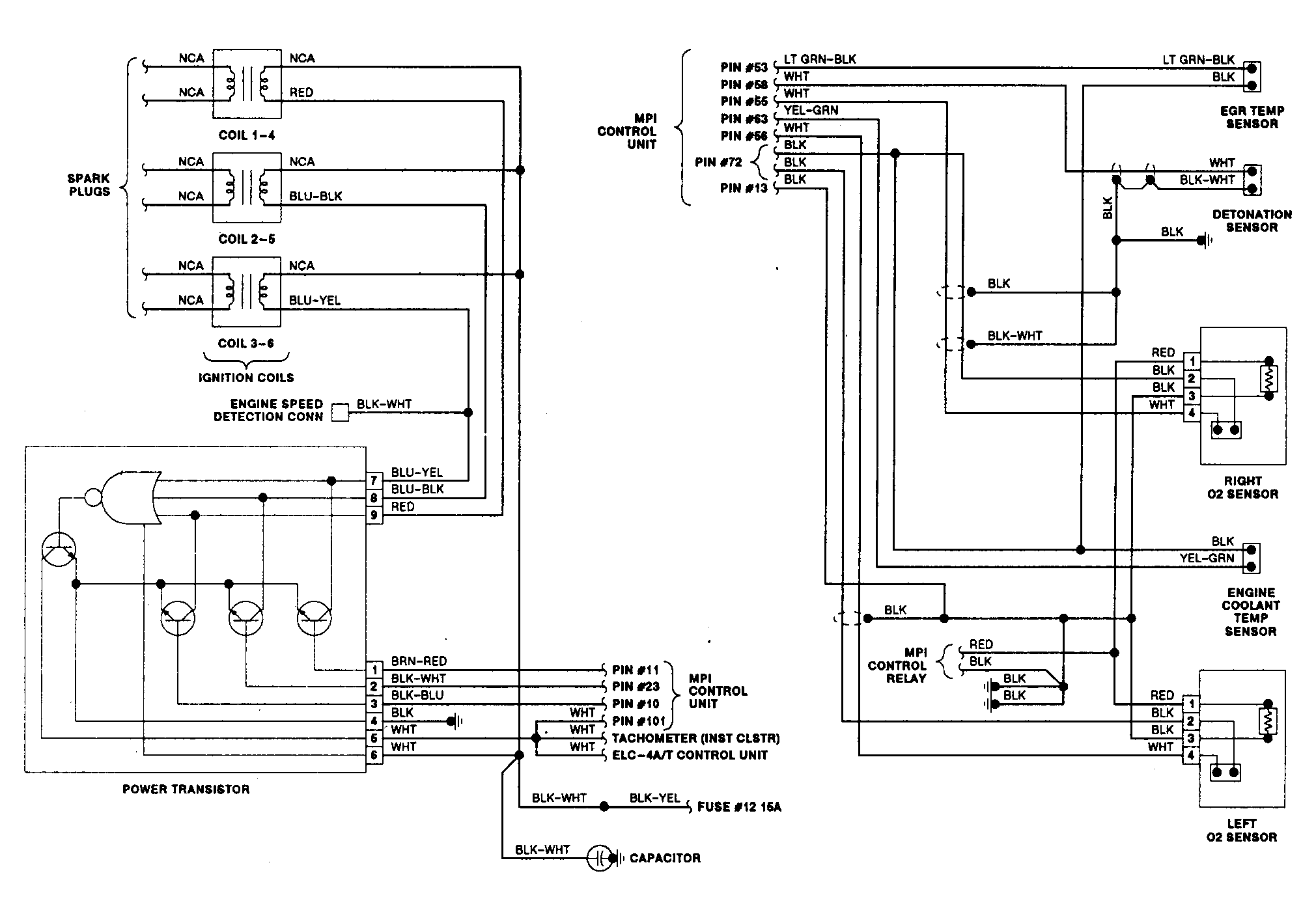

Fig 4: Wiring Diagram (3000GT 3.0L - Turbo - 2 Of 2)
G91I17671
