Throttle Body Cleaning Procedure

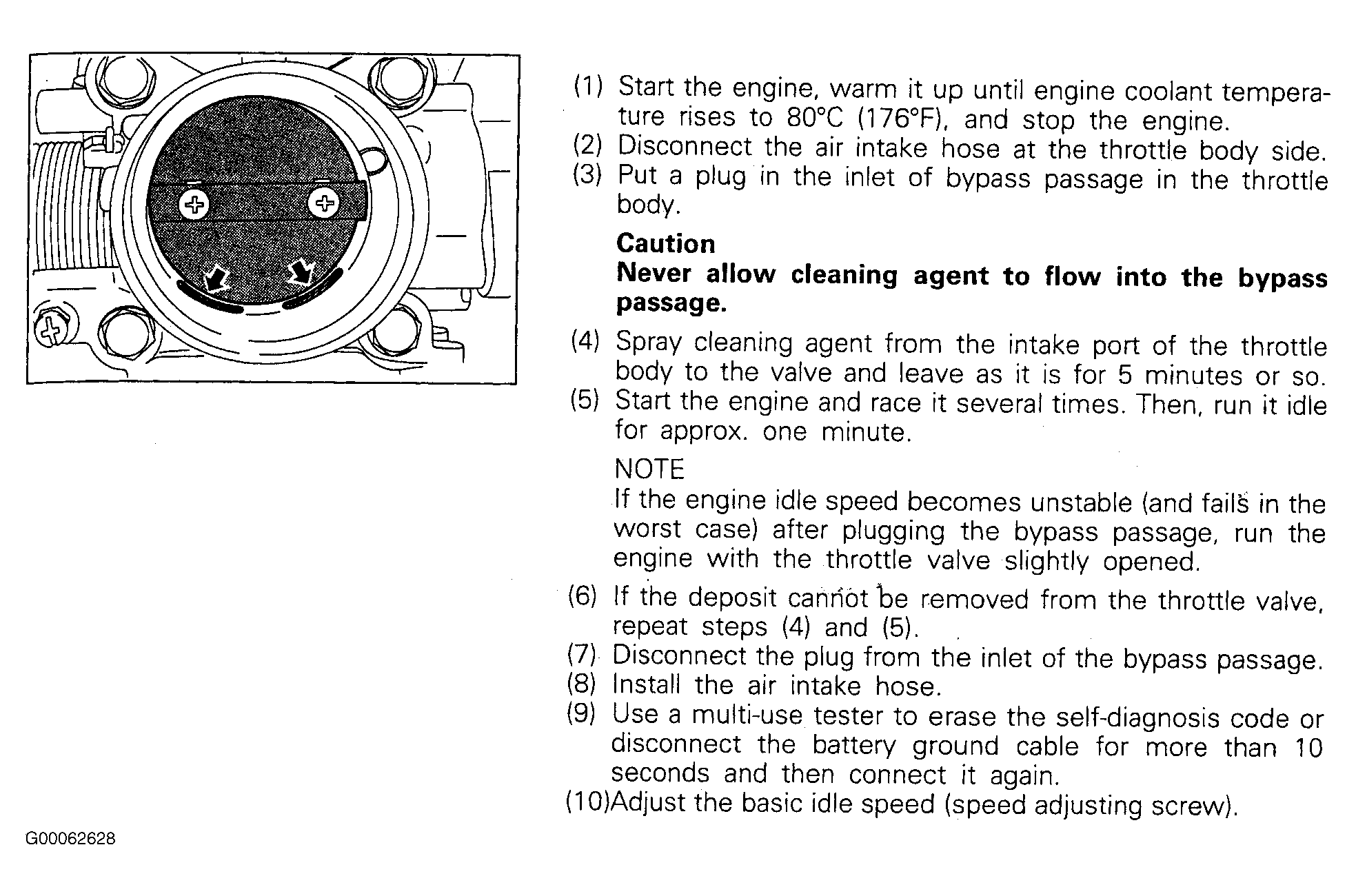

Fig 1: Throttle Body Cleaning Procedure - Steps 1-10
G00062628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
