DTC 31: Detonation Sensor
DTC 31: Detonation Sensor

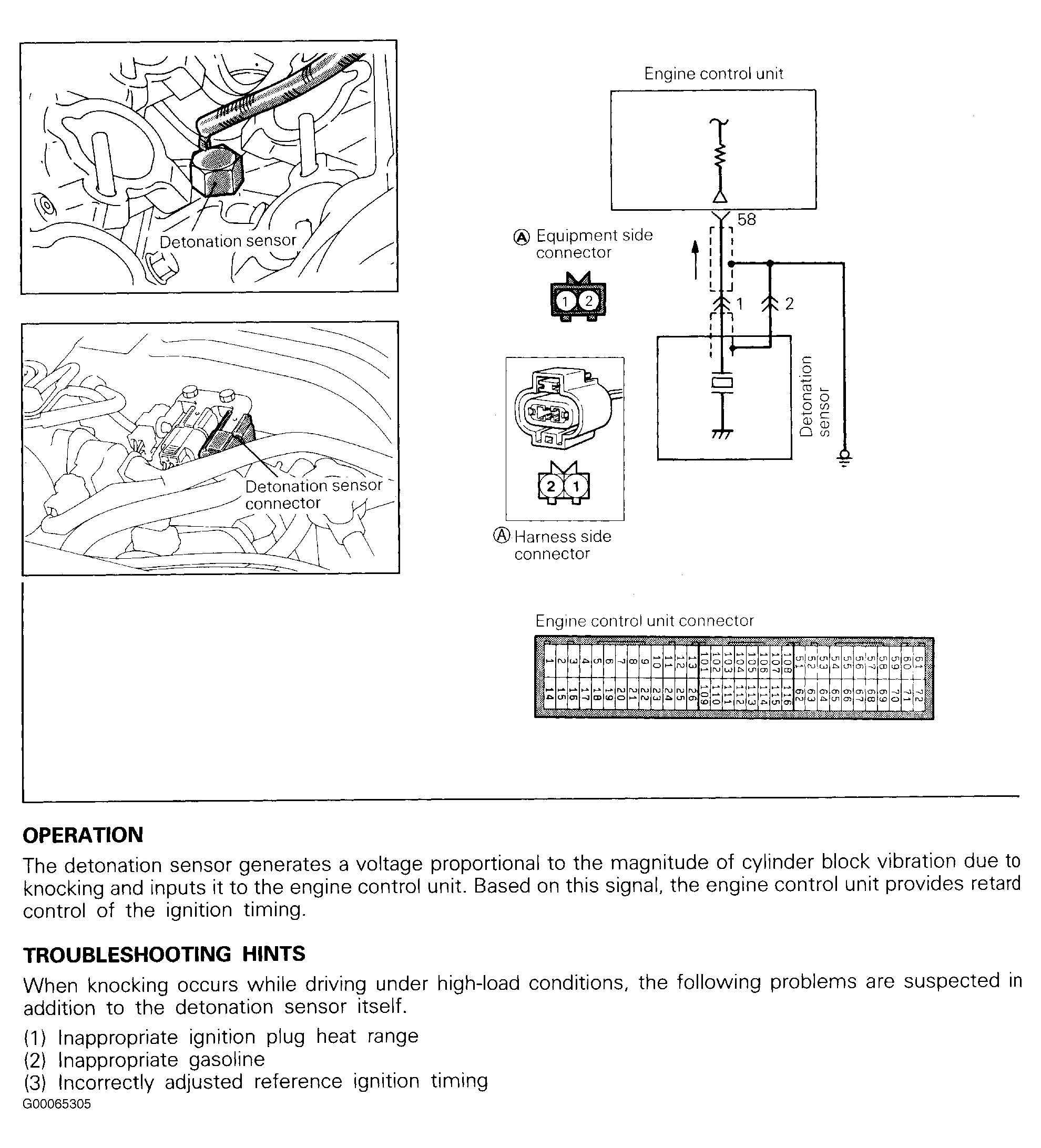

Fig 1: DTC 31: Detonation Sensor (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

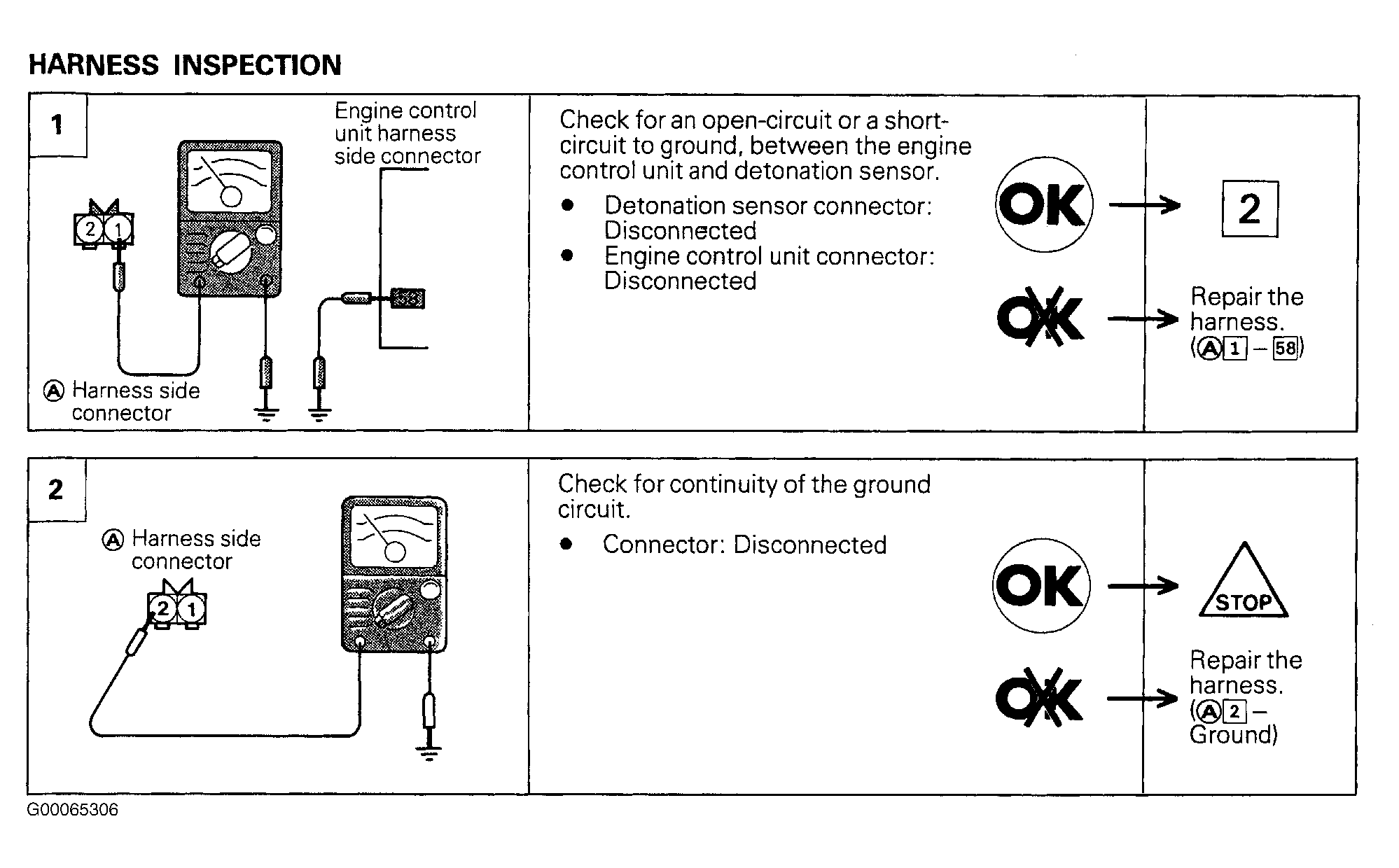

Fig 2: DTC 31: Detonation Sensor - Steps 1 & 2 (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
