Fuel Pressure Test

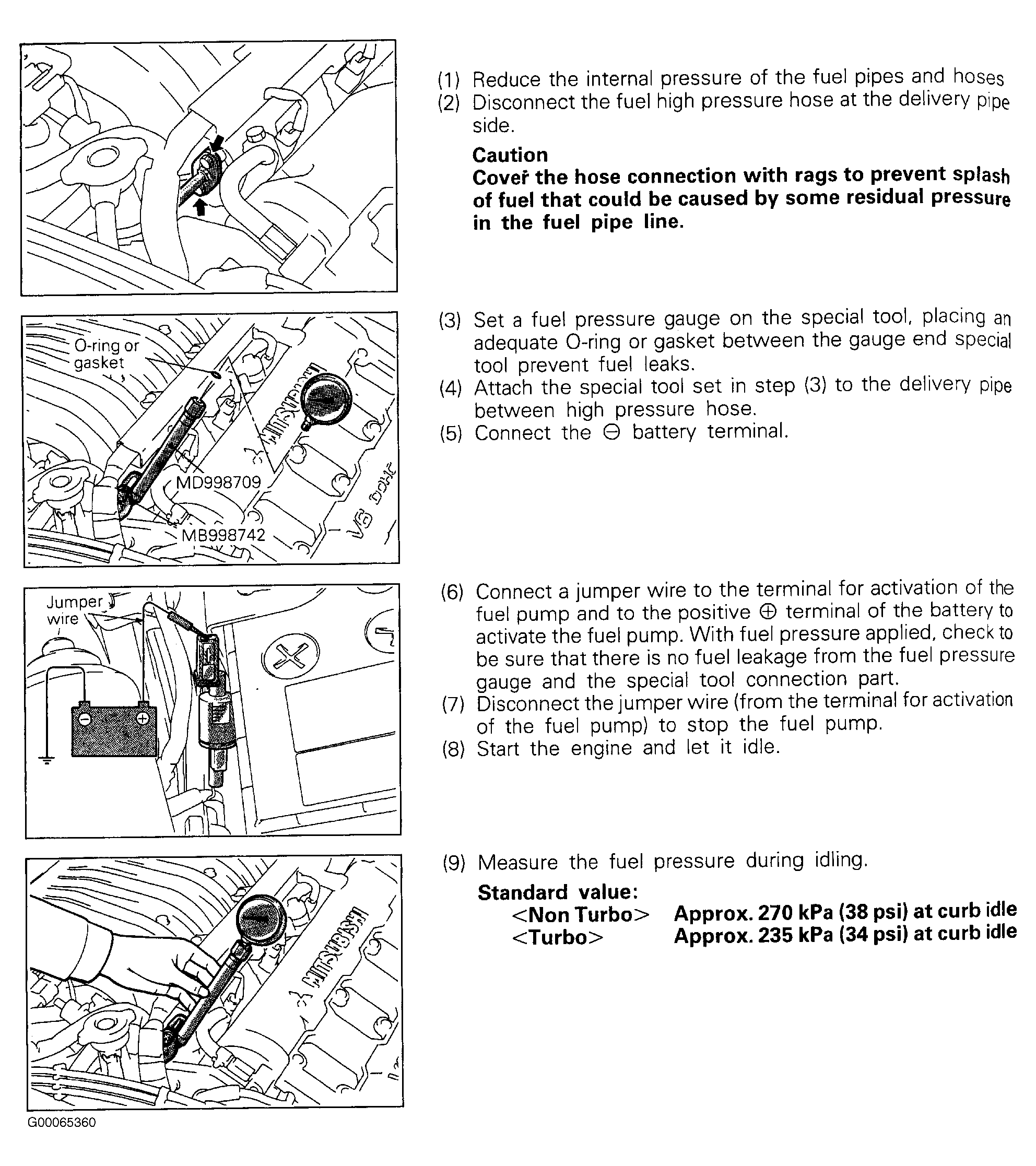

Fig 1: Fuel Pressure Test - Steps 1-9 (1 Of 3)
G00065360Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

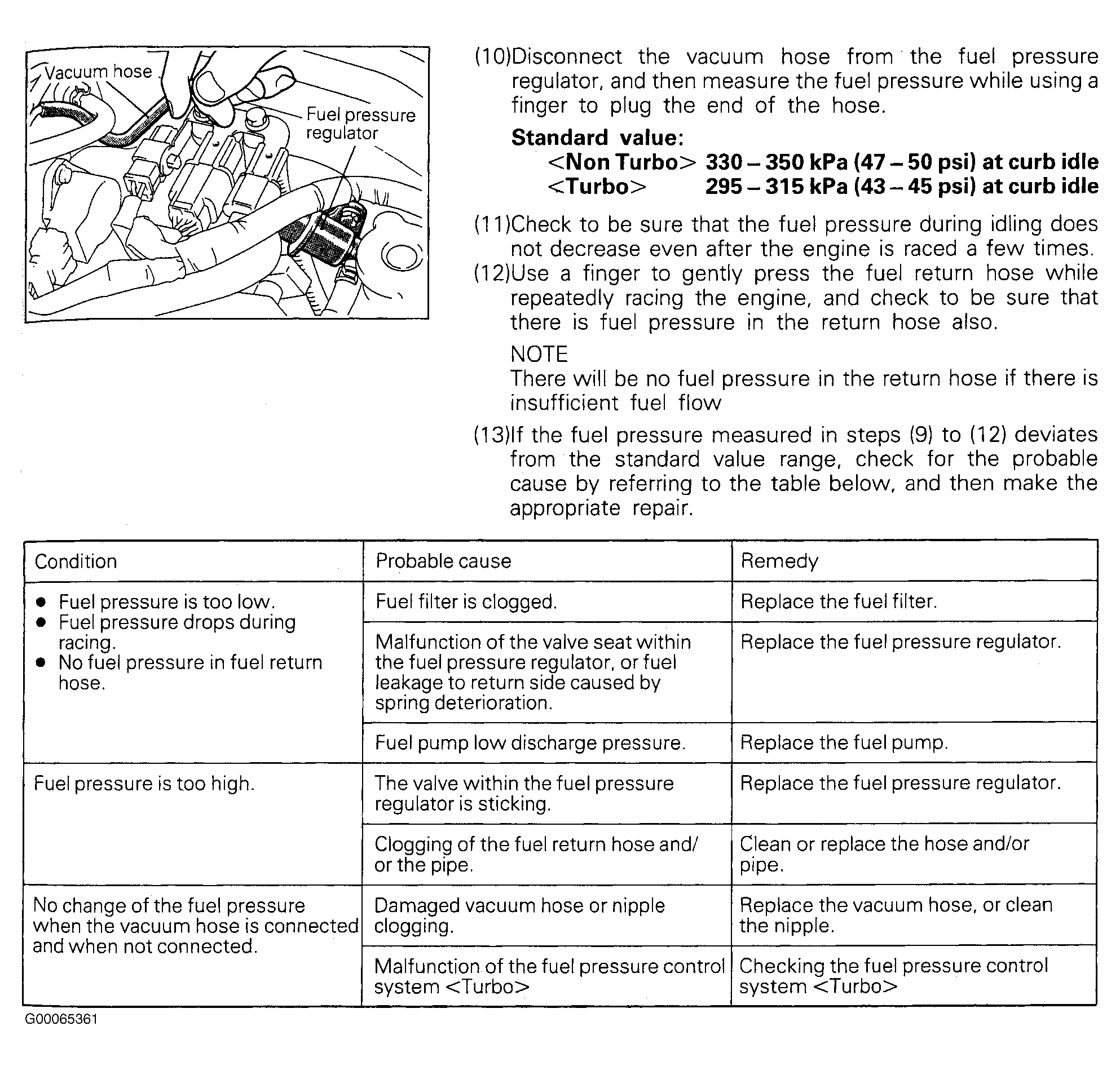

Fig 2: Fuel Pressure Test - Steps 10-13 (2 Of 3)
G00065361Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

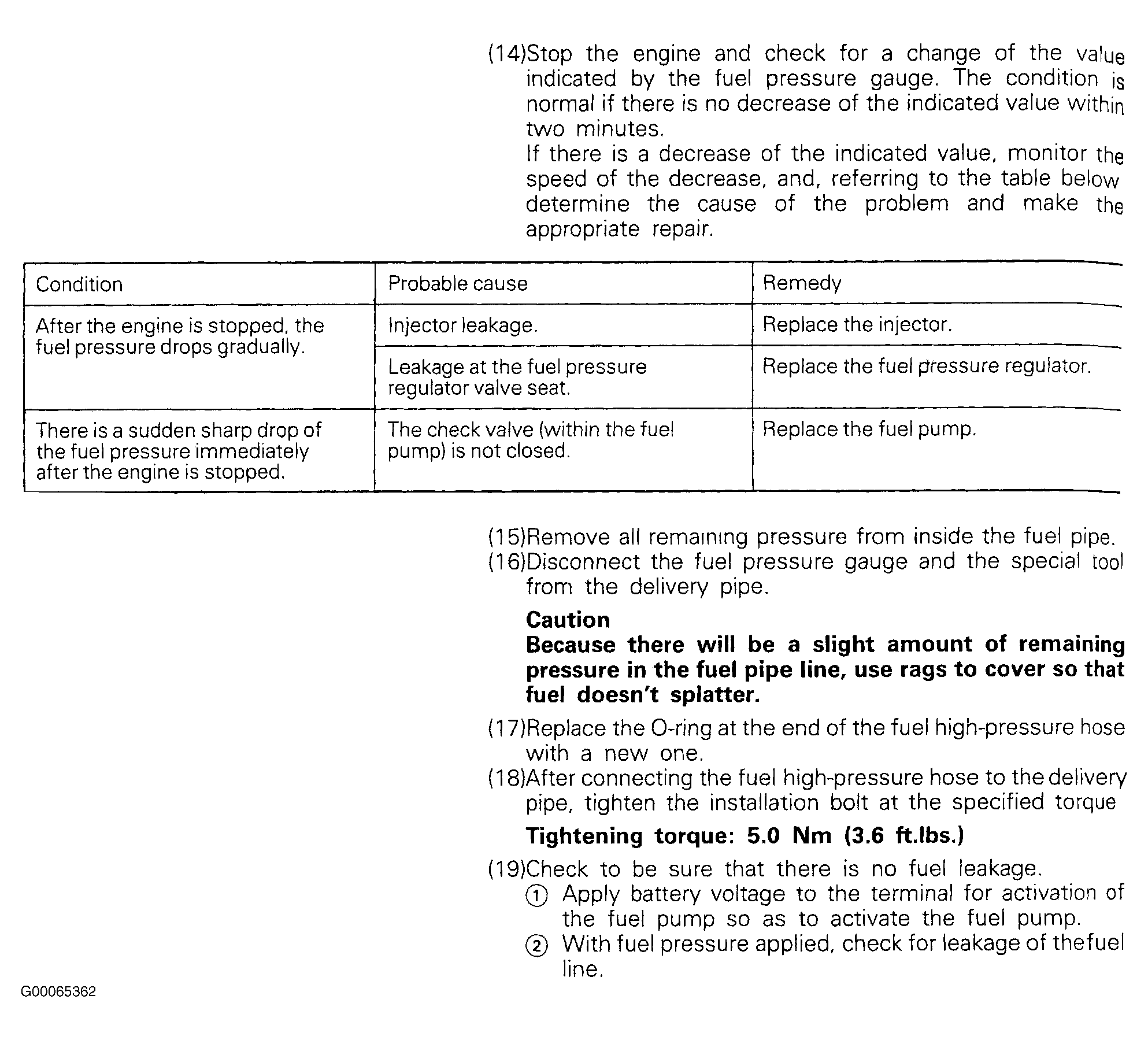

Fig 3: Fuel Pressure Test - Steps 14-19 (2 Of 3)
G00065362Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
