Diagnostic Fault Charts: Notes
NOTE:
Replace ECU if a malfunction code exists and inspection reveals no problem with check items.

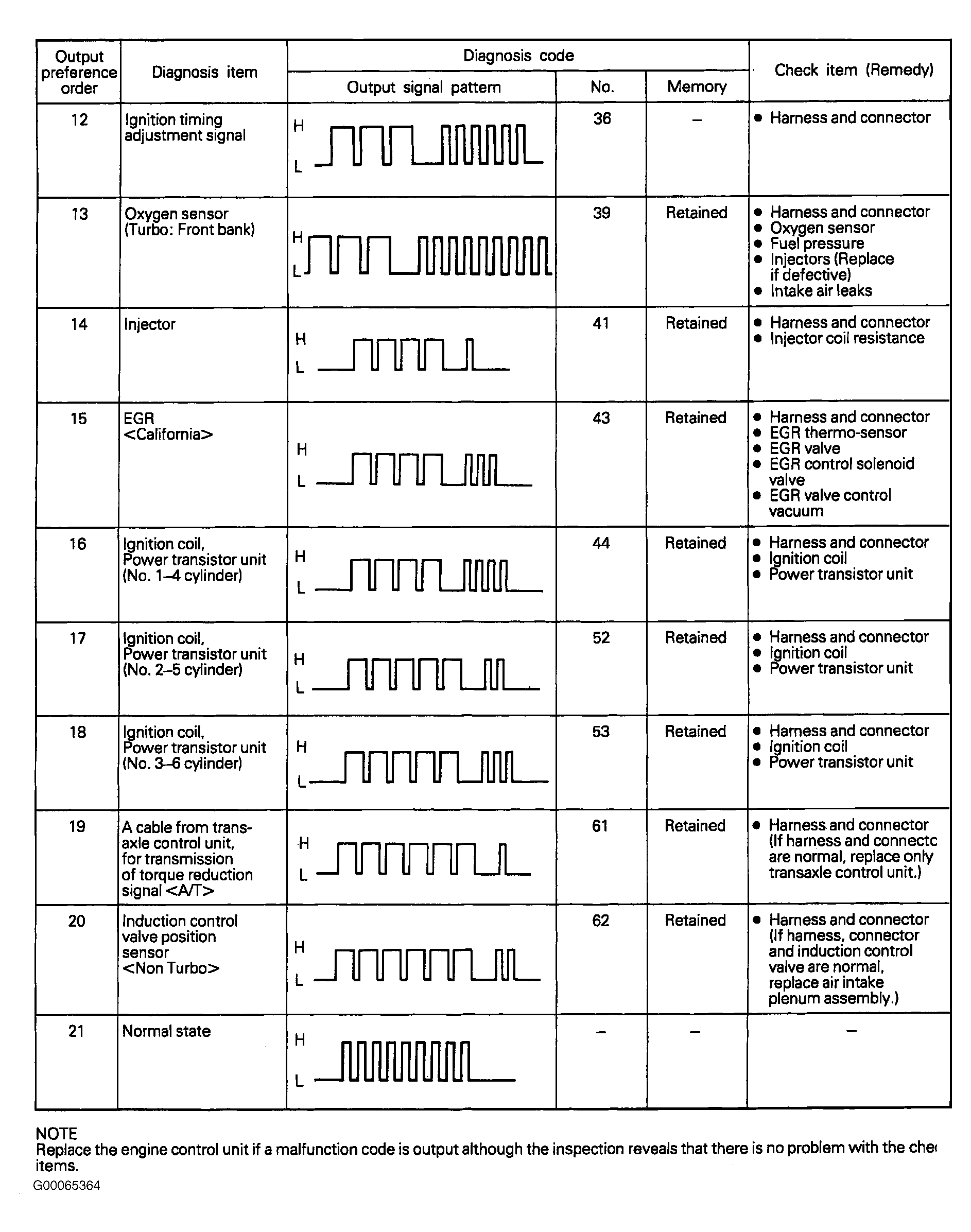

See
Figure
and
Figure
. for Diagnostic Fault Charts.
