DTC 62: Induction Control Valve Position Sensor - Non-Turbo

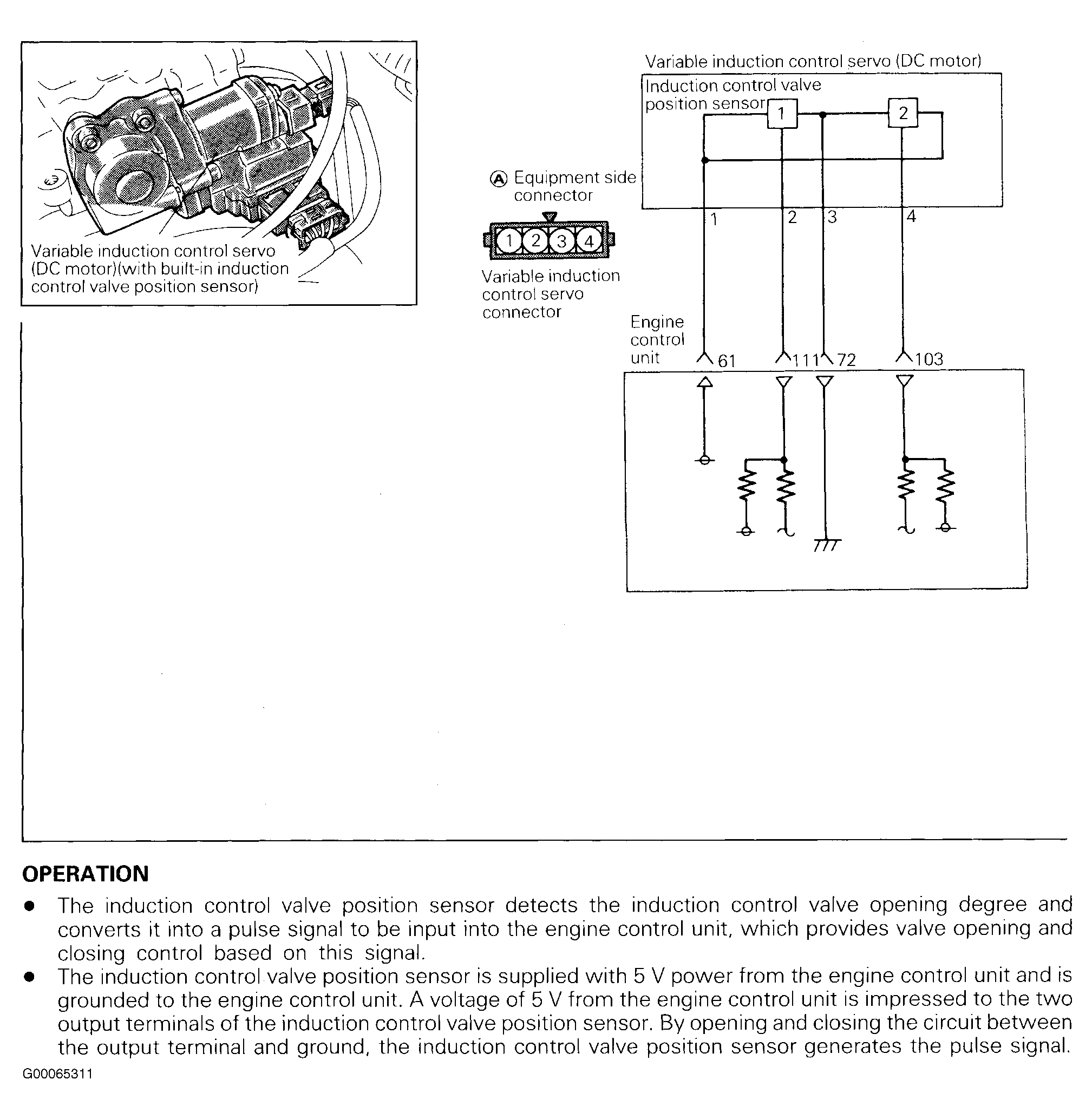

Fig 1: DTC 62: Induction Control Valve Position Sensor - Non Turbo (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

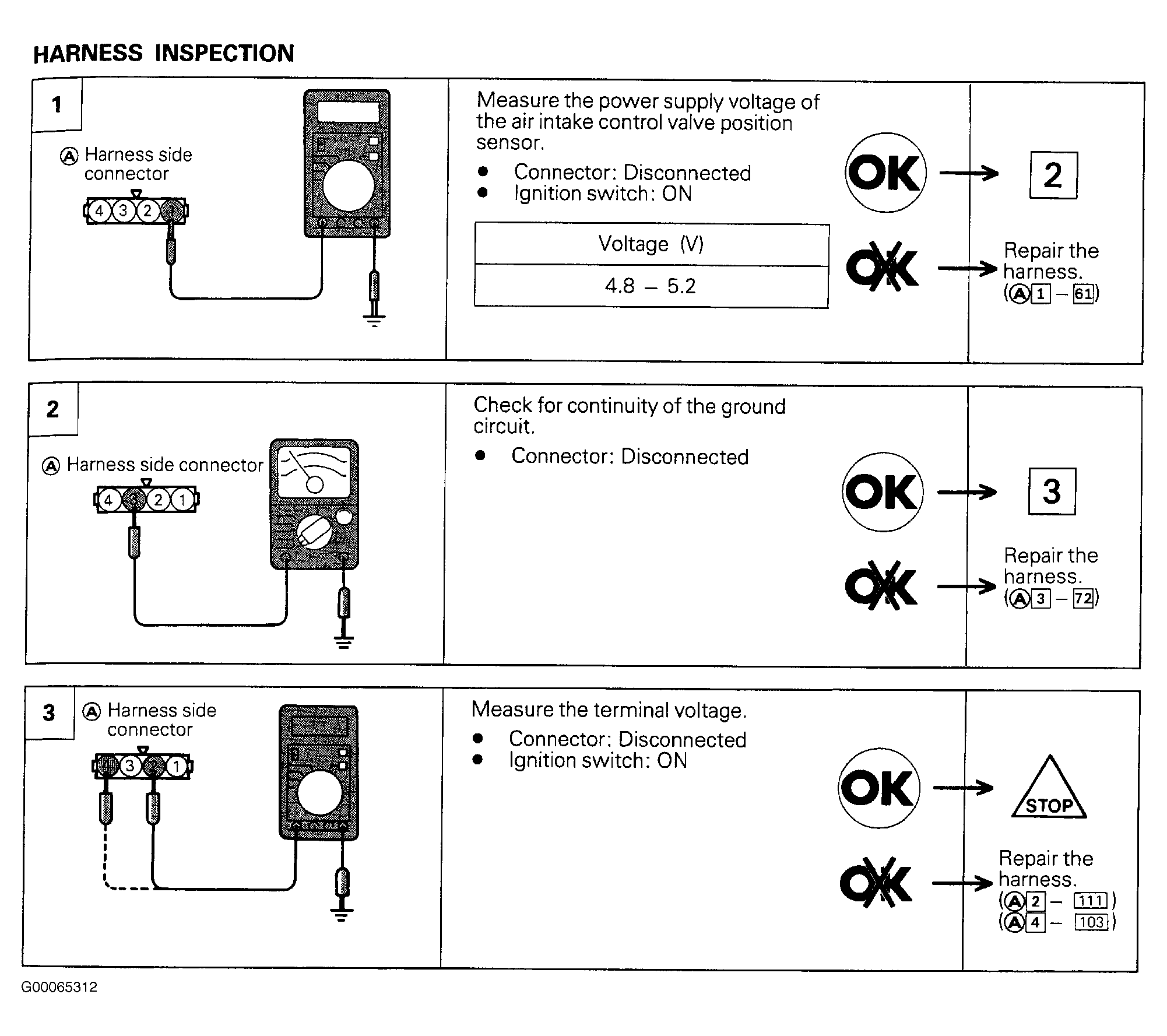

Fig 2: DTC 62: Induction Control Valve Position Sensor - Non Turbo - Steps 1-3 (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
