DTC 25: Barometric Pressure Sensor
DTC 25: Barometric Pressure Sensor

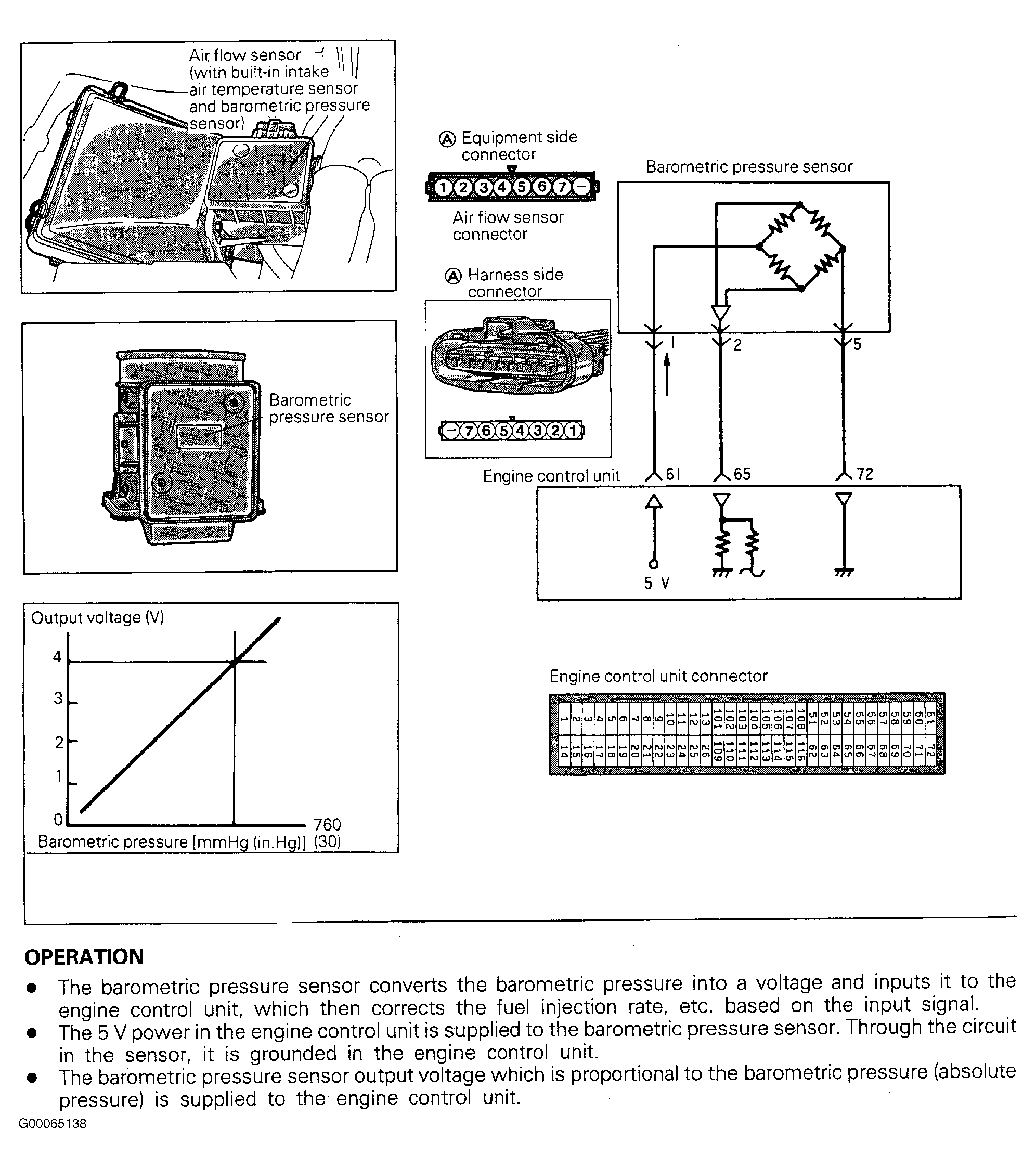

Fig 1: DTC 25: Barometric Pressure Sensor (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

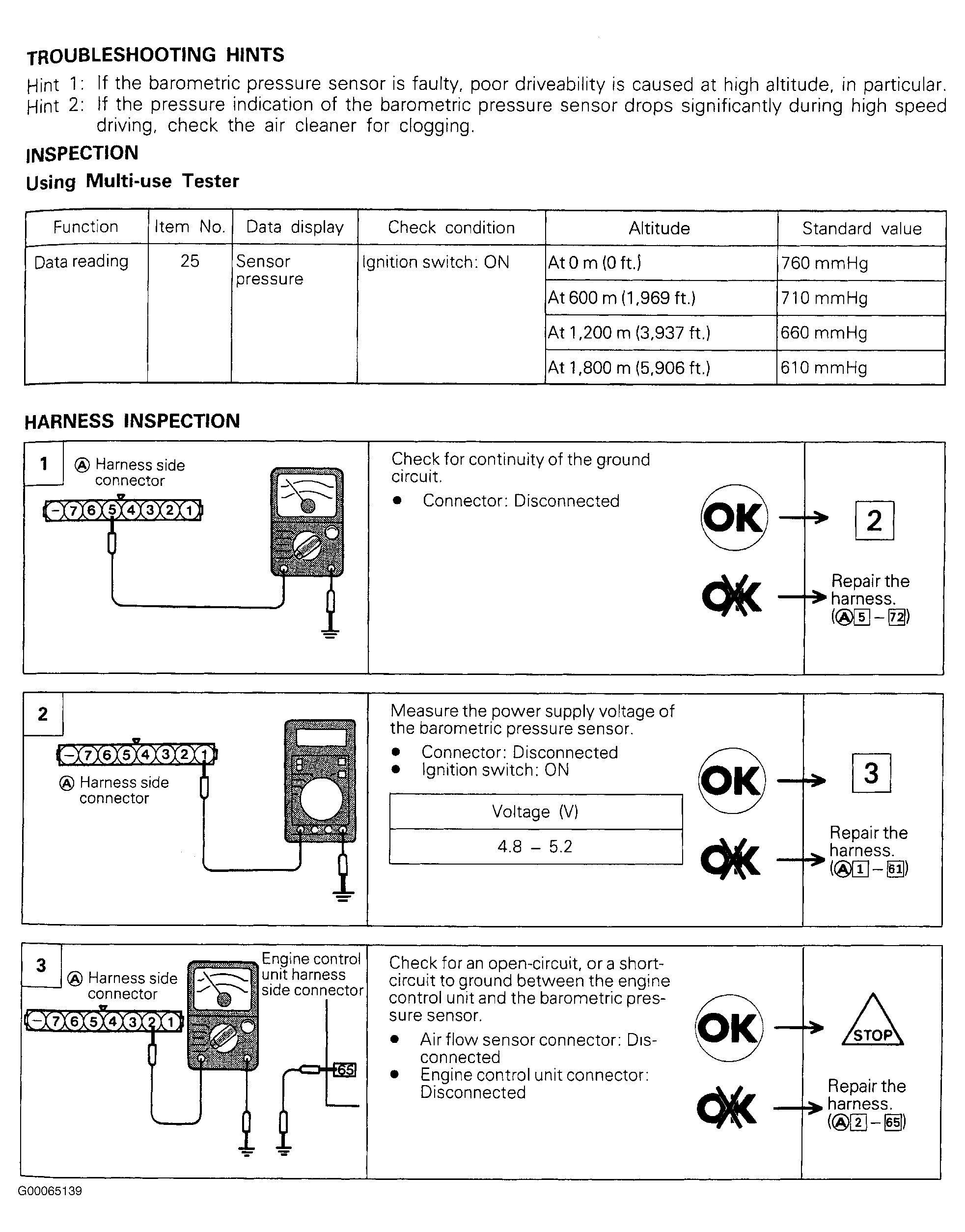

Fig 2: DTC 25: Barometric Pressure Sensor - Steps 1-3 (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
