LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
1991
>>
3000GT Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Diagnostic Trouble Code Tests
>>
DTC 24: Vehicle Speed Sensor
DTC 24: Vehicle Speed Sensor

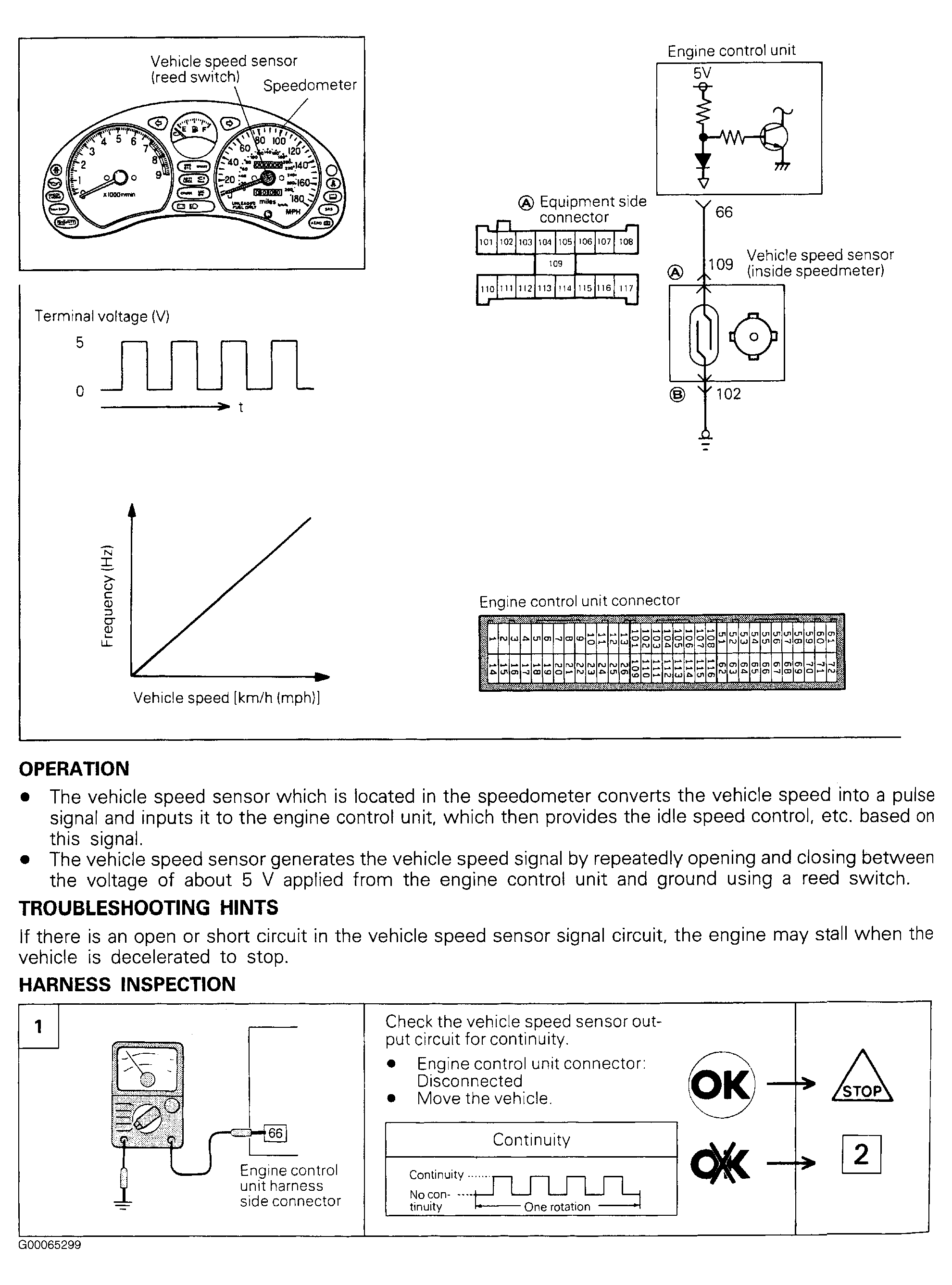

Fig 1: DTC 24: Vehicle Speed Sensor - Step 1 (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

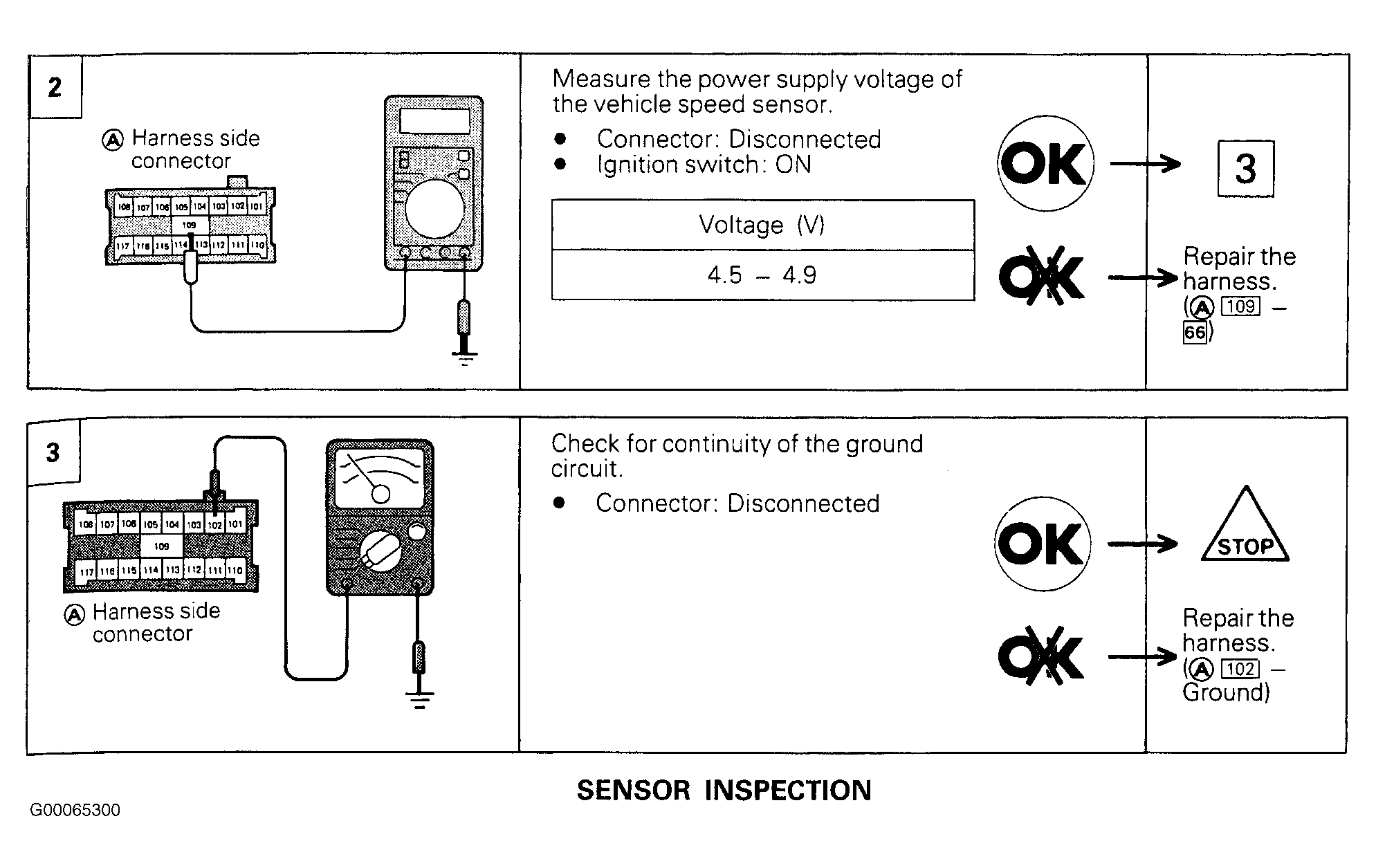

Fig 2: DTC 24: Vehicle Speed Sensor - Steps 2 & 3 (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
