DTC 11: Oxygen Sensor - Non-Turbo
DTC 11: Oxygen Sensor - Non-Turbo

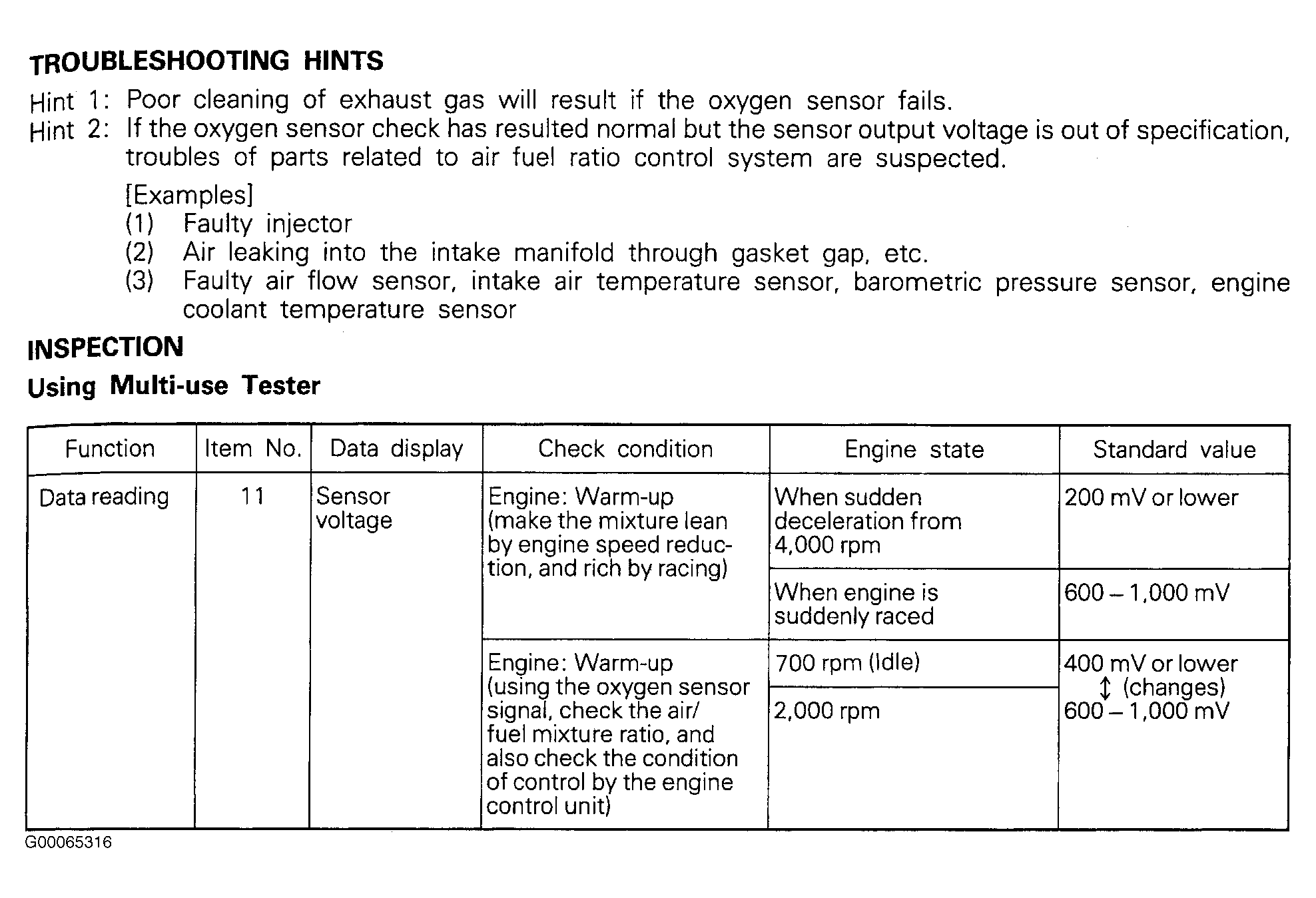

Fig 1: DTC 11: Oxygen Sensor - Non Turbo (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

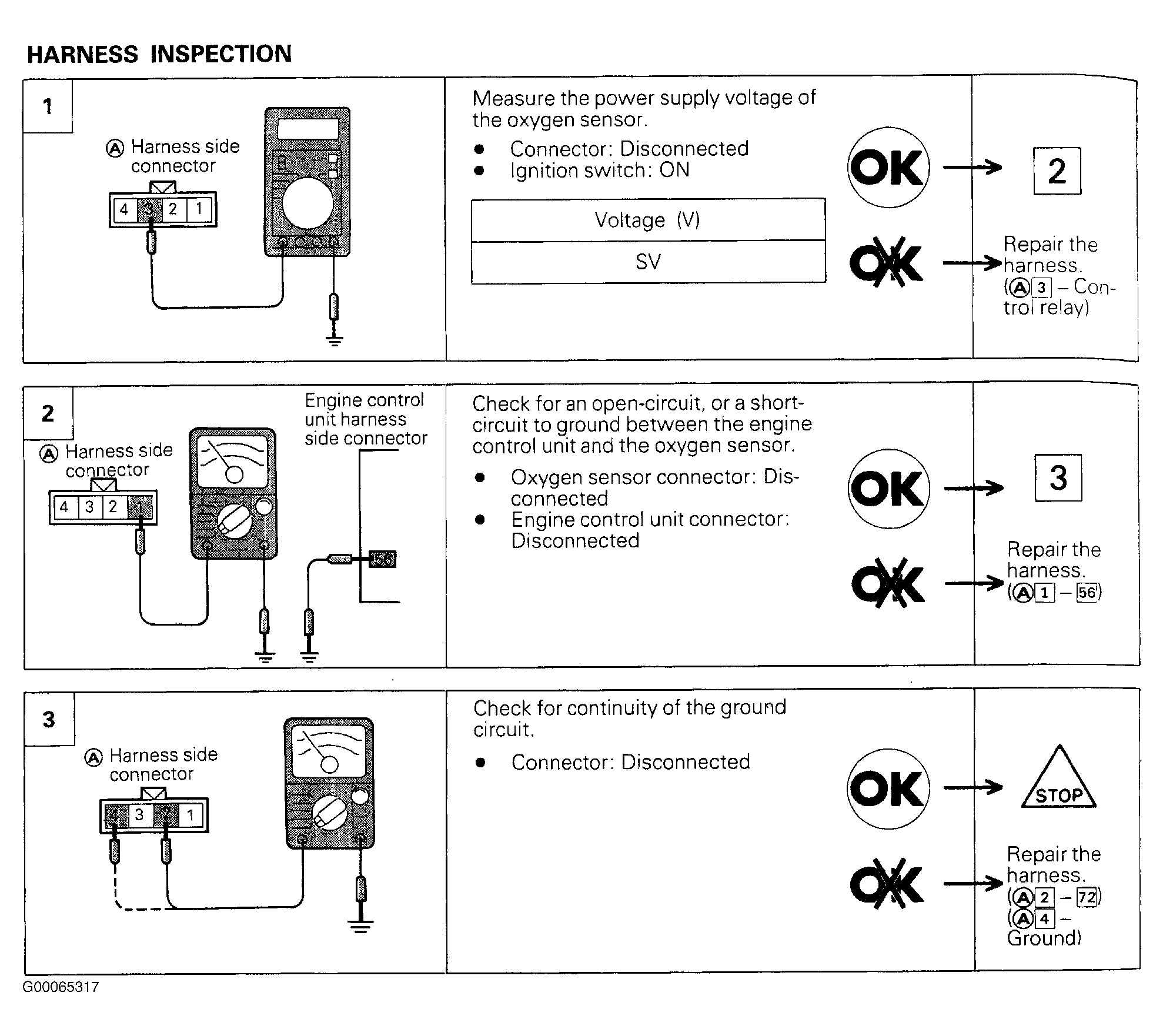

Fig 2: DTC 11: Oxygen Sensor - Non Turbo (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

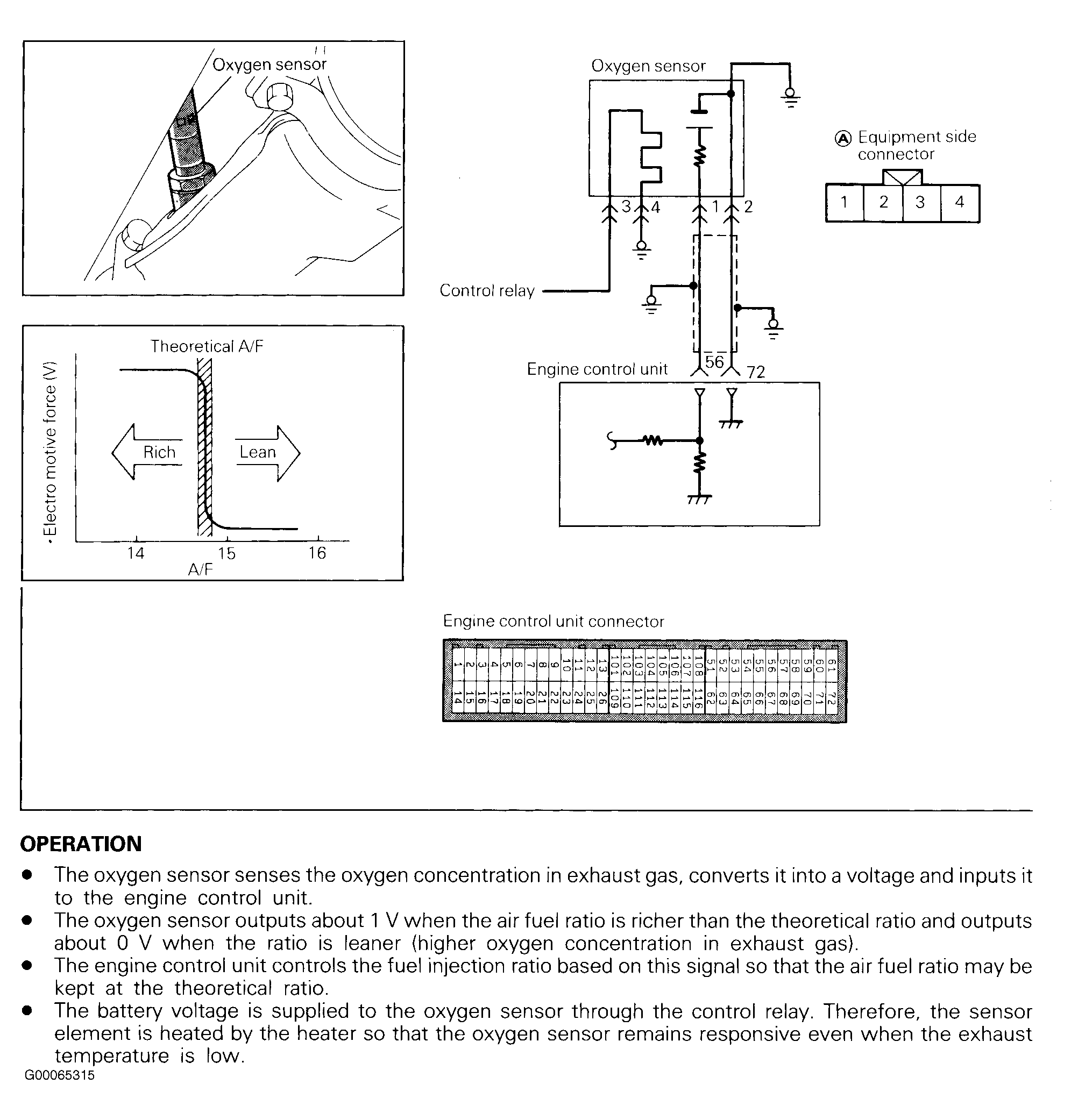

Fig 3: DTC 11: Oxygen Sensor - Non Turbo - Steps 1-3 (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

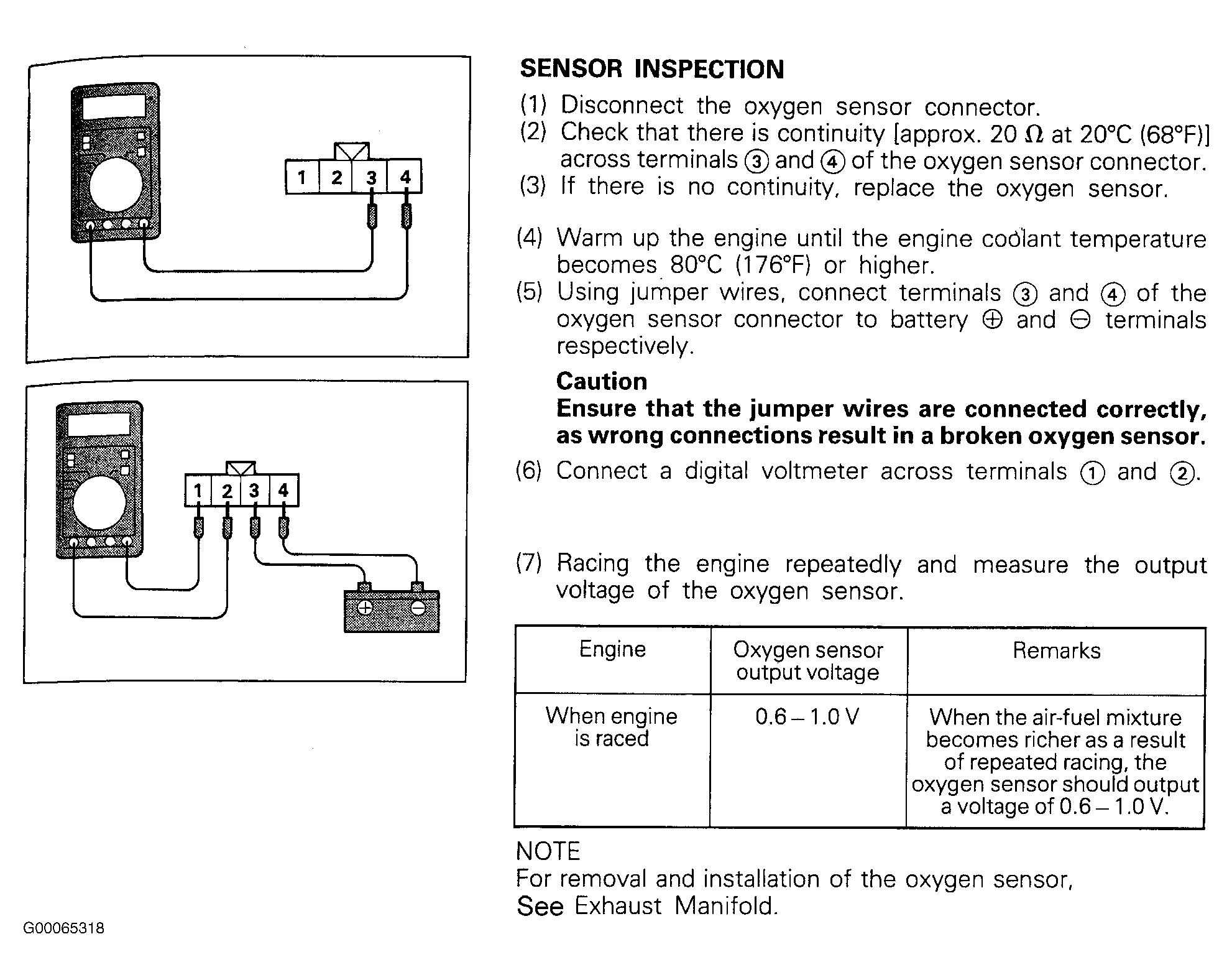

Fig 4: DTC 11 : Oxygen Sensor - Non Turbo (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
