Purge Control Solenoid

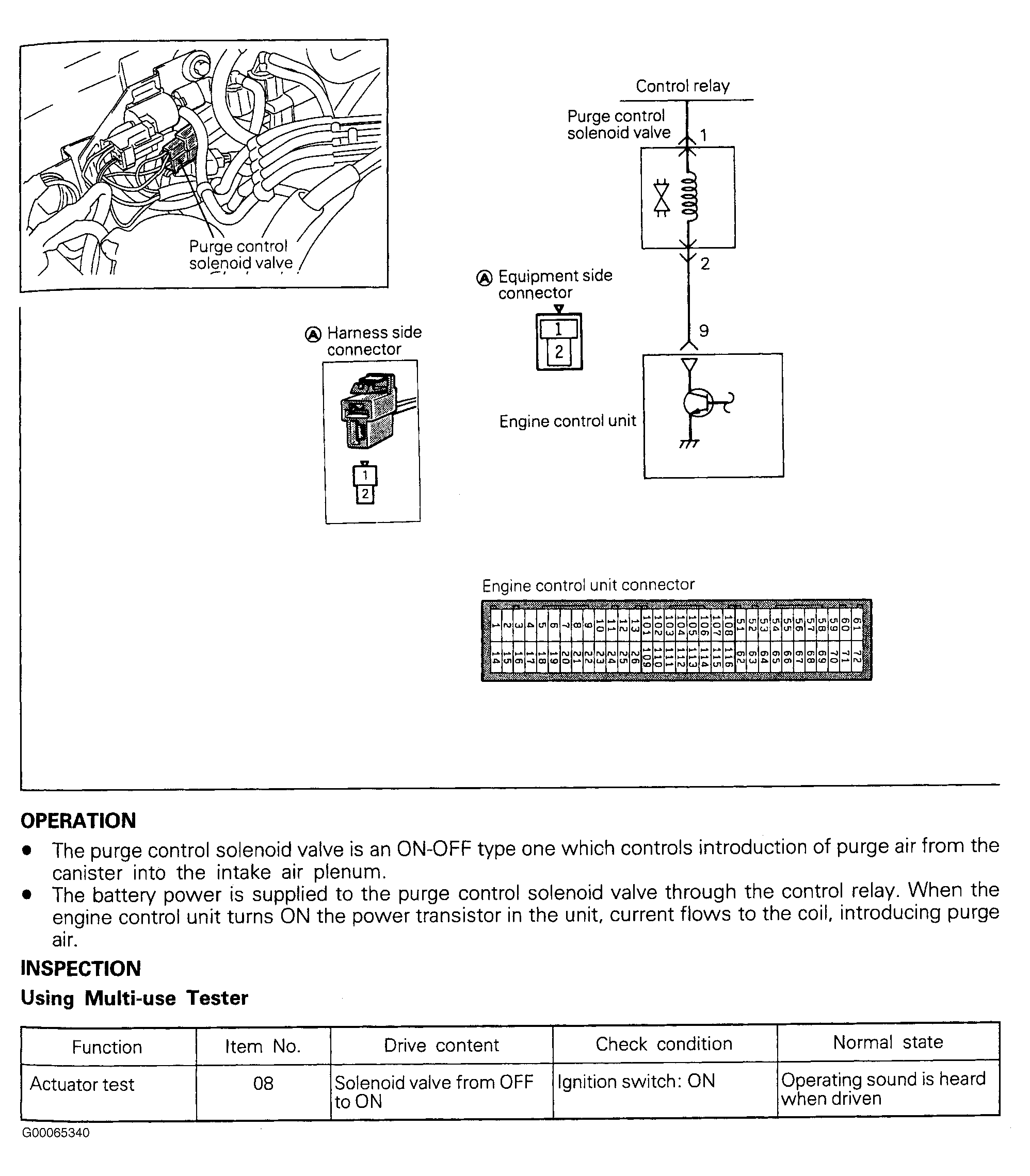

Fig 1: Purge Control Solenoid Valve (1 Of 2)
G00065340Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

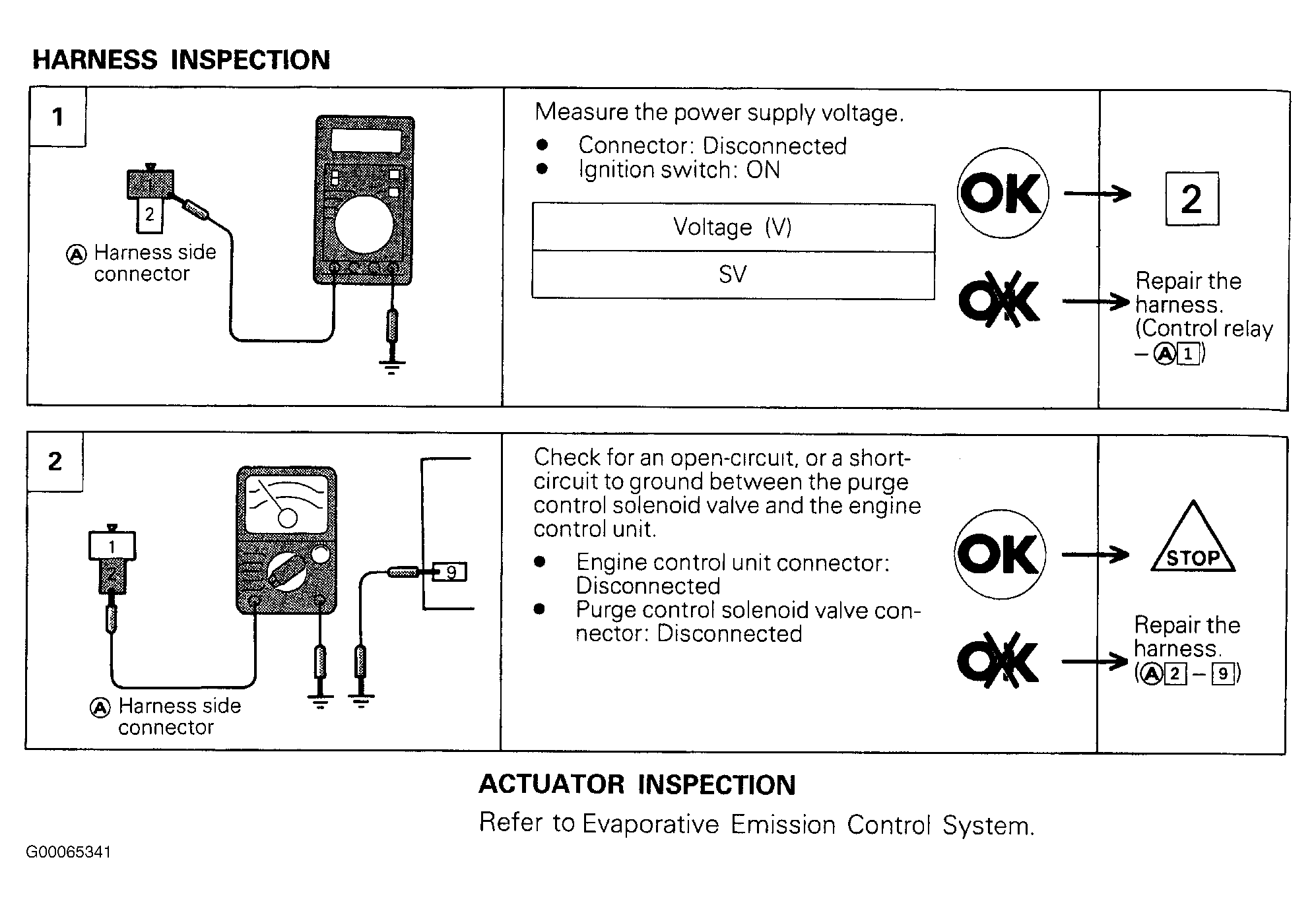

Fig 2: Purge Control Solenoid Valve - Steps 1 & 2 (2 Of 2)
G00065341Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
