Door Window Glass

Remove door trim and waterproof film. Remove the front pillar trim. See DOOR TRIM & WATERPROOF FILM under REMOVAL & INSTALLATION. Remove the drip line weatherstrip and loosen the following parts: See Fig 1 .
- Glass guide front and rear track.
- Delta sash. Move the window glass down to the lowest position before removing the delta sash bolt.
- Inner front and rear stabilizer
- Up stop and door belt line outer weatherstrip

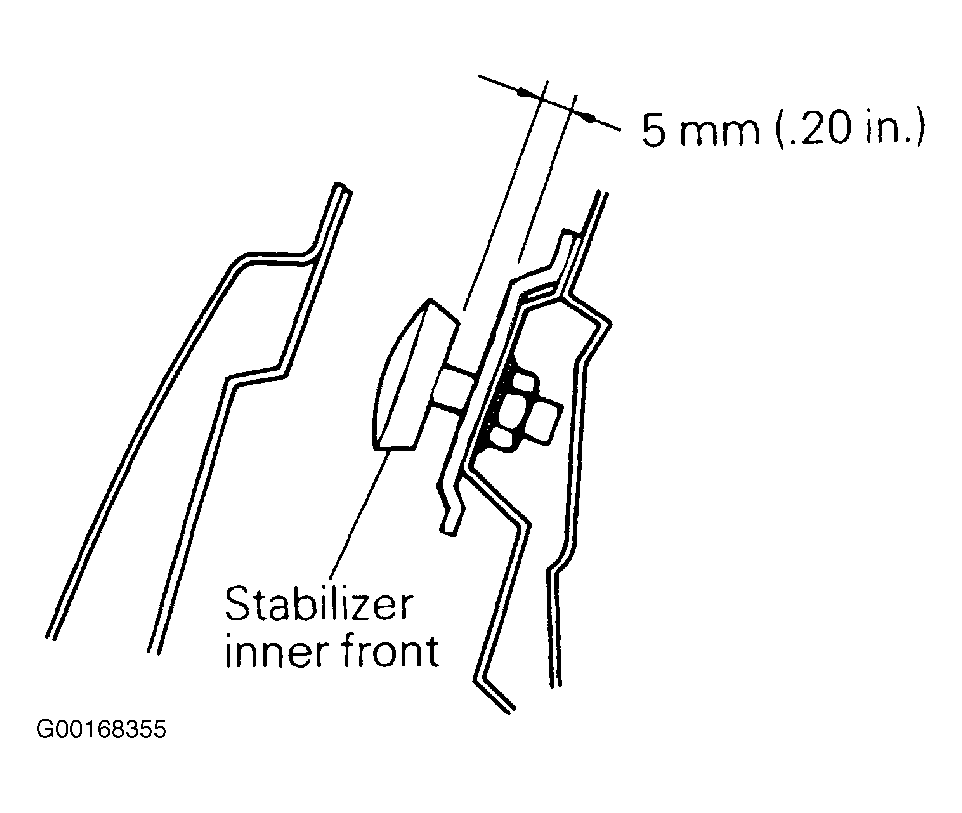

Remove the stabilizer inner front and adjust the adjusting bolt for the dimension shown. See Fig 2 .

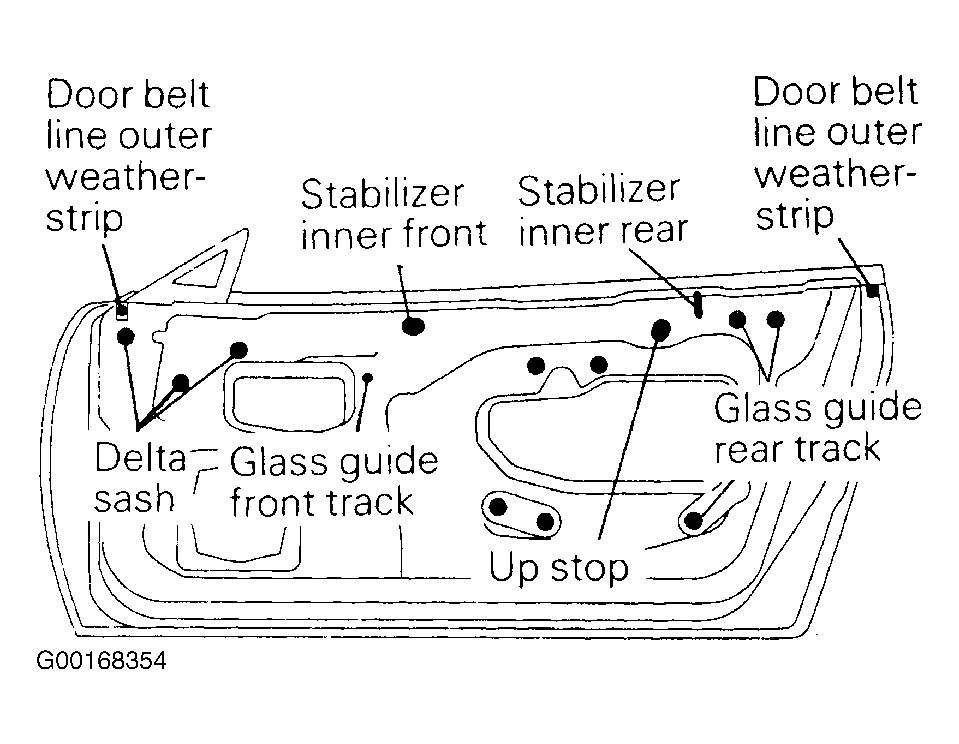

Fig 1: Identifying Window Glass Door Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Adjusting Inner Front Stabilizer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

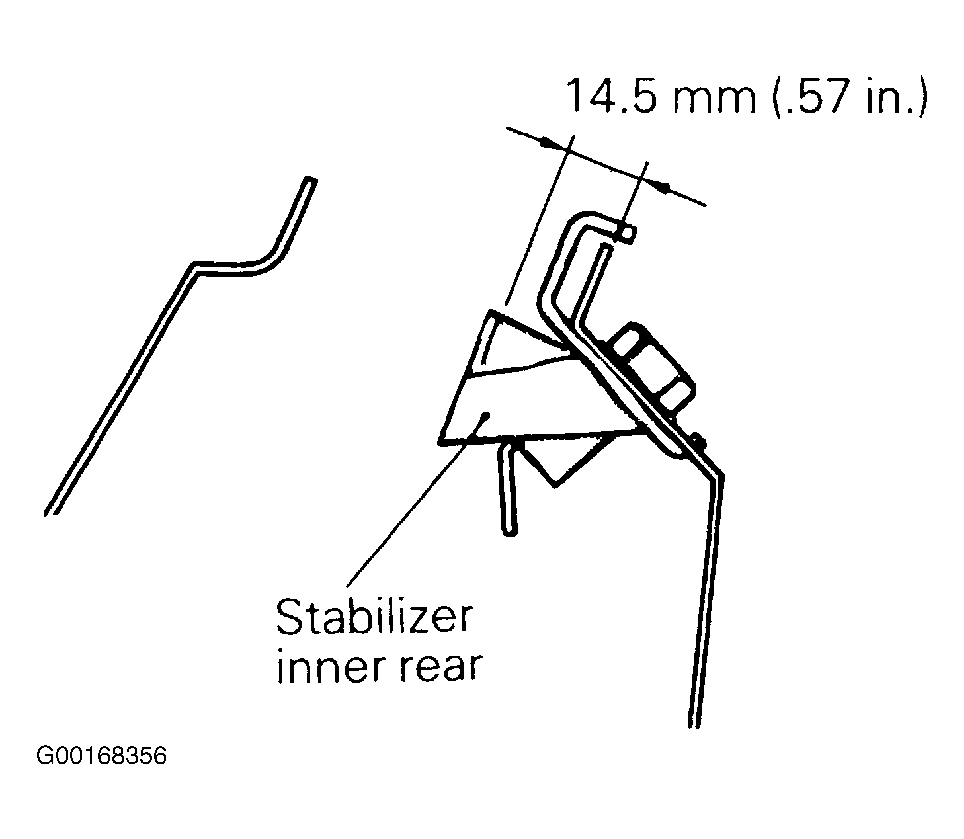

Adjust the adjusting bolt for the stabilizer inner rear dimension. See Fig 3 .

Fig 3: Adjusting Inner Rear Stabilizer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Raise the window glass. Push glass against the outer stabilizer of the door belt line outer weatherstrip and insert cloth or the like between the door inner panel and glass.

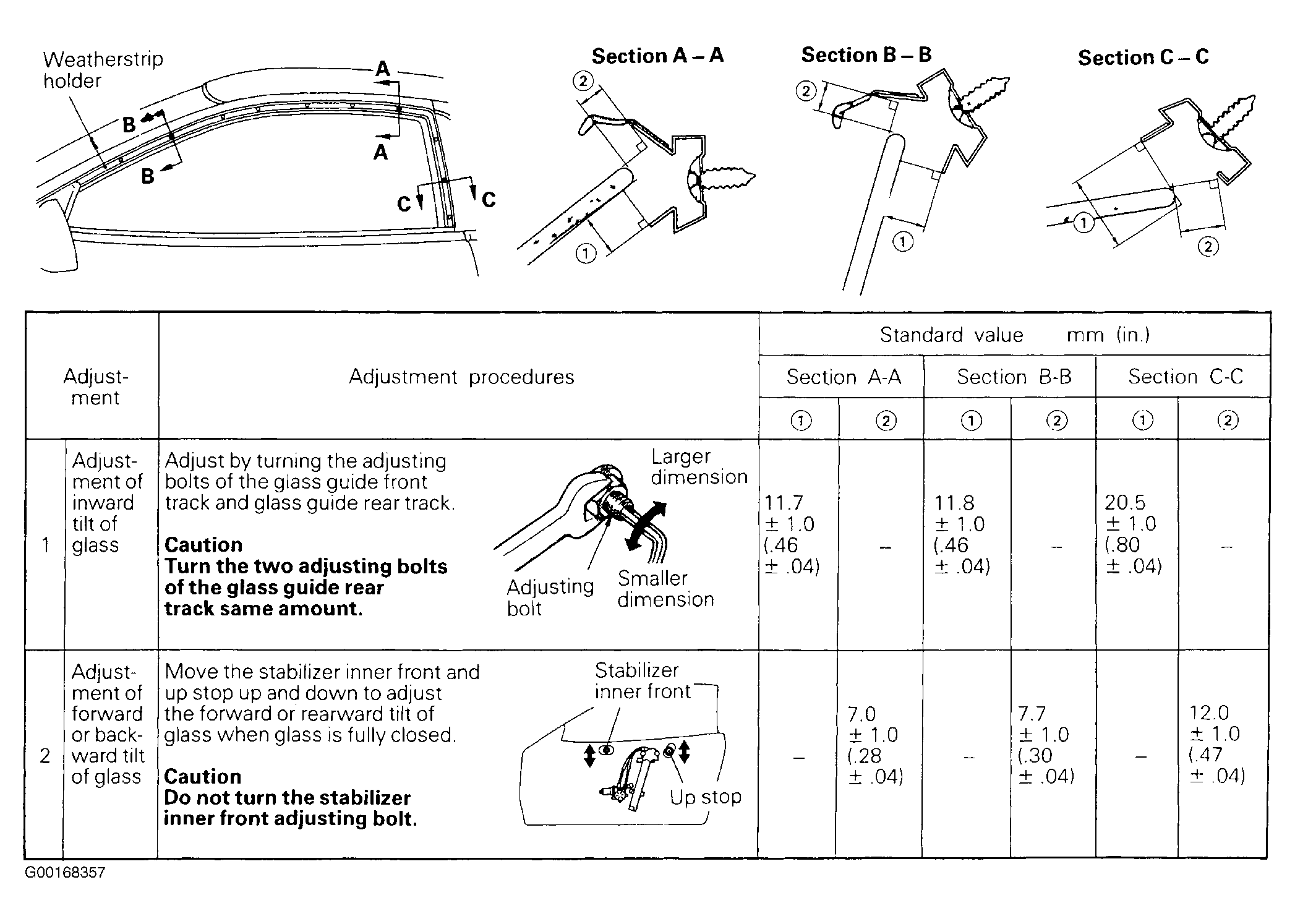

CAUTION: Measure the clearance, specified in the section A-A, B-B and C-C, at the corresponding weatherstrip holder screws. See Fig 4 .

Fig 4: Adjusting Weatherstrip Holder & Window Glass

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Adjust both inward tilt and forward or backward tilt of glass at the same time.

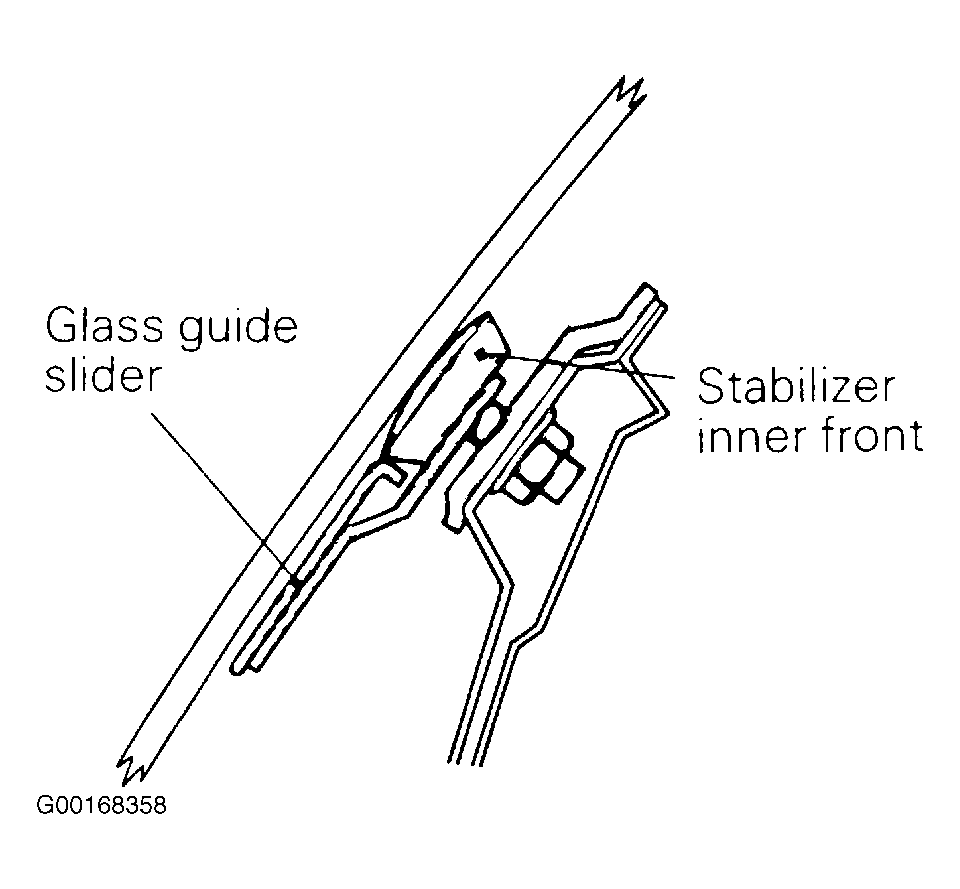

Fig 5: Inserting Stabilizer Inner Front Onto Glass Guide

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Force the stabilizer inner front onto the glass guide slider of the window glass assembly and tighten in position. See Fig 5 .

CAUTION: Do not turn the adjusting bolts of guide tracks.

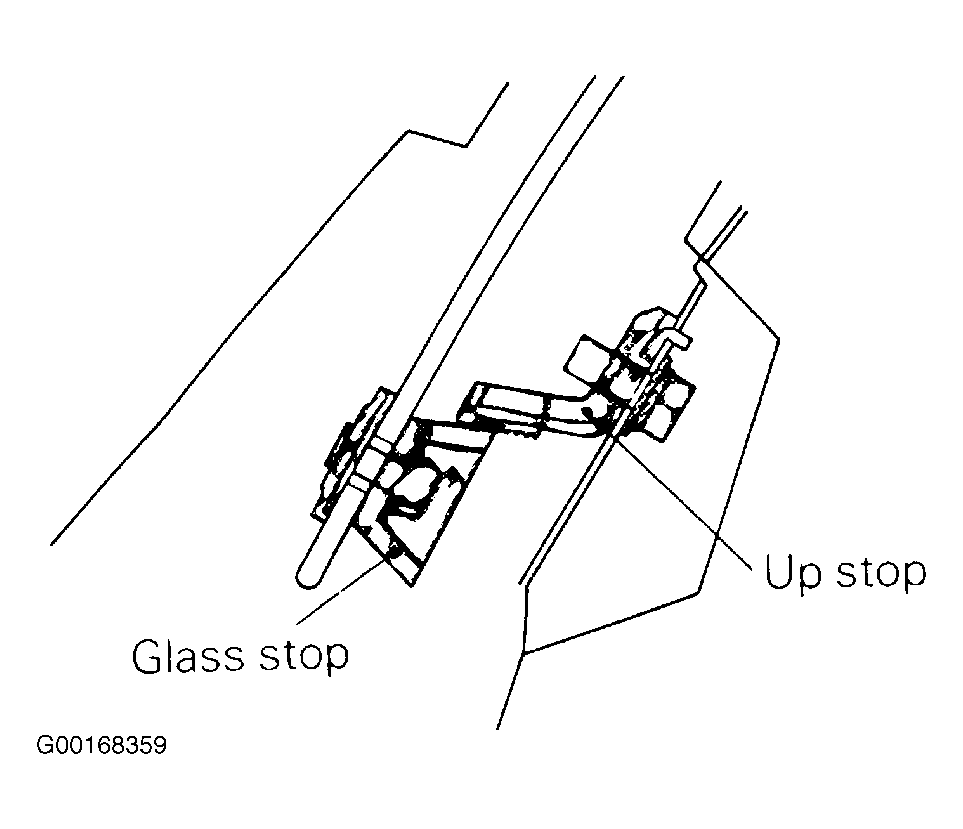

Fig 6: Adjusting Up Stop

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Force the up stop onto the glass stop of the window glass assembly and tighten in position. See Fig 6 . Tighten the glass guide front and rear tracks.

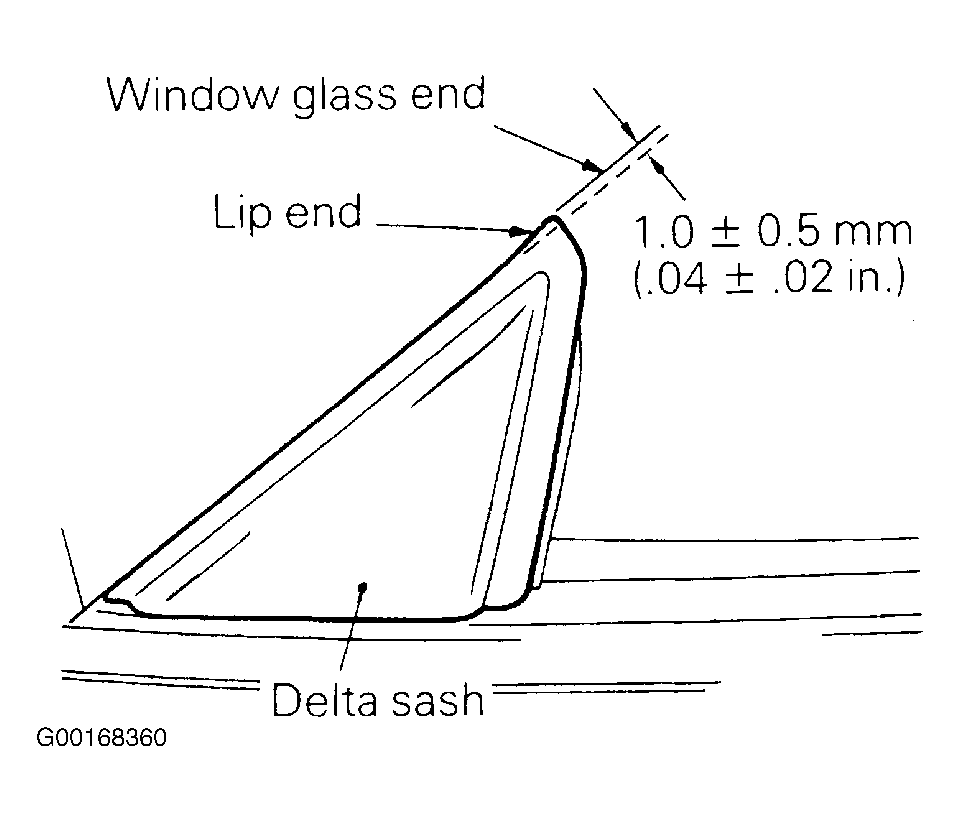

Adjust the delta sash so that the window glass end and the delta sash lip end are positioned as shown and tighten in position. See Fig 7 .
Install the drip line weatherstrip. Install front pillar trim, waterproof film and door trim. Open and close the door and move the window glass up and down to check fitting of the door.
