Cruise Control Switch

Disconnect the column switch connector, and check at the connector on the switch side. Operate the switch, and check the continuity between the terminals. See Fig 1 .

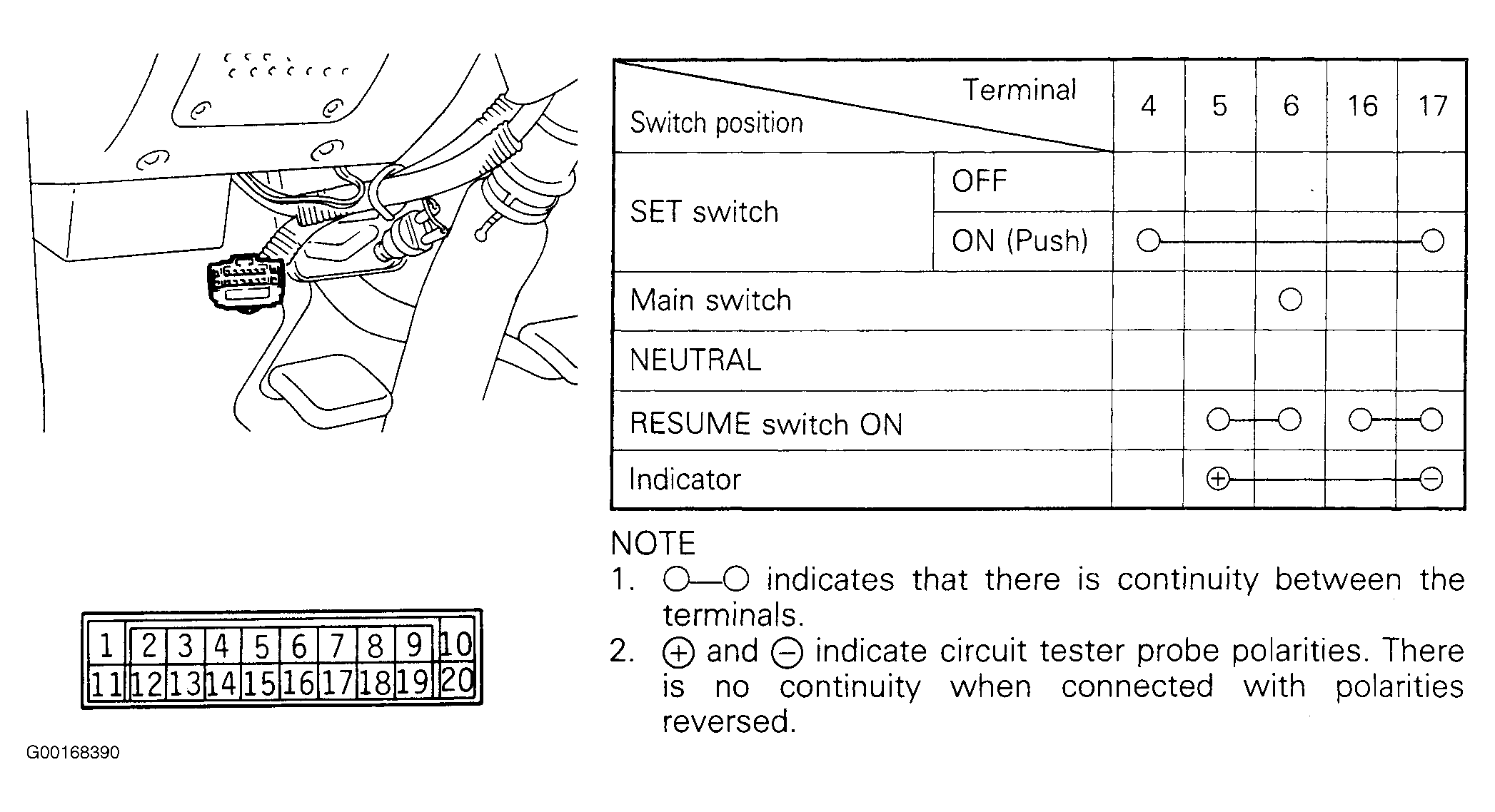

Fig 1: Testing Cruise Control Switch
G00168390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
