System Tests: Notes

If no flash codes exist, diagnose by symptom. See Fig 1 and Fig 2 .

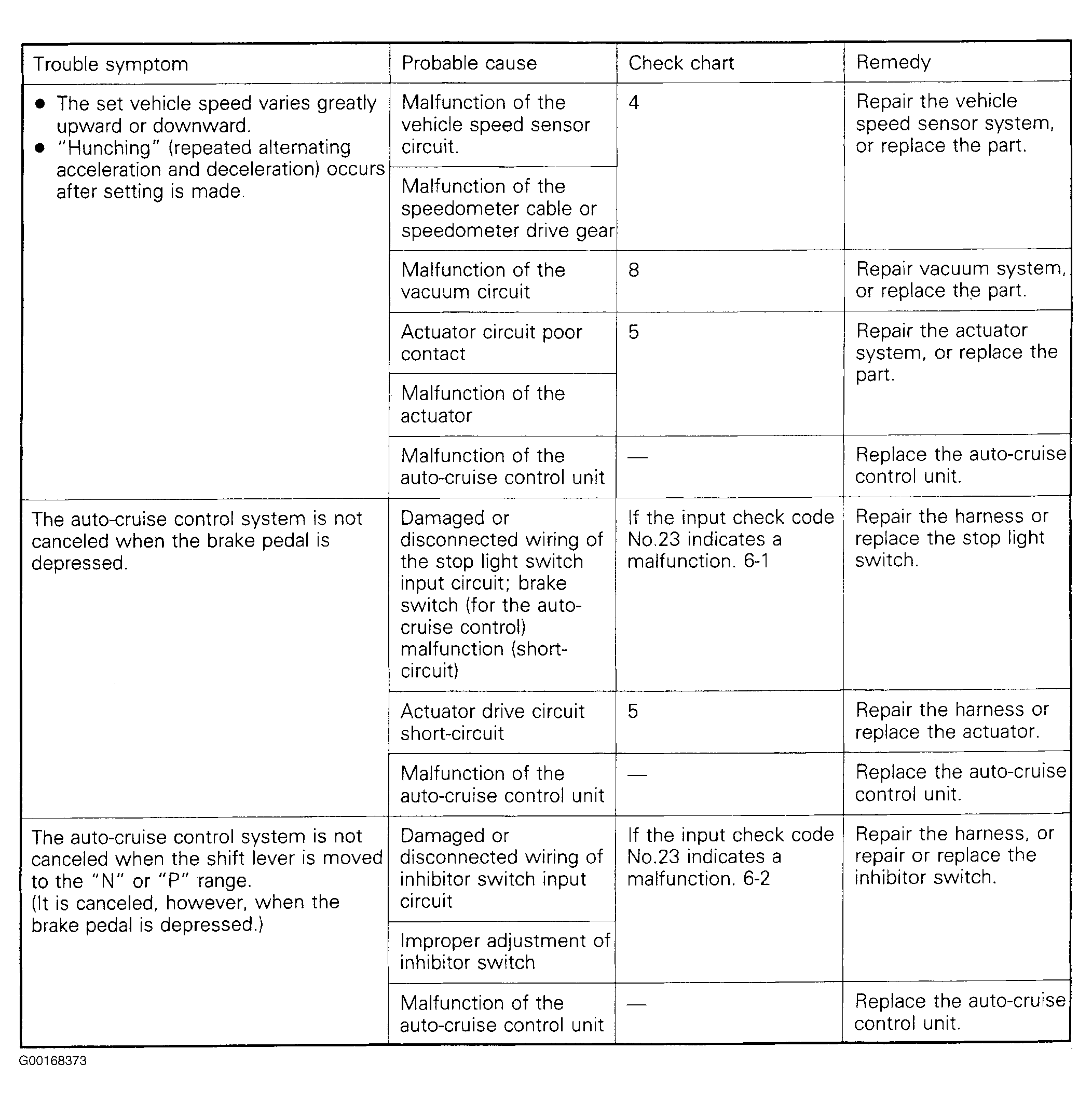

Fig 1: Symptom Quick Reference Table (1 Of 2)
G00168373Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

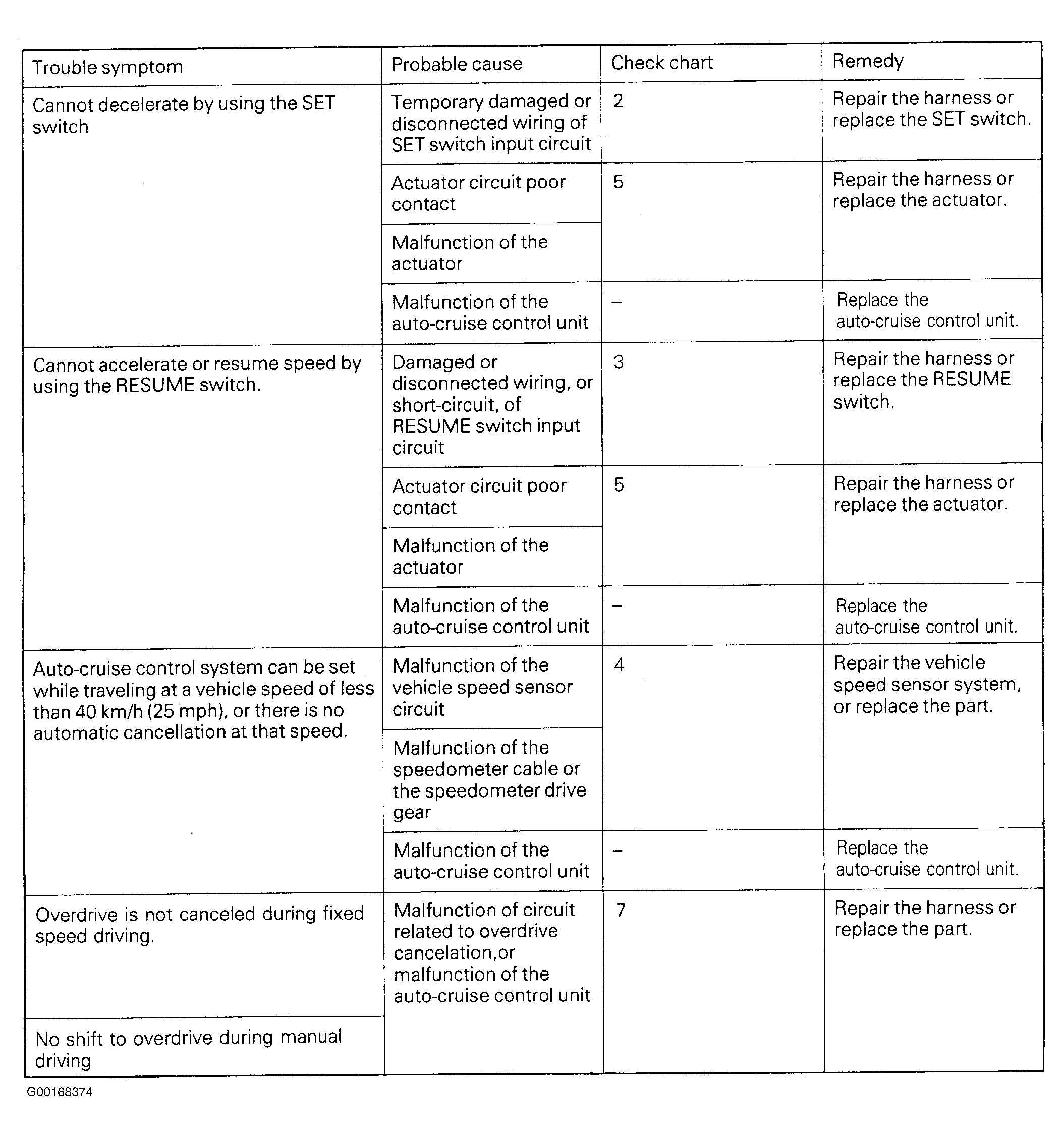

Fig 2: Symptom Quick Reference Table (2 Of 2)
G00168374Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
