Points Of Removal

Step 3: Removing Outer Belt Line Weatherstrip

Remove the outer beltline weatherstrip from the fixing clips by prying upward with a screwdriver. See Fig 1 .

CAUTION: Because the force of the regulator spring may cause the regulator arm to jump up when the screws attaching the motor to the window regulator are removed, remove the regulator spring before removing the screws.

Step 8: Removing Power Window Motor
Remove the window regulator mounting bolts. Disconnect the power window motor form the regulator. See Fig 2 .

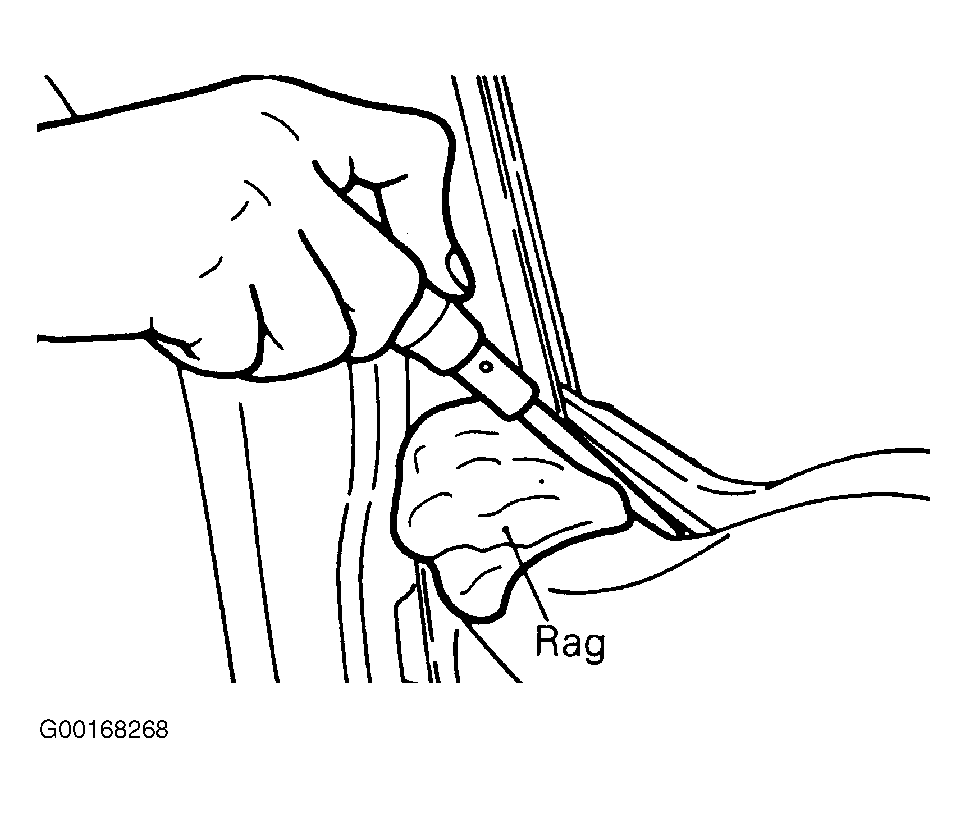

Fig 1: Removing Outer Belt Line Weatherstrip

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

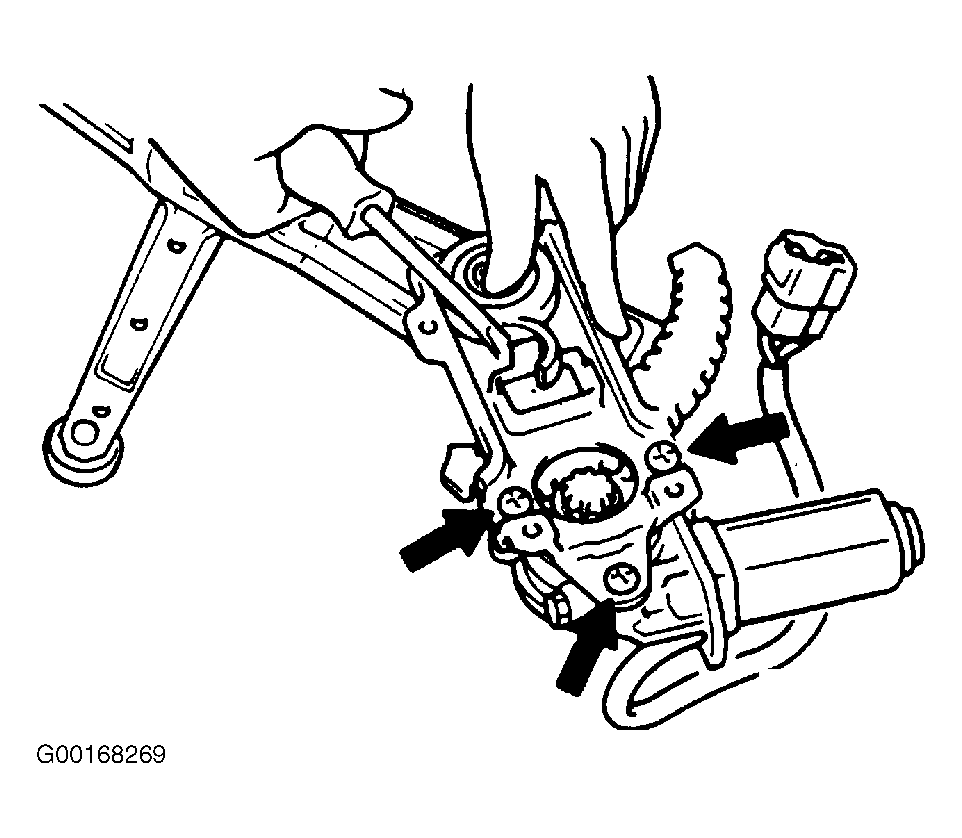

Fig 2: Removing Power Window Motor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
