Home >> Mitsubishi >> 1990 >> Sigma >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Wiring Diagram

Wiring Diagrams: Wiring Diagram

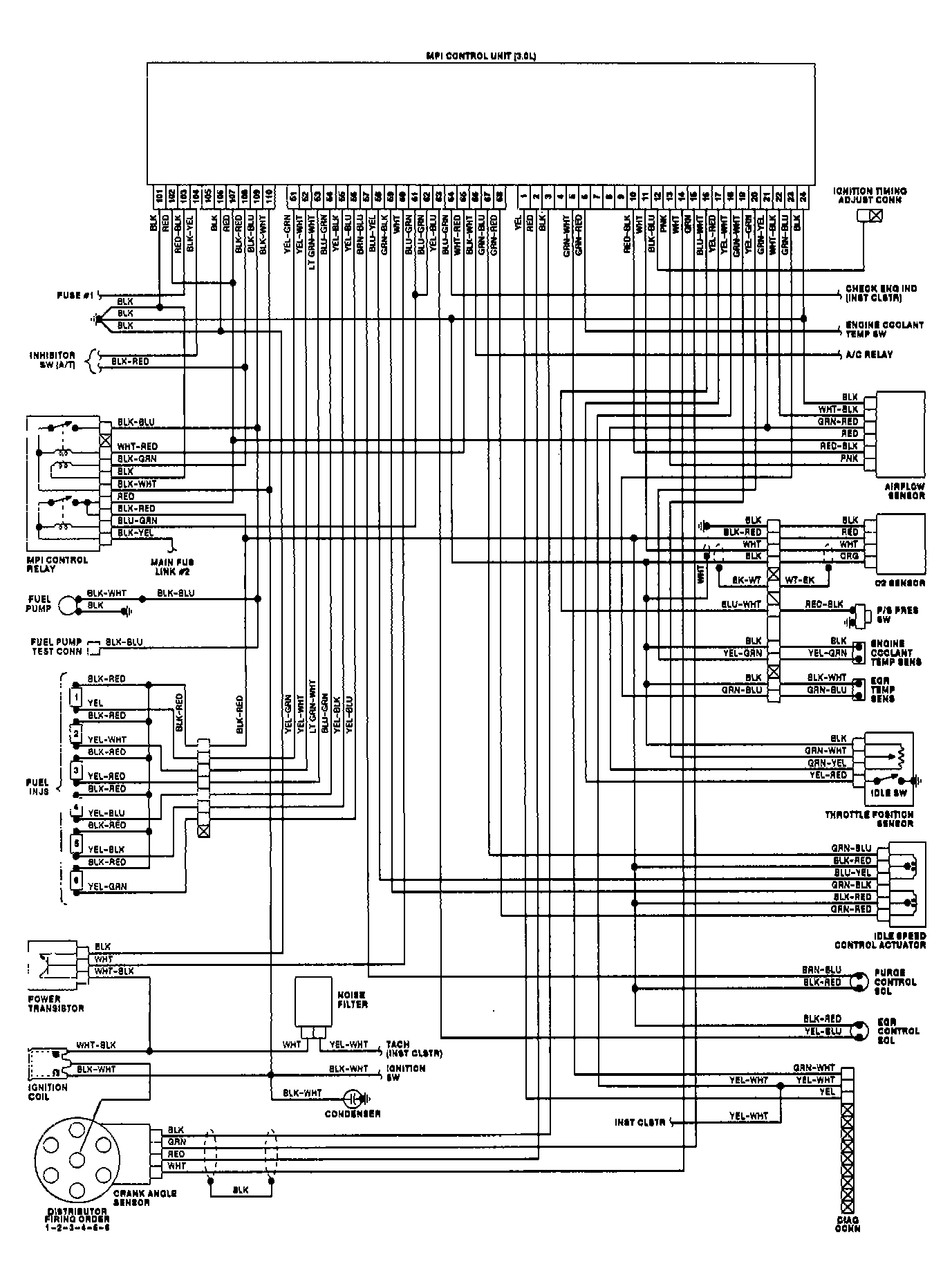

Fig 1: Sigma 3.0L Wiring Diagram

G90E21679
