Home >> Mitsubishi >> 1990 >> Precis Base, Standard >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Wiring Diagram

Wiring Diagrams: Wiring Diagram

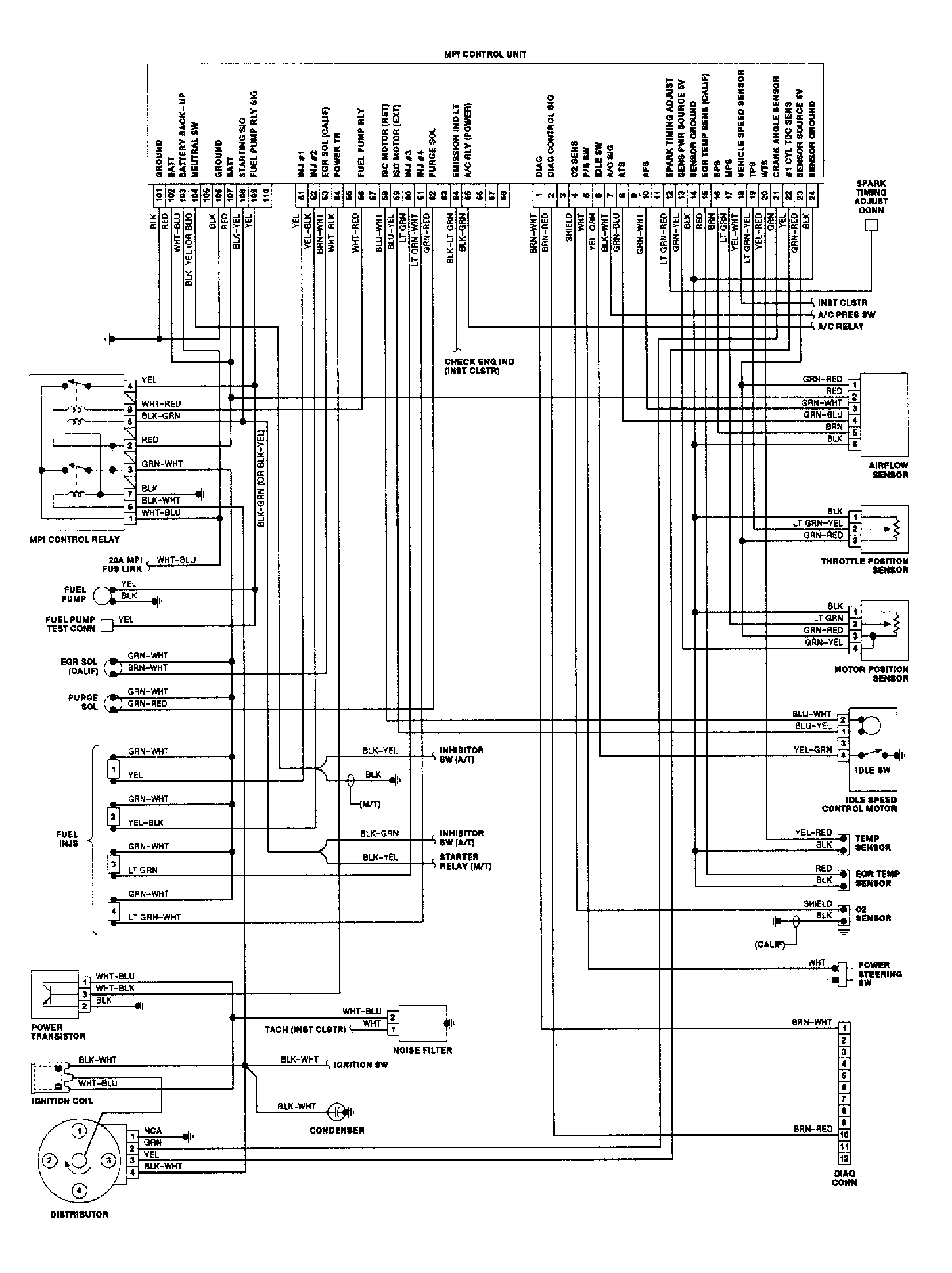

Fig 1: Precis 1.5L Wiring Diagram

G90D21678
