KICKDOWN Servo

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1994 Hyundai Sonata, 1993 Hyundai Sonata, 1992 Hyundai Sonata, 1991 Hyundai Sonata, and 1990 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean dirt and other contaminants from servo switch and cover. Remove snap ring. Remove kickdown servo switch. Prevent servo piston from turning by using Holder (09454-33101A). See Fig 1 . Loosen adjusting screw lock nut.

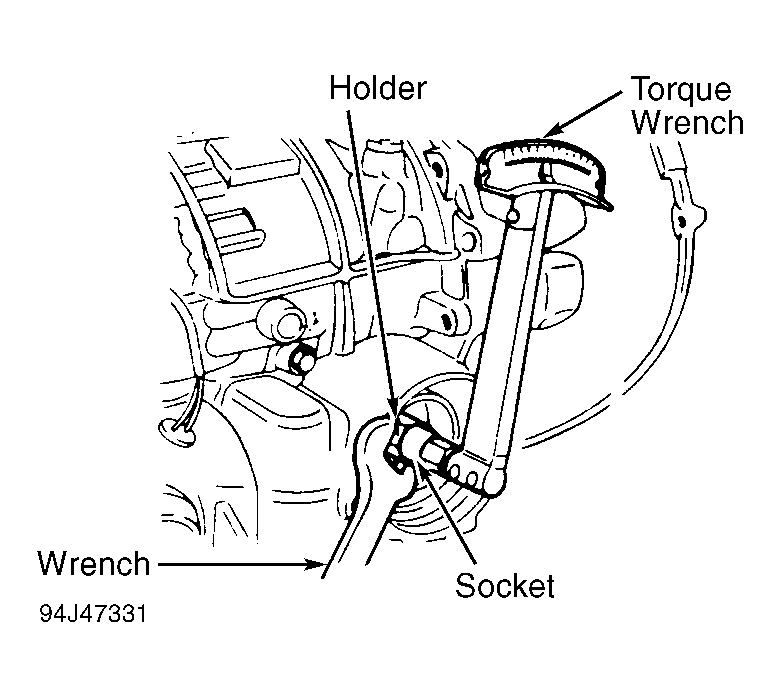

    Fig 1: Adjusting Kickdown Servo
    G94J47331Courtesy of HYUNDAI MOTOR CO.
  2. Using Socket (09454-33101B) and INCH-lb. torque wrench, tighten adjustment screw 89 INCH lbs. (10 N.m). Loosen adjustment screw and tighten screw 2 turns. Tighten adjustment screw to 44 INCH lbs. (5 N.m). Finally, loosen adjustment screw 2-2 1/4 turns.
  3. Hold adjustment screw at that setting, and tighten lock nut 18-24 ft. lbs. (25-32 N.m). Install "O" ring in groove and lightly lubricate with ATF. Install servo cover to case and install snap ring. Install kickdown switch to cover.
