Control Relay Inspection

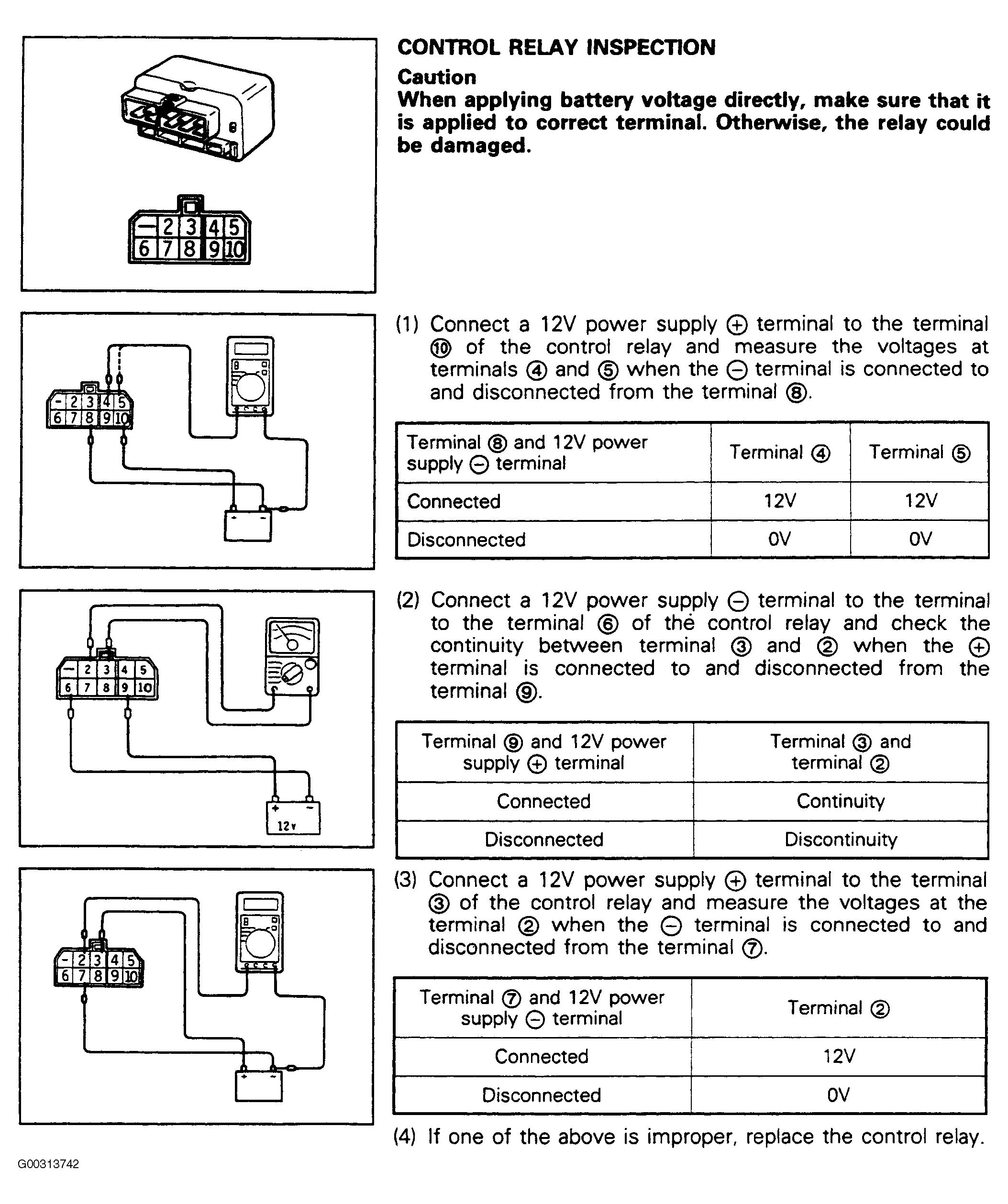

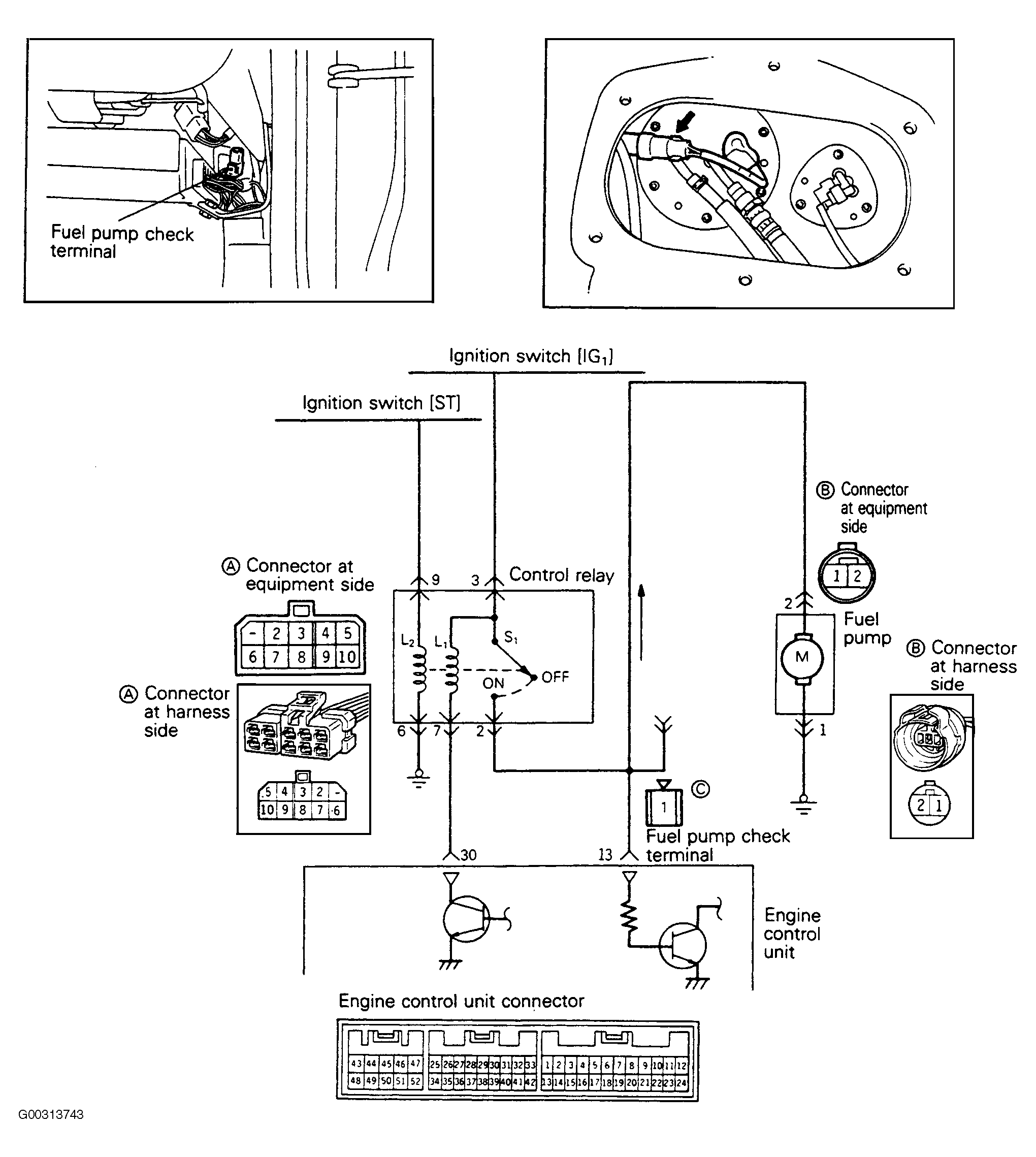

For control relay inspection, see Figure . For component locations and connector terminal identification, see Figure .
