Control Valve Assembly: Disassembly

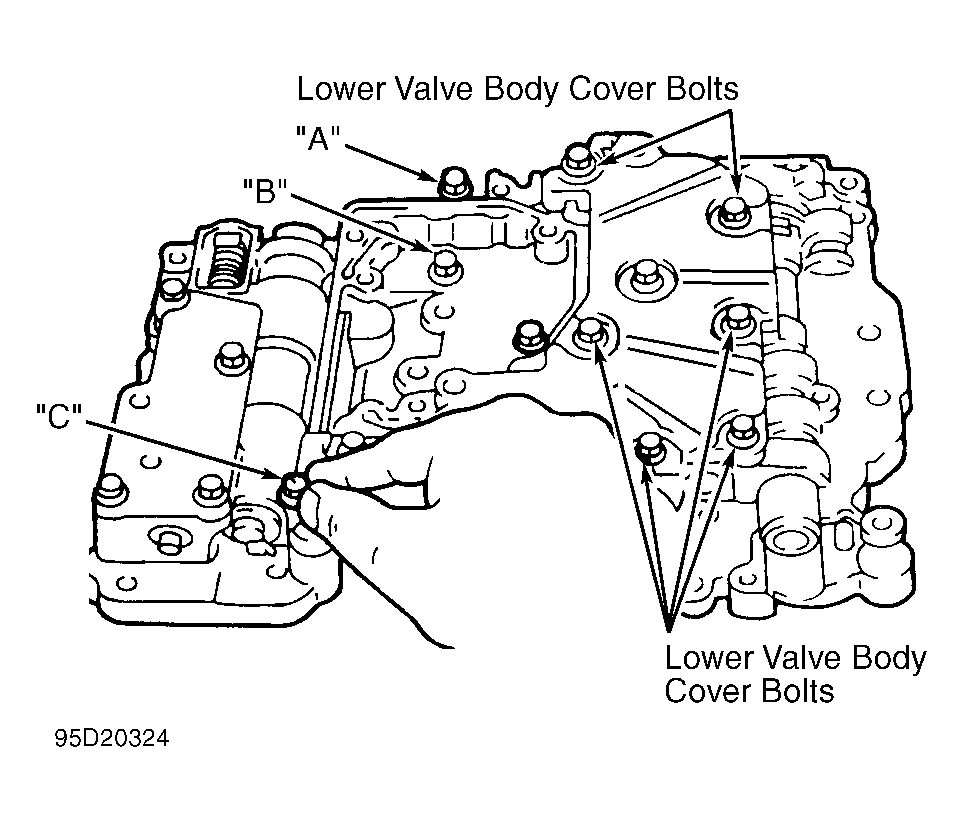

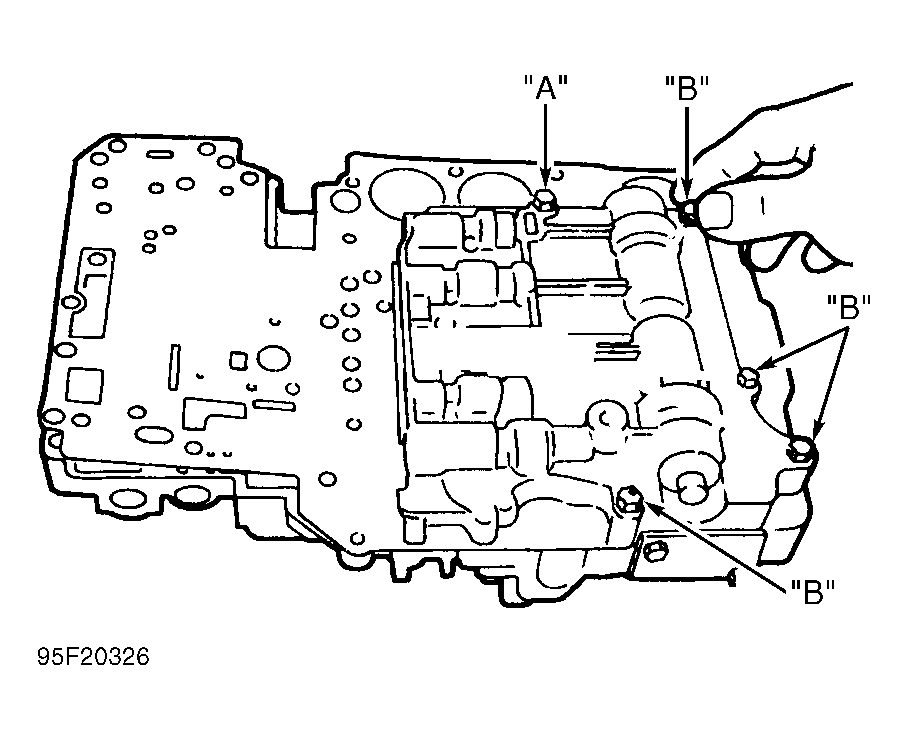

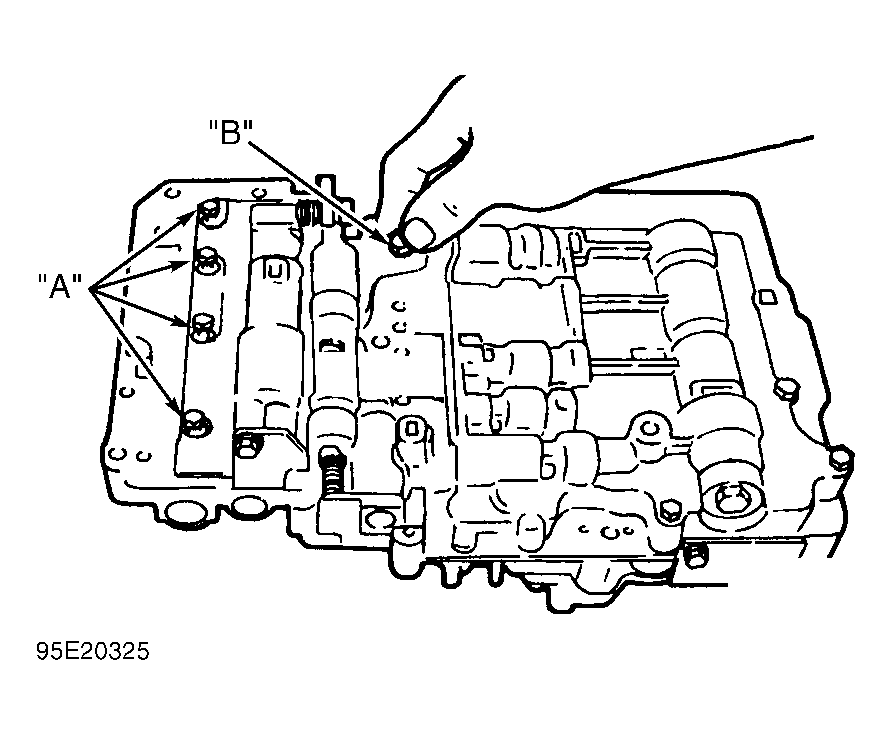

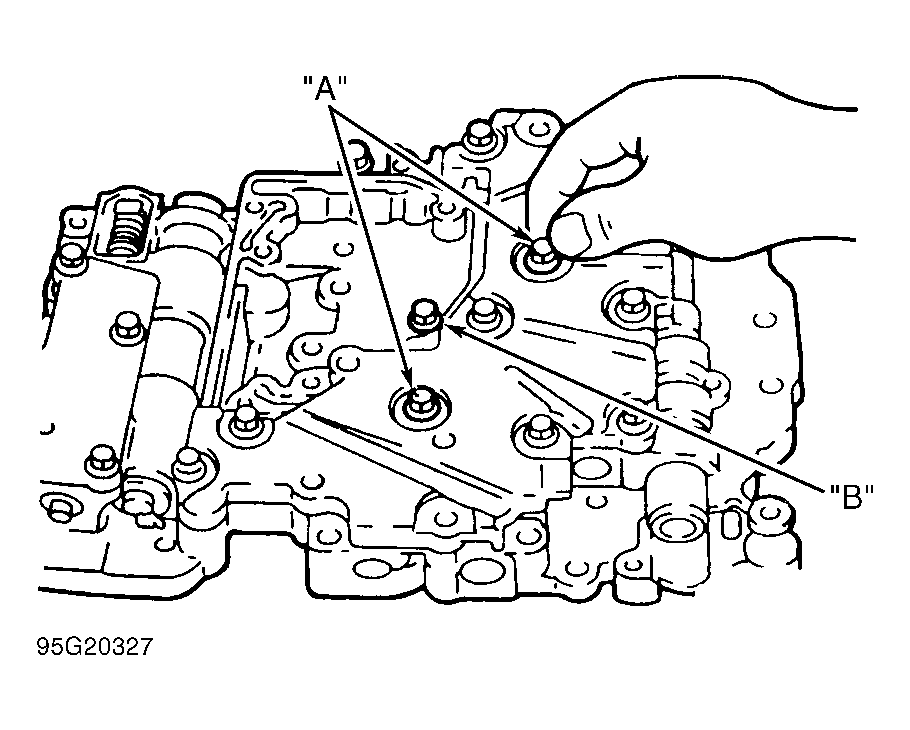

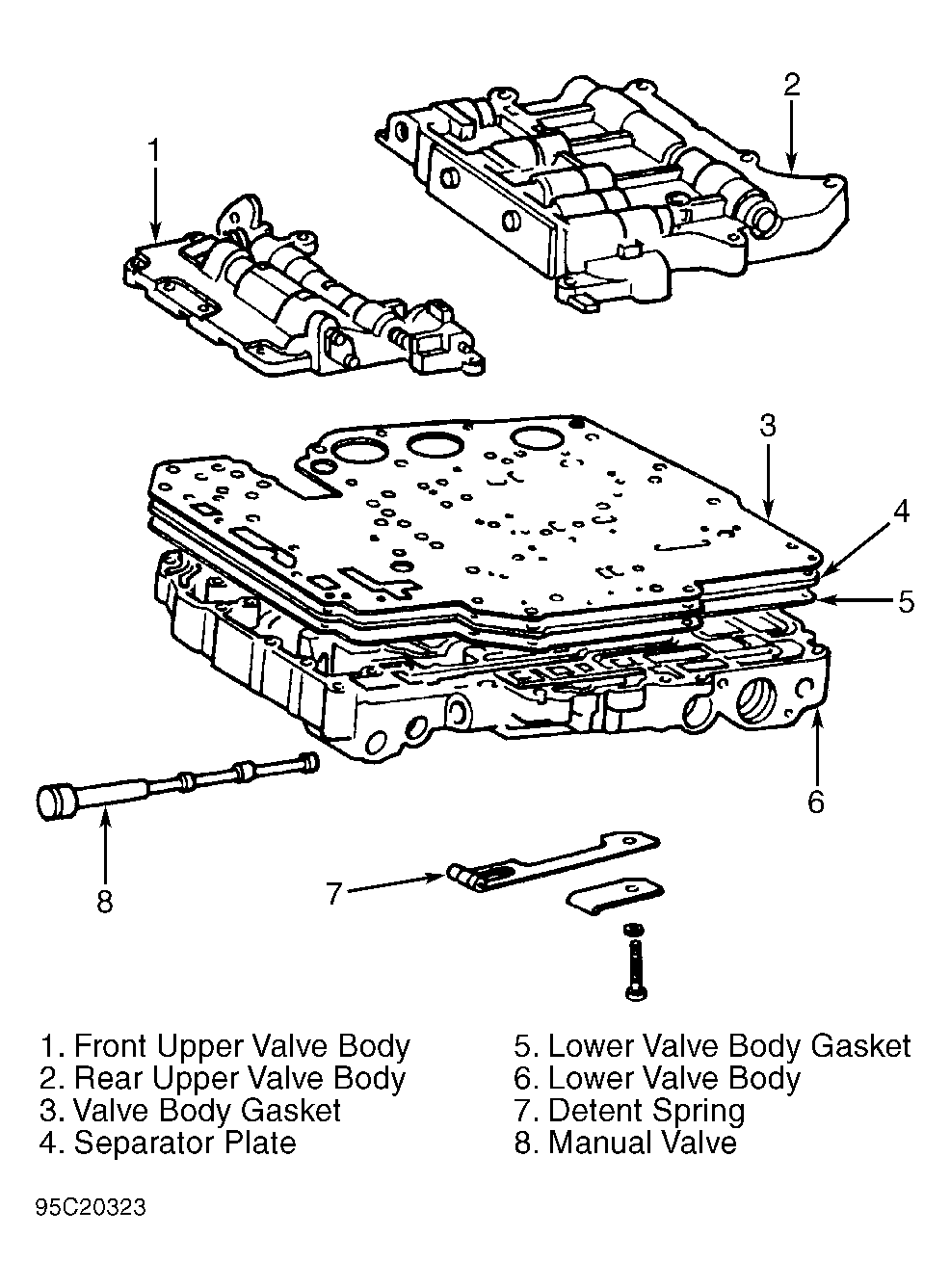

Remove detent spring and manual valve. See Figure . Remove 3 lower valve body bolts securing front upper valve body. See Figure . Invert control valve assembly and remove 5 bolts securing front upper valve body. See Figure . Remove front upper valve body. Remove 5 rear upper valve body bolts. See Figure . Invert control valve assembly and remove 3 bolts securing rear upper valve body. See Figure . Remove rear upper valve body. Remove valve body gasket, separator plate and lower valve body gasket. See Figure . DO NOT  drop check valve and ball.
