Harness Inspection

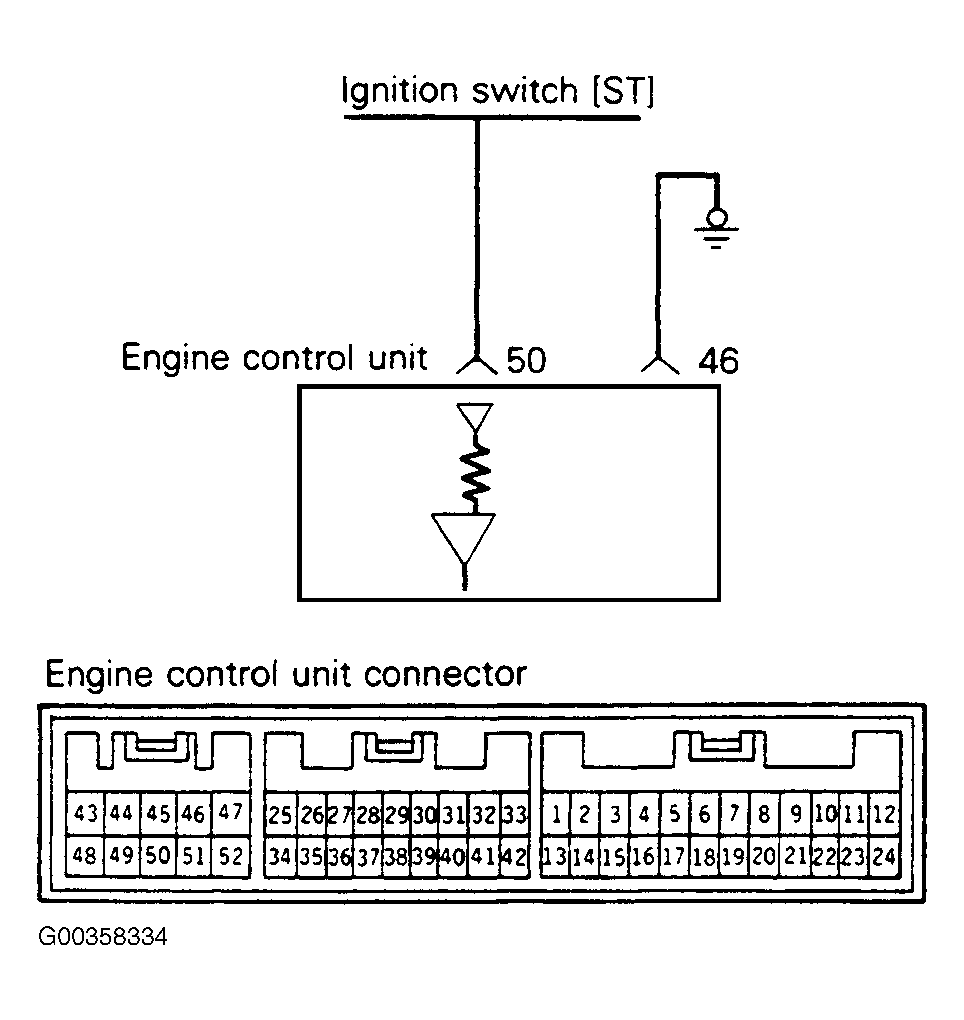

For harness inspection, see Fig 1 . For connector terminal identification, see Figure .

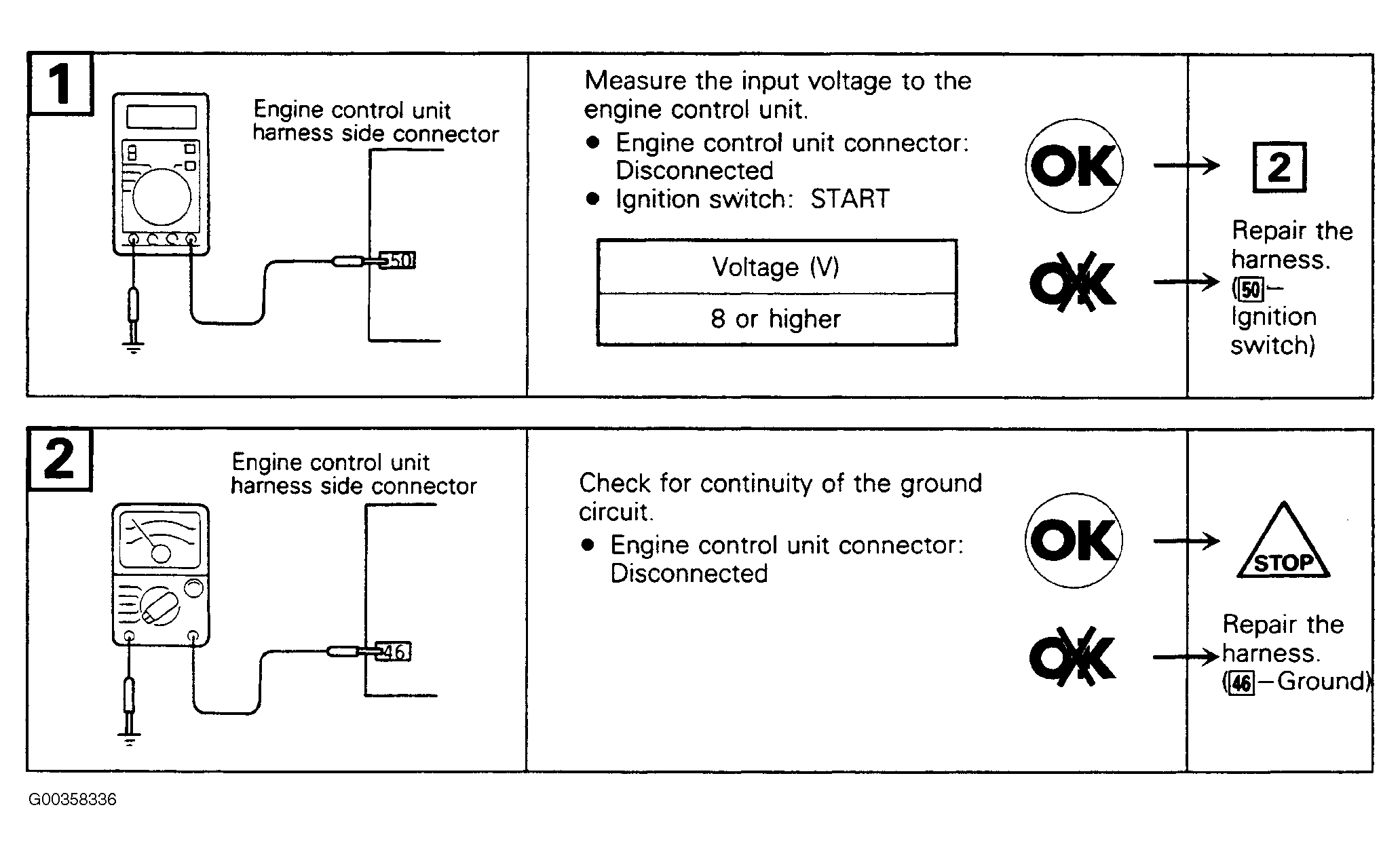

Fig 1: Ignition Switch-ST Harness Inspection (M/T)
G00358336Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
