Harness Inspection

For harness inspection, see Fig 1 . For component locations and connector terminal identification, see Figure .

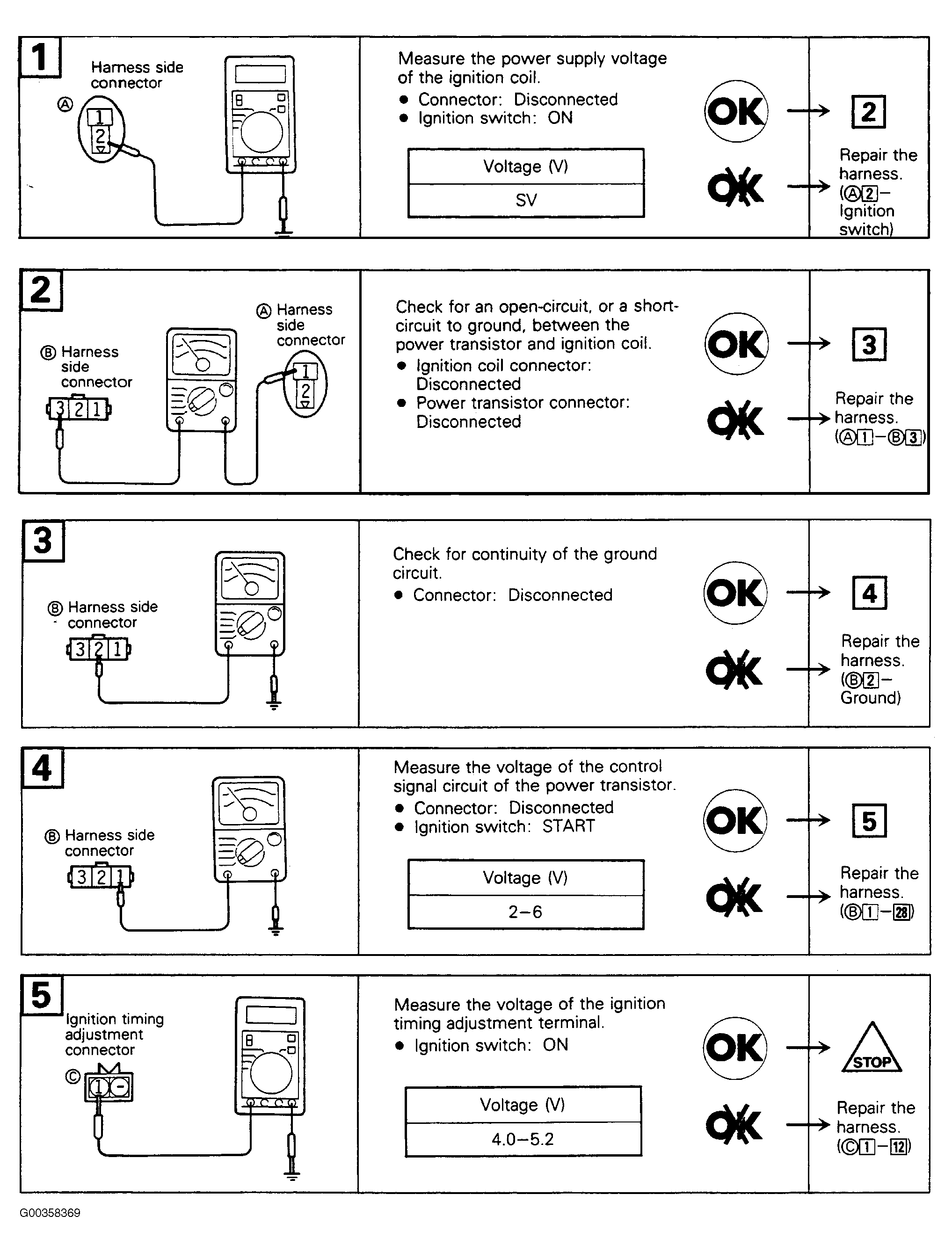

Fig 1: Ignition Coil & Power Transistor Harness Inspection
G00358369Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
