Disassembly & Reassembly

NOTE: See Fig 1 for removal procedures. For installation procedures, reverse removal steps.

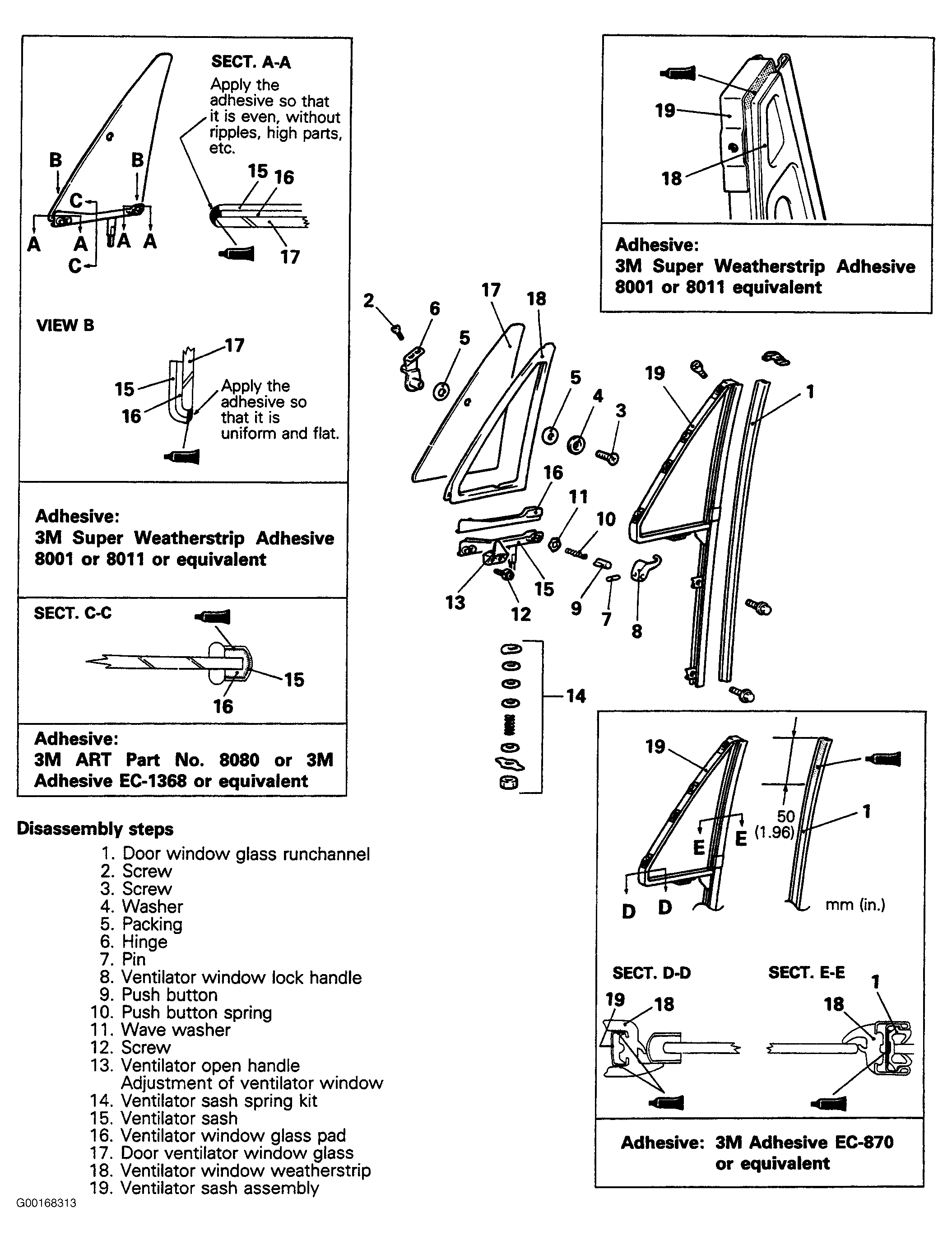

Fig 1: Disassembling & Reassembling Ventilator Window

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
